Component Removal
3-18
#826498 - Revision B - December, 2016
Electrode
To remove the electrode, first remove the bottom base
enclosure, then (See Figure 3-34):
Remove the electrode wire from the electrode.1.
Use a 18 mm open end wrench or crescent wrench2.
to remove the hex nut from the electrode mount.
Pull the electrode mount and electrode up through3.
the pan.
Pan
To replace the pan, first remove the bottom base1.
enclosure, then:
Remove the venturi/elbow assembly. 2.
Remove the regulator. 3.
Remove the gas valve/display board assembly, and4.
the electrode.
Extract the top two screws from the front panel and5.
remove the entire frame assembly.

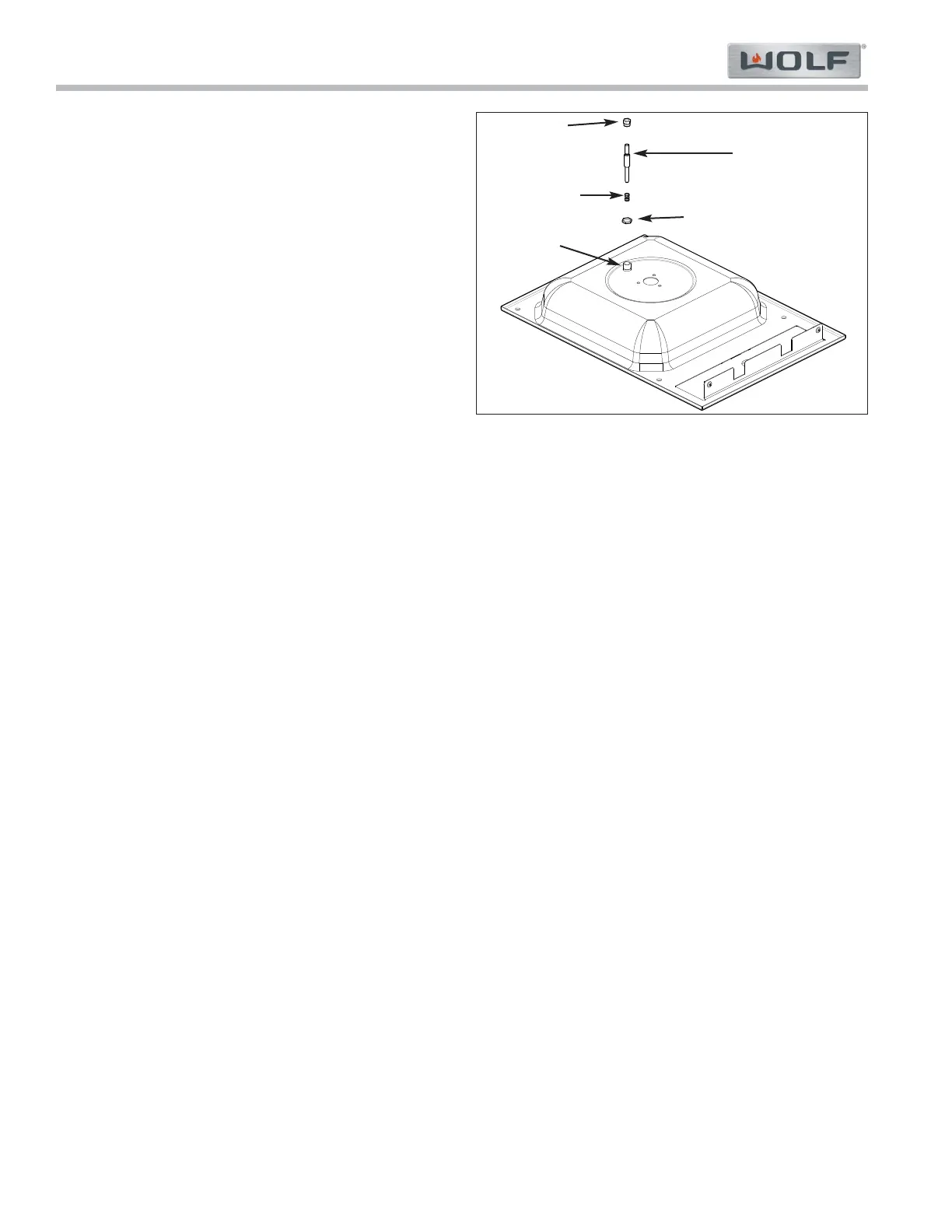

Figure 3-34. Electrode
Electrode
Electrode
Mount
Bushing
Spring
Hex Nut
