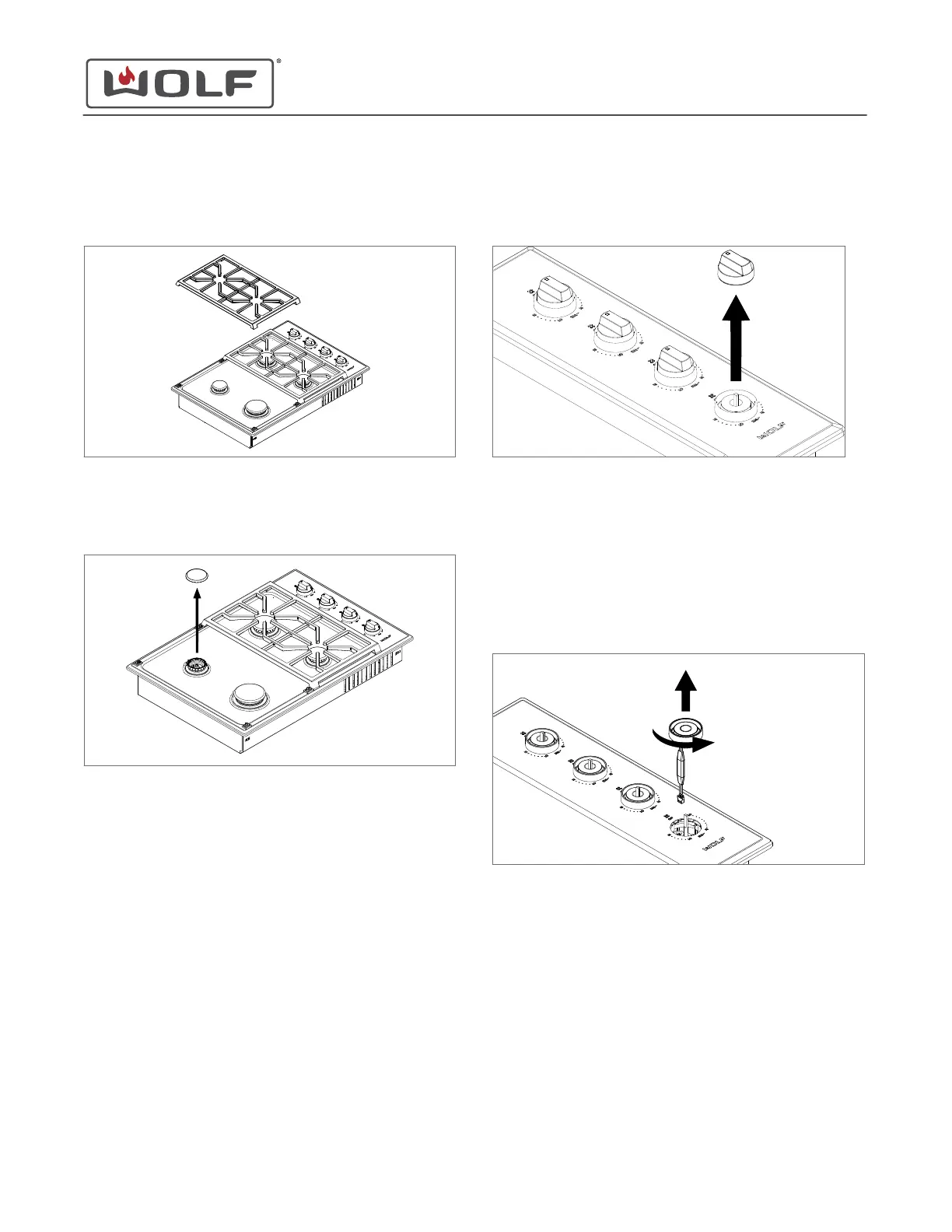

Remove All Burner Grates
Lift all burner grates from the unit.
Remove All Burner Caps
Remove all burner caps from the burner assemblies.
Uninstall the Unit
Remove the unit from the installation.
Remove All Knobs
Pull all of the knobs away from the unit.
Remove All Bezels
To remove each bezel:
1 Twist the bezel 90° counterclockwise.
2 Pull the bezel from the pan.
3 Disconnect the bezel from the light wire harness.
4 Remove the bezel from the unit.
Remove All Burner Assemblies
To remove each burner assembly:
1 Use a T-15 Torx bit to remove the screws holding the burner
assembly to the orifice holder.
2 Lift the burner assembly from the burner pan.
3 Remove the electrode wire from the igniter.
