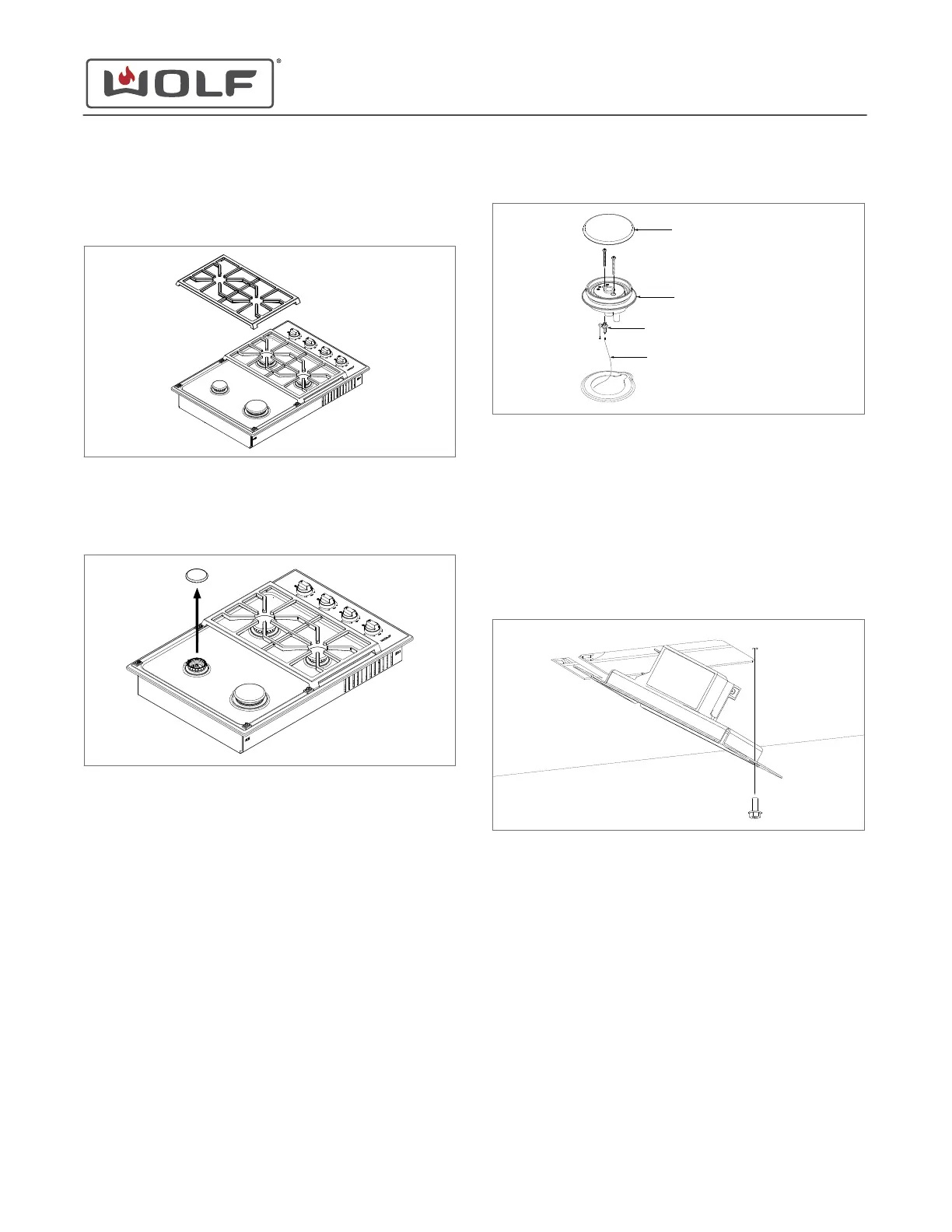

Remove the Burner Grate
Lift the burner grate from the unit.
Remove the Burner Cap
Remove the burner cap from the burner assembly.
Remove the Burner Assembly
1 Use a T-15 Torx bit to remove the screws holding the burner
assembly to the orifice holder.
2 Lift the burner assembly from the burner pan.
3 Remove the electrode wire from the igniter.
4
Remove the burner assembly from the unit.
Burner Cap
Burner Assembly
Igniter
Electrode Wire
Remove the Electrode Wire
1 On the bottom of the unit, use a
1
/
4
" nut driver or socket to
remove the screw holding the igniter bracket to the burner
box.
2 Lower the screw side of the igniter bracket.
3 Disconnect the electrode wire from the spark module.
4 Remove the electrode wire from the unit.
ELECTRODE WIRE INSTALLATION
Install the Electrode Wire
1 Feed the electrode wire from the burner assembly opening
down to the spark module.
2 Anchor the electrode wire to the burner assembly.
3 Connect the electrode wire to the spark module.
4 Raise the igniter bracket into the burner box.
5 Use a Phillips screwdriver to install the screw through the
igniter bracket in the base of the unit.
