Wolf CG365P/S - Valve Switch Installation; Burner Valve Removal

Page 22

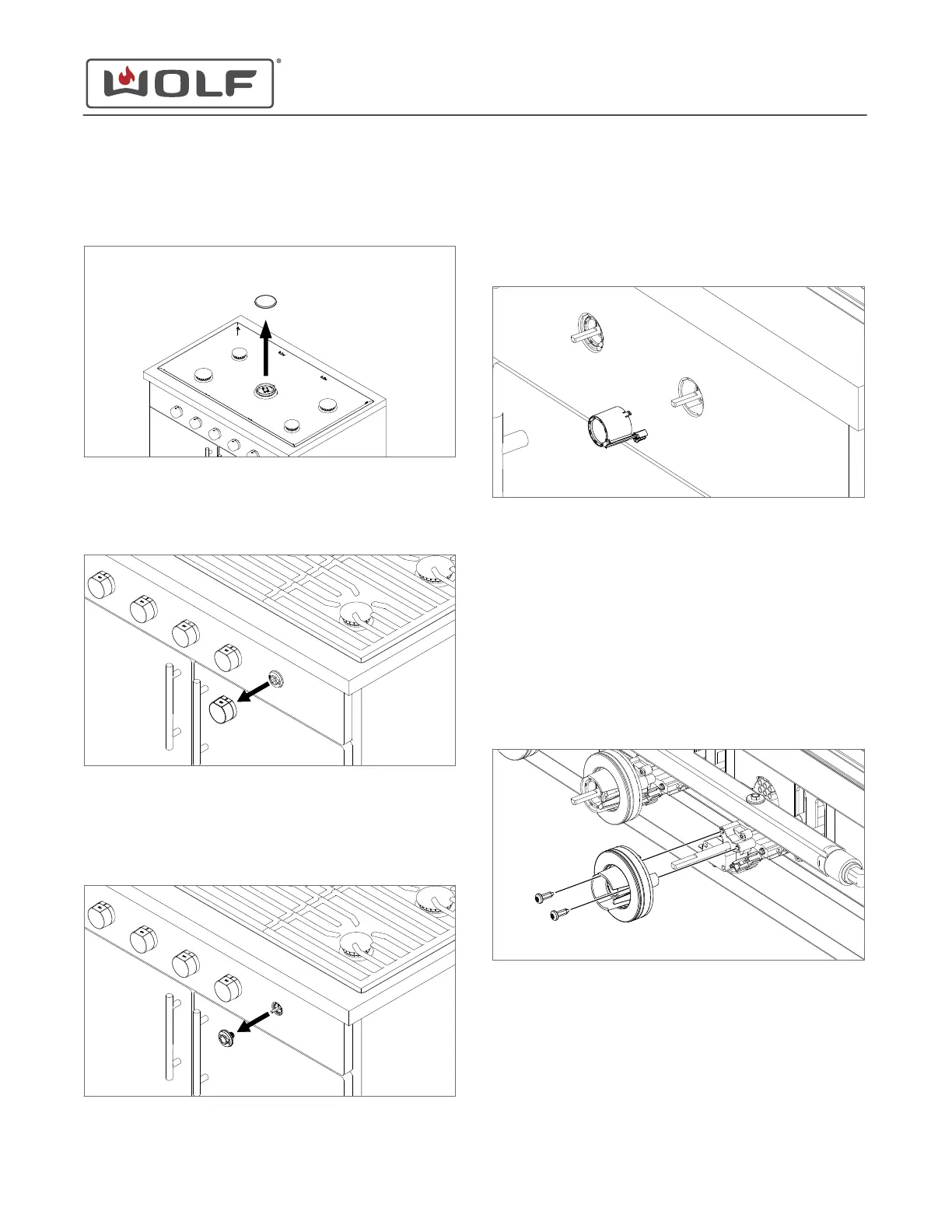

Remove All Burner Caps
Remove all burner caps from the burner assemblies.
Remove All Knobs
Pull all of the knobs away from the unit.
Remove All Bezels
To remove each bezel:
Use a
3
/
4
" socket to remove the bezel from the unit.
Remove the Light Module
1 Pull the light module forward out of the receptacle.
2 Disconnect the AC-DC rectifier wire connector from the light
module.
Uninstall the Unit
Remove the unit from the installation.
Remove the Receptacle
1 Use a Phillips screwdriver to remove the screws from the
receptacle.
2 Remove the receptacle from the burner valve.
TIP: The spacer(s) typically remain attached to the receptacle.
Remove the Valve Switch
1 Use a Phillips screwdriver to remove the color-coded screw
from the switch.
2 Lift the switch from the valve.
3 Remove the black wire from the normally-open (NO)
terminal.
