Steamer Module

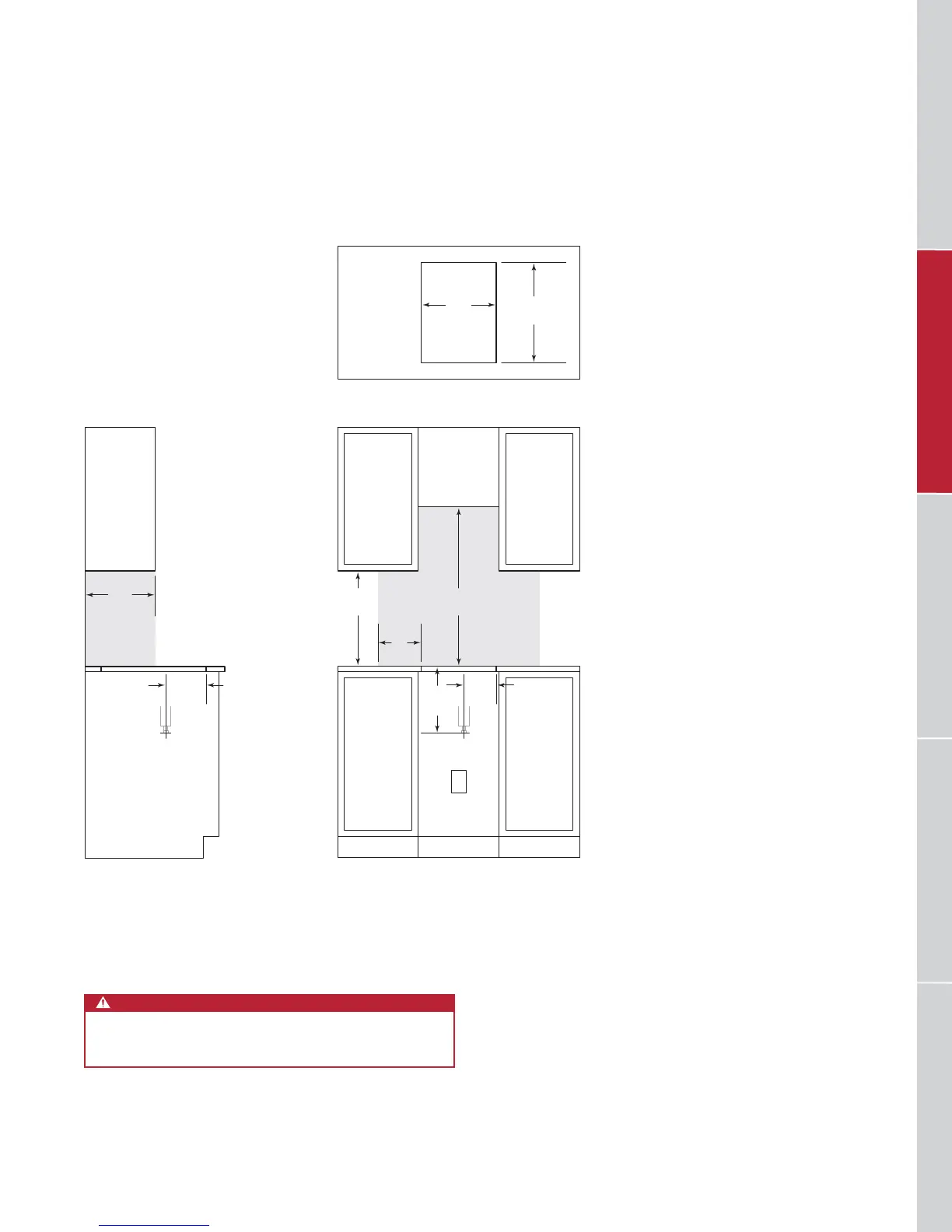

STANDARD INSTALLATION
WOLF INTEGRATED MODULES
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
FRONT VIEWSIDE VIEW
COUNTERTOP CUT-OUT
13"
(330)
18"
(457)
7"
(178)
E
30"
(762)
7
5
/8"
(194)
6"
(152)
12
3
/8"
(314)
DRAIN
OUTLET
19
1
/2"
(495)
2
1
/2" (64) min
2
1
/2" (64) min
14"
(356)
WARNING
The steamer module must be installed at least 15" (381)
from a fryer module.
