Gas Range
INSTALLATION
12"
(305) GAS
5"
(127)
2" (51)
7
3
/4" (197)
5
3
/4"
(146)
12"
(305)
10" (254)

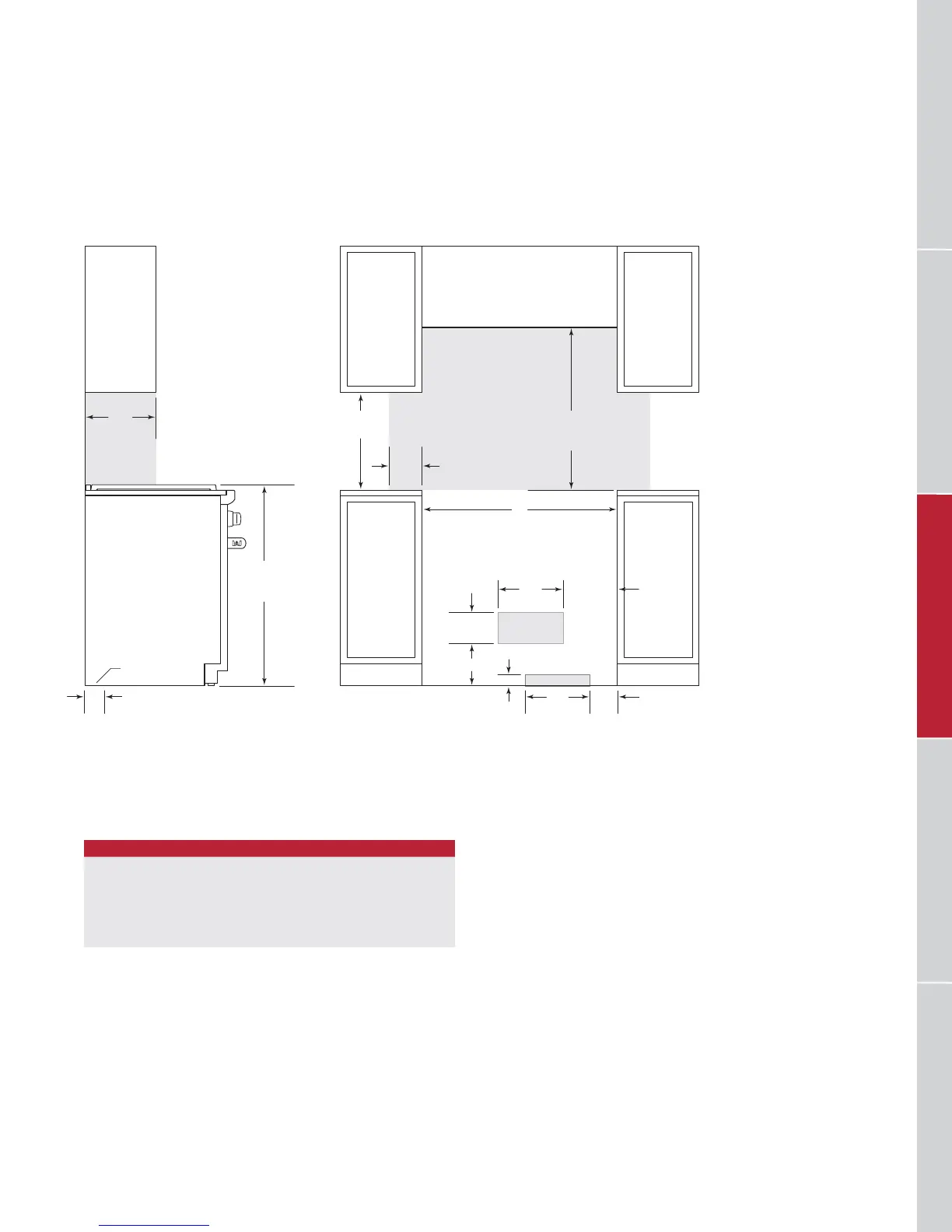

FRONT VIEWSIDE VIEW
*Without ventilation hood, 42" (1067) minimum clearance countertop to combustible materials, charbroiler and GR488 require non-combustible materials.
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
For island installation, 12"
(305) minimum clearance back of range to combustible rear wall above countertop.
13"
(330)
18"
(457)
6"
(152)
3"
(76)
LOCATION OF GAS AND
ELECTRICAL EXTENDS
ON FLOOR
37" (940)
TO COOKING
SURFACE
W
OPENING WIDTH
30" (762) TO 36" (914)
TO BOTTOM OF
VENTILATION HOOD*
E
G
OPENING WIDTH
GAS RANGE W
30" Model 30" (762)
36" Model 36" (914)
48" Model 48" (1219)
60" Model 60
1
/4" (1530)
