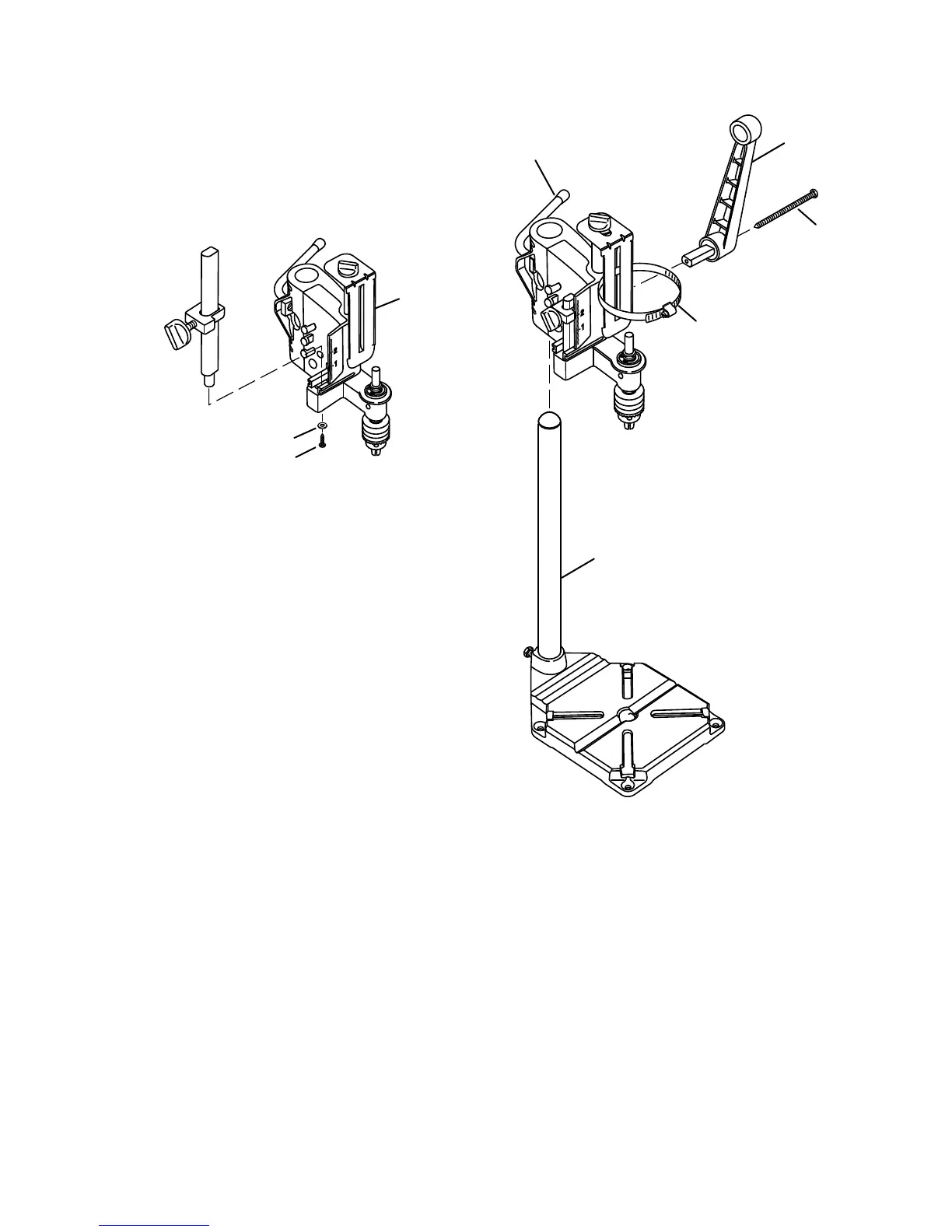

6. Insert quick-release clamp (F) through
adjustment bracket. Position clamp
behind outer two ribs and in front of
middle rib of bracket. See Figure 5.
7. Align shaft on handle (E) with slot in
head assembly. Install handle facing
up. Secure handle with handle screw
(P). See Figure 5.
8. Slide head assembly onto post (B).
Secure head assembly to post by
tightening adjustment handle (D).
B
E
D
P
F
Figure 5
Figure 4
C
M
N
5. Slide depth stop assembly into head
assembly (C) and secure with screw
(M) and washer (N). See Figure 4.
