Wolfcraft 4525 - Page 5

5

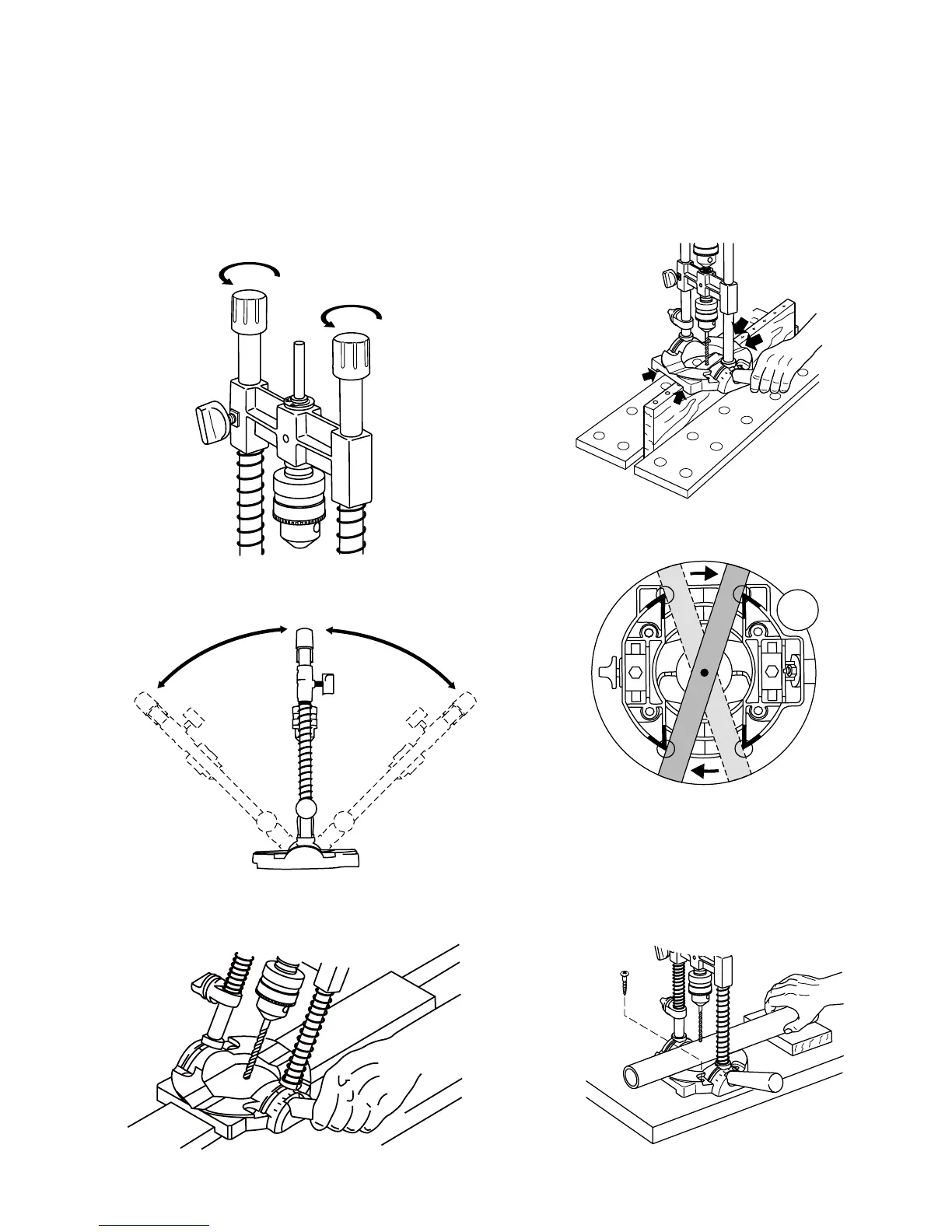

Angle Drilling
Loosen caps on both guide bars (See Figure
5) and rotate guide bars to align the index
mark on both bar holders to the desired angle
(See Figure 6) reference marks on the base
plate. Tighten caps and drill the hole with the
Drill Guide flush with the work piece. (See
Figure 7.)
Figure 5
FIG 5
0˚ - 45˚
0˚ - 45˚
Figure 6
Figure 7
Edge Drilling
Place the Drill Guide on the edge of the work
piece to be drilled. (See Figure 8.) Rotate the
base plate clockwise until sides of work piece
contact the base plate. (See Figure 9.) The
drill is now centered on the edge.
FIG 10
A
A
A
A
Figure 8
A
Figure 9
Figure 10
Round Stock Drilling
V-blocks are provided to hold round stock for
90° drilling. (See Figure 10.)
