WolfPack HDTVIPM925 - Page 5

5
*When it works as Receiver, HDMI IN is not function
N(HDMI OUT)
When it works as Transmitter, for HDMI Loop out
K(AUDIO IN)
For the 3.5mm audio embedded in
J(AUDIO OUT)
For the 3.5mm audio de-embedded out
I/H(Control ports)
1*RS485(BGA)phoenix connector
1*RS232(RGT) phoenix connector
1*Replay(+ - 5v) phoenix connector
1* I/O(IO1, IO2)phoenix connector
G(MOUSE/PC)
When it’s work as Transmitter, this port will connect to host
When it’s working as Receiver, it’s for Mouse connection
F(Keyboard/NC)
*When it’s work as Transmitter, this port is not functional
When it’s working as receiver, it will be for keyboard connection

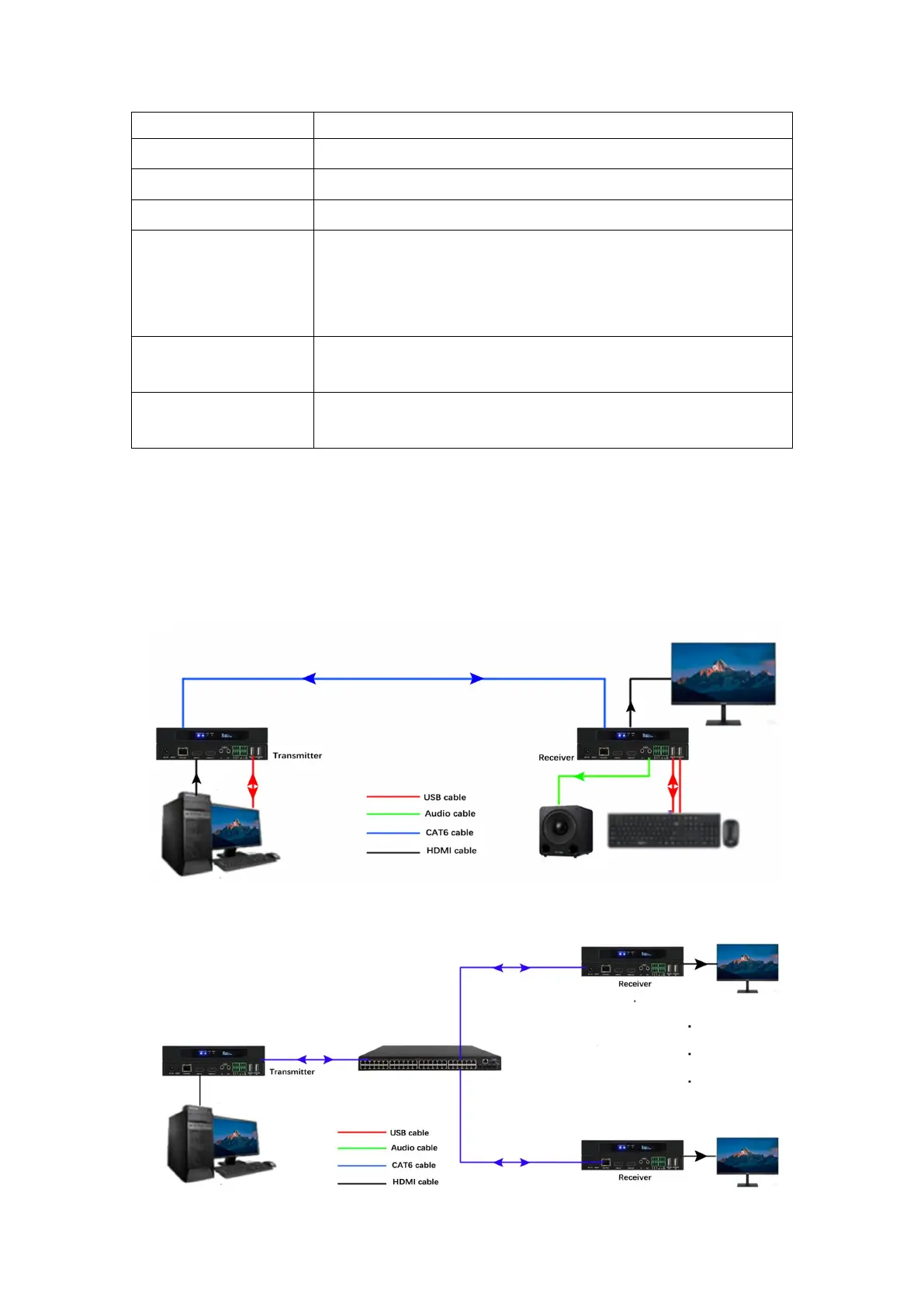

6. Equipment Connection Diagram
Working as Extender, one to one
Working as Distribution, one to many
