provided. Make sure that light lenses are in the
correct position in relation to direction of equipment
travel: amber lenses on the outside, red lenses on
the inside facing rear of shredder.
3.
Install light bracket on end of shredder using 1/2
NC x 1-1/2" hex bolts, washers and nuts (four
each) in slots 3 and 4 on top of end sheet.
4.
Plug ends of wiring harness into corresponding
plugs of the light units (Note: left side of wishbone
harness is labeled “Left”).
5.
Run wiring harness along top of shredder and
secure with enclosed adhesive-backed clamps (5)
approximately every two feet.
6.
Connect 7-pin connector of wiring harness to
tractor and test all light functions before actual use.

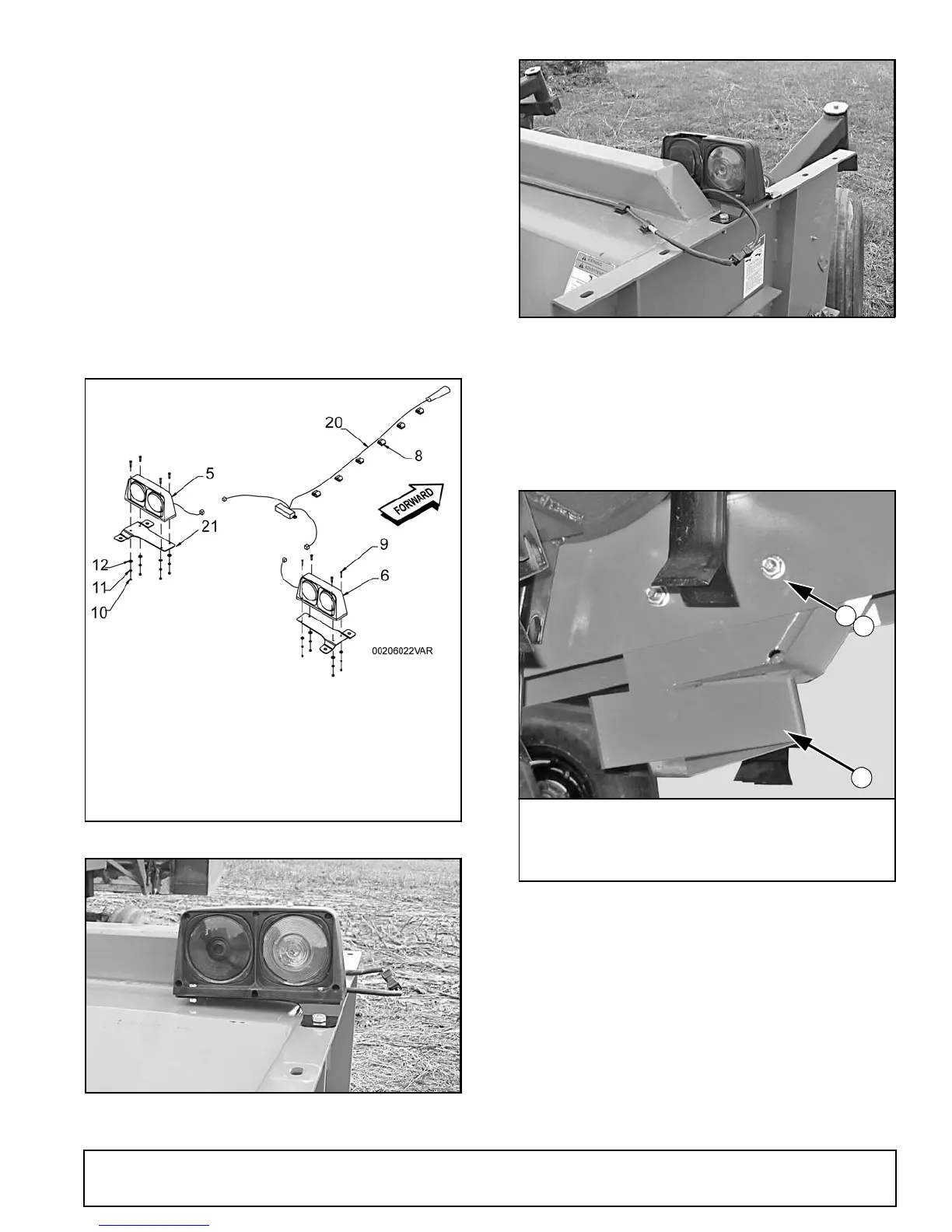

Figure 49
. Safety Light Kit Diagram (Non-End Tow)
Figure 50
. Safety Light Installed - Rear View
Figure 51
. Safety Light Installed - Front View
Install Center Deflector
Slide deflector (1) between shredder center channel
with the point forward.
Secure into position using four 1/2 NC x 1-1/4 carriage
bolts (2) and flange lock nuts (3).
Figure 52
. Center Deflector Installed
5. Dual lamp, 4-pin LH
6. Dual lamp, 4-pin RH
8. Clamp, adhesive-backed
9. 1/4 NC x 1" Hex bolt
10. 1/4 NC Hex nut
11. 1/4" Lock washer
12. 1/4" Flat washer
20. Wiring harness
21. Dual light bracket
1
2
3
DP3
1. Center deflector
2. 1/2 NC x 1-1/4 carriage bolt
3. 1/2 NC Flange lock nut
