Woods S15CD - Page 63

Parts 63
MAN0506 (Rev. 9/7/2011)
CENTER CUTTER KIT PARTS LIST
CENTER DEFLECTOR (OPTIONAL)
REF PART QTY DESCRIPTION
1 1024671 1 Blade hub
2 1016161 1 Motor housing
3 1024674 1 Blade, .31 x 2.50 x 13.31 dbl edge
4 1017719 1 Hydraulic motor
4A 1034644 1 Kit, shaft & bearing (includes shaft,
upper & lower bearings and key)
4B 1034635 1 Seal, 30 x 62 x 7
4C 1034636 1 Bearing, ball
4D 1034638 1 Seal, motor body
6 58125 * 6 9/16 NC Lock nut
7 58452 * 6 9/16 NC x 1-1/2 HHCS GR8
8 90503099 1 Elbow, 1-1/16 ORBM x 3/4NPTF
9 27309 1 Adapter, 3/4 NPTF x 3/4 NPTM
10 1023026 1 Elbow, 3/4 NPTM x 3/4 NPTF 90°
11 90506021 2 Hose, 40" x 3/4 NPTM x 3/4 NPTM
12 90503098 2 Tee, 3/4 NPTF
13 90501239 3 Nipple, 3/4 NPTM
14 90503097 2 Check valve, 3/4 NPT
15 90506016 2 Hose, 114" x 3/4 NPTM x 3/4 NPTM
16 90501303 2 Adapter, 1/2 NPTM x 3/4 NPTF
REF PART QTY DESCRIPTION
17 90519003 2 Quick coupler, male
18 90001115 * 2 3/8 NC x 1-3/4 HHCS GR5
19 12169 * 2 3/8 NC x 1-1/4 HHCS GR5
20 66 * 3 5/16 NF x 1-1/2 HHCS GR5
22 14350 * 4 3/8 NC Flange lock nut
23 1023035 1 Adapter, 1-5/16 ORBM x 3/4 NPTF
24 50530315 1 Decal, Hydraulic pressure
25 50530263 2 Decal, Rotating blades
29 301109 * 3 1/2 NC x 1-1/4 Carriage bolt
30 11900 * 4 1/2 NC Flange lock nut
31 25475 * 1 1/2 NC x 1 HHCS GR5
32 854 * 1 1/2 Flat washer
33 4378 * 3 5/16 Flat washer
34 2472 * 3 5/16 Lock washer
35 5283 * 2 5/16 NF Hex nut
36 1004695 2 Clamp, 1.94 dia Pipe
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION

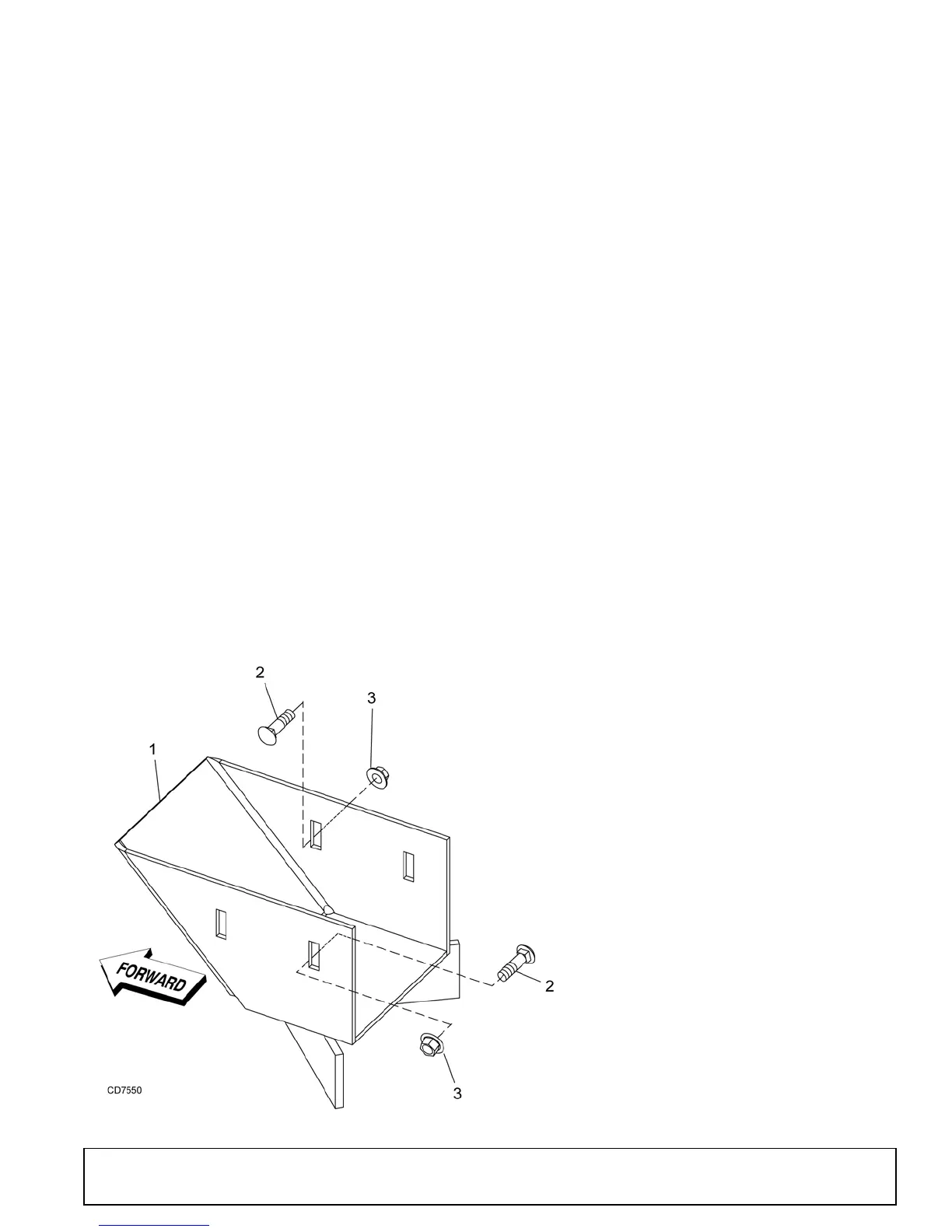

1 1016151 1 Center deflector
2 301109 * 4 1/2 NC x 1-1/4 Carriage bolt GR5
3 11900 * 4 1/2 NC Flange lock nut
* Standard hardware, obtain locally
(Rev. 10/1/2013)
