Woodsman RMF - Minimum Safe Installation Clearances

2

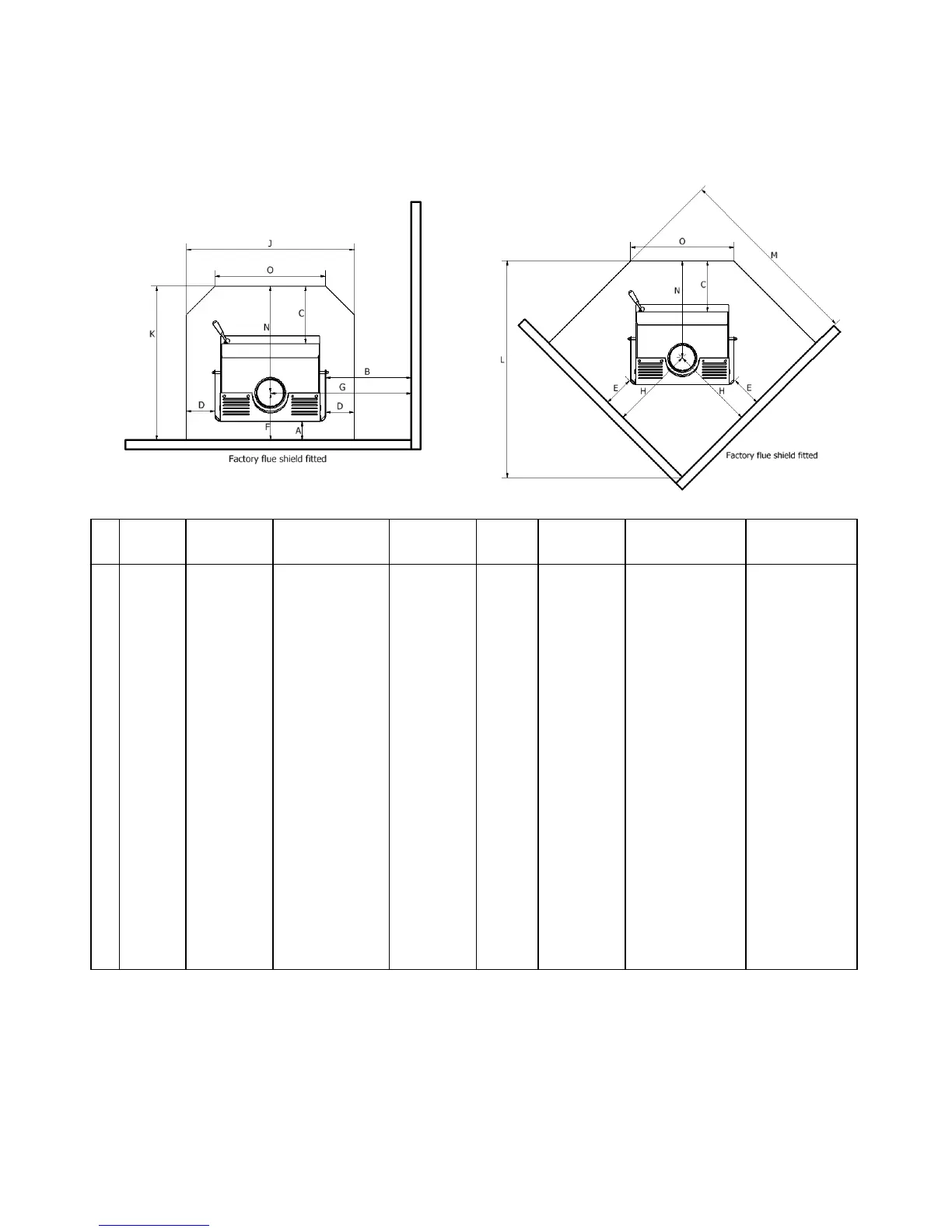

Minimum Safe Installation Clearances
BLAZE ECR MkII
MANHATTAN
& BOSTON MILFORD RMF RMF - RV STRONGMAN
TARRAS &
TARRAS-WB
A 200 100 150 210 125 N/A 300 160
B 250 450 300 285 500 500 *875 550
C 300 300 300 300 300 300 515 500
D 150 150 150 150 150 150 150 150
E 100 200 140 100 180 N/A 380 300
F 371 251 318 381 276 N/A 441 301
G 560 740 610 628 790 790 **1233 906
H 421 512 459 446 492 N/A 711 626
J 920 880 920 986 880 880 1015 1015
K 1038 807 986 1054 832 N/A 1364 1184
L 1264 1280 1318 1303 1252 N/A 1928 1769
M 1113 1110 1151 1164 1060 N/A 1616 1493
N 669 556 668 673 556 N/A 923 883
O 620 580 620 686 580 580 715 686
Table 1
All dimensions are given in millimetres .
*610mm with firebox side panels fitted.
**968mm with firebox side panels fitted.
FIG 1
FIG 2
