Worcester GR2300iW C

Replacement parts
Greenstar 2000 – 6 721 820 552 (2021/02)
72
10.14 Reattaching the casing on the side
▶ Align the side panel so that the underside can be guided along the
flange.
▶ Push the side panel towards the rear.
▶ Tighten the fixing screws.

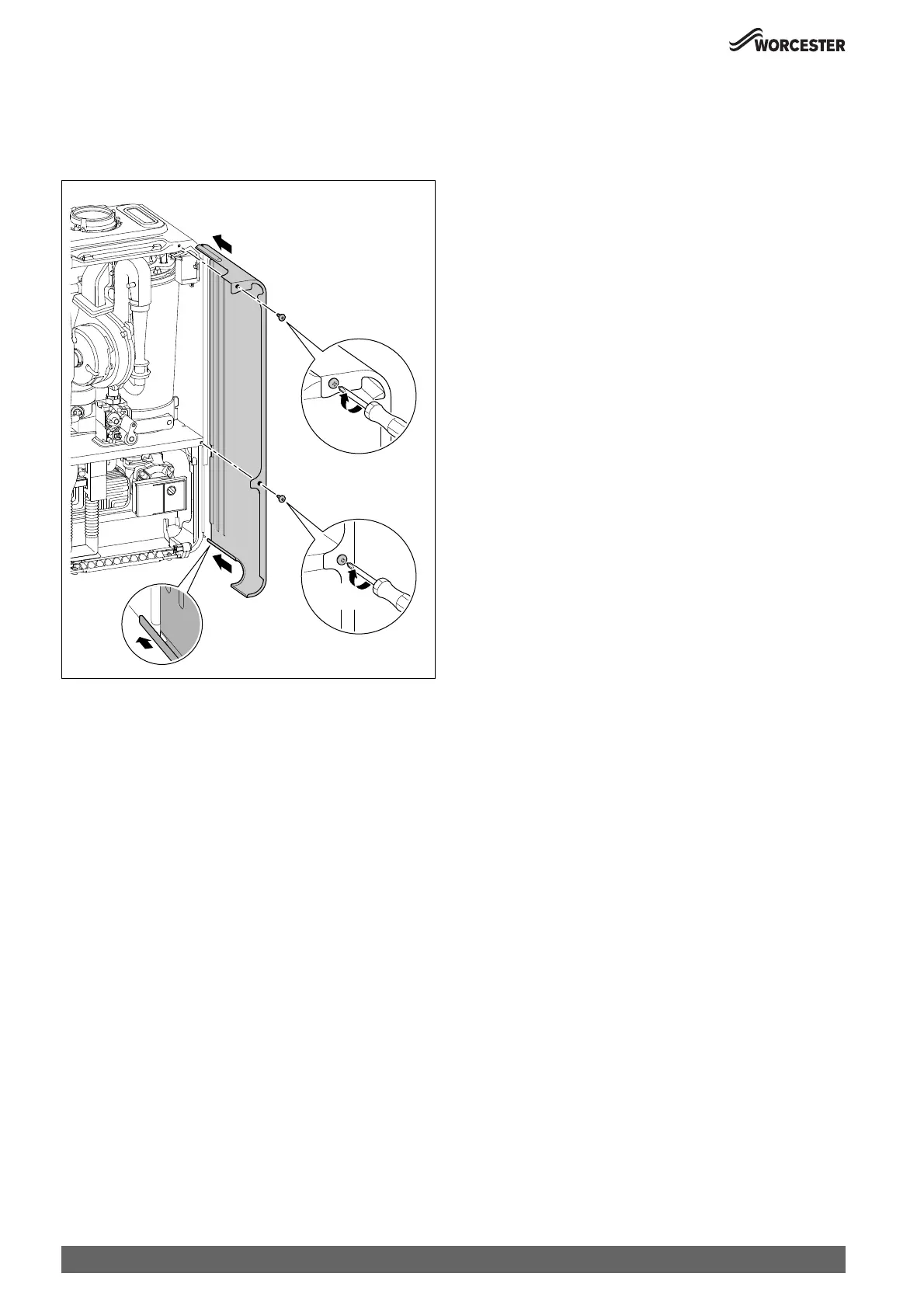

Fig. 104 Attaching the side panel
1.
1.
2.
2.
0010019239-001
