THE FOLLOWING SYMBOLS ARE USED ON THIS APPARATUS
Protective grounding terminal.
~ Alternating current/voltage
Hazardous live terminal.
Direct current/voltage.
The exclamation point within an equilateral triangle is intended to alert the user to he
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsurable "dangerous voltage" within the product's
enclosure that may be of sufficient ma gnitude to constitute a risk of electric shock to persons.
ON Denotes the apparatus turns on
OFF Denotes the apparatus turns off.
WARNING Describes precautions that should be observed to prevent the danger of injury
or death to the user.
CAUTION Describes precautions that should be observed to prevent danger of the apparatus.
risk of fire-replace fuse as marked.
IMPORTANT SAFETY INSTRUCTIONS
-Read these instructions.
-Keep these instructions.
-Heed all warnings..
-Follow all instructions.
-Do not use this apparatus near water.
-Clean only with a damp cloth.
-Do not block any of the ventilation openings.
-Do not install near any heat source such as radiator, heat registers, stoves, or other
apparatus that produce heat.
-Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has
two blades and a third grounding prong. The third prong are provided for your safety.
When the provided plug does not fit Into your outlet, consult an electrician for replacement
of the obsolete outlet.
To prevent the risk of fire or electrical shock, the apparatus shall not be exposed to
dripping moisture or splashing and that no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Please read the notes proceeded by the symbol ! with the special attention, as they
provide important safety information.
These servicing instruction are for use by qualified personnel only. To reduce the risk of
electric shock do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
CAUTION
!
!!
The apparatus should be placed on a solid surface with a minimum distance of 1m from
the back or side top plate to the wall and not in the following environments of cases:
Moist place;
Under direct radiation of sunlight or other strong heat radiation;
No air ventilation.
5A AC 250V
T

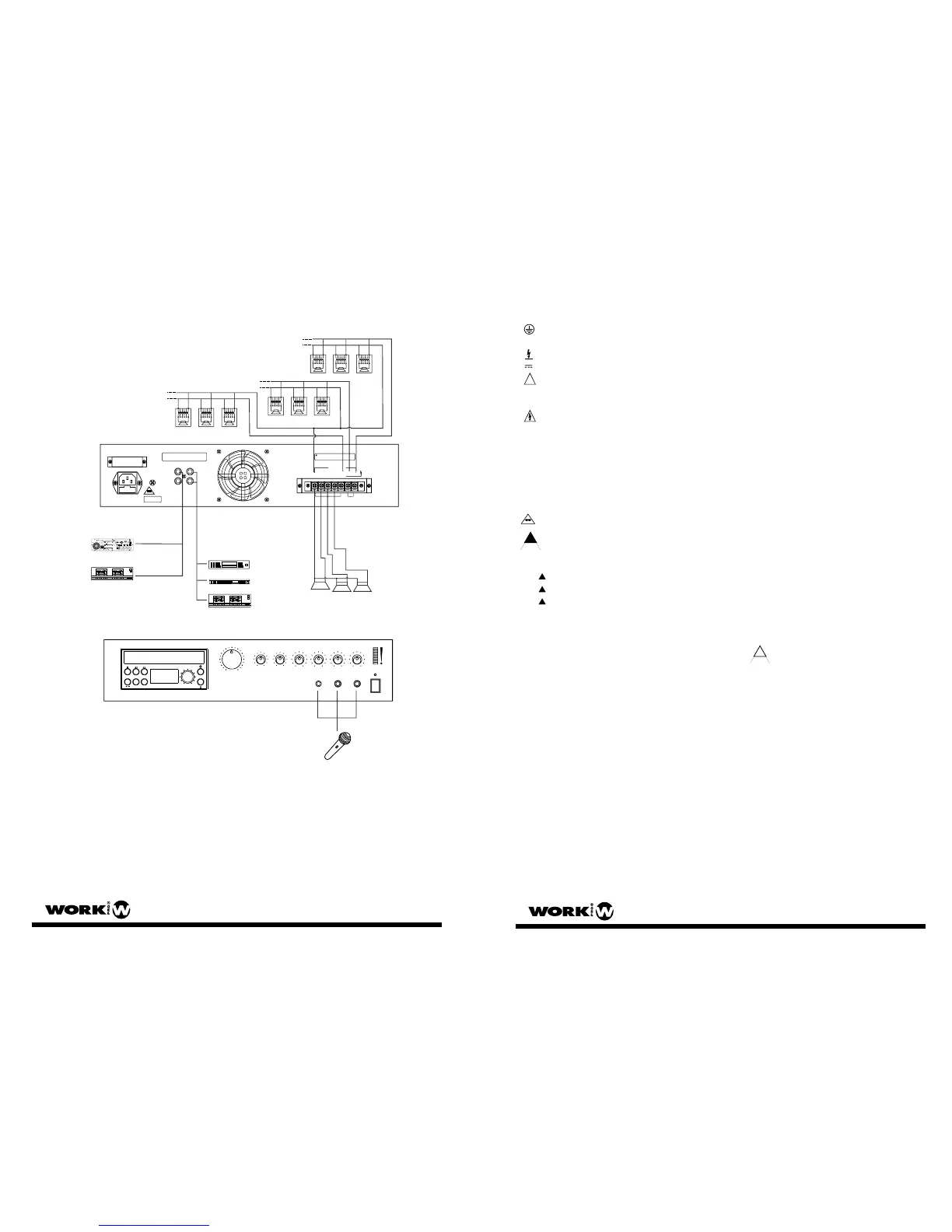

EJEMPLO DE POSIBLES CONEXIONES
Sintonizador AM/FM
Reproductor de CD
Pletina Cassette
70V0 70V 0 70V 0
25V
0 25V 0 25V 0
100V0 100V 0 100V 0
Amplific ad or o pc ional
DC24V
OUTPUT
-
+
COMCOM4WW
70V
100V
FM ANT
Z1COM Z2 Z3COMCOMCOM
Priority1W 8£
Tel. Paging
T R G
-
+
GND
LINE
230V~50Hz
CAUTION:
ELECTRIC SHOCK HAZARD
DO NOT REMOVE COVER.
REFER SERVICING TO
QUALIFIED PERSONNEL.
SEE INSTRUCTION MANUAL.
ON OFF
DC POWER
INPUT 1 INPUT 2 INPUT 3 INPUT 4
PHANTOM
24V
PHANTOM
24V
PHANTOM
24V
PHANTOM
24V
LINE LINE LINE LINEMIC MIC MIC MIC
BALANCED
1: for CD
2: for Tuner
3: for Tape
4: for AUX IN
1 2 3 4
R
L
PRE
OUT
MAIN
IN
Monitor
VOL.
TEL.
VOL.
LINE OUT
L R
F
E
U
S
F
U
S
E
E
S
U
F
DC FUSE
Use only with a 250V fuse
Grabador
RATED SUPPLY VOLTAGE:
115V~60Hz
L
R
L
R
LINE
OUT
AUX
100V70V 25V
4£ 8£ 16£
COM
OUT PUT
CAUTION:
ELECTRIC SHOCK HAZARD, DO NOT REMOVE COVER.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE-REPLACE ONLY WITH
SAME TAPE 3A 250V.
REFER SERVING TO QUALIFIED PERSONNEL SEE INSTRUCTION MANUAL.
NO-OUTDOOR USE.
DO NOT BLOCK ANY OF THE VENTILATION OPENINGS.
WARNING
INPUT: 115V~60Hz
AC FUSE: T 3A 250V
RATED INPUT: 260W
CLASS ¢ W IRE
RE-AP PLY THE TER MINAL CO VER AND FAS TEN THE S CREWS
CLASS ¢ W IRE
GND
3A AC 250V
T
Use only with a 250V fuse
POWER
COMPACT DISC PLAYER
OUTPUT
MIC-3 MIC-2 MIC-1
PL
TREBLE
BASS
AUX
MIC3
MIC2
MIC1
MASTER
100
-10 +10 -10 +10
PLAY
01
STOP B.SKIP/REW F.SKIP/FF
PLAY/P USEA PROG REPEAT
OPEN/CLOSE
LEVEL
0 10
PA 150 CD MP3 User Manual /Manual de Usuario Pag 16
PA 150 CD MP3 User Manual /Manual de Usuario Pag 1
To Next Page
