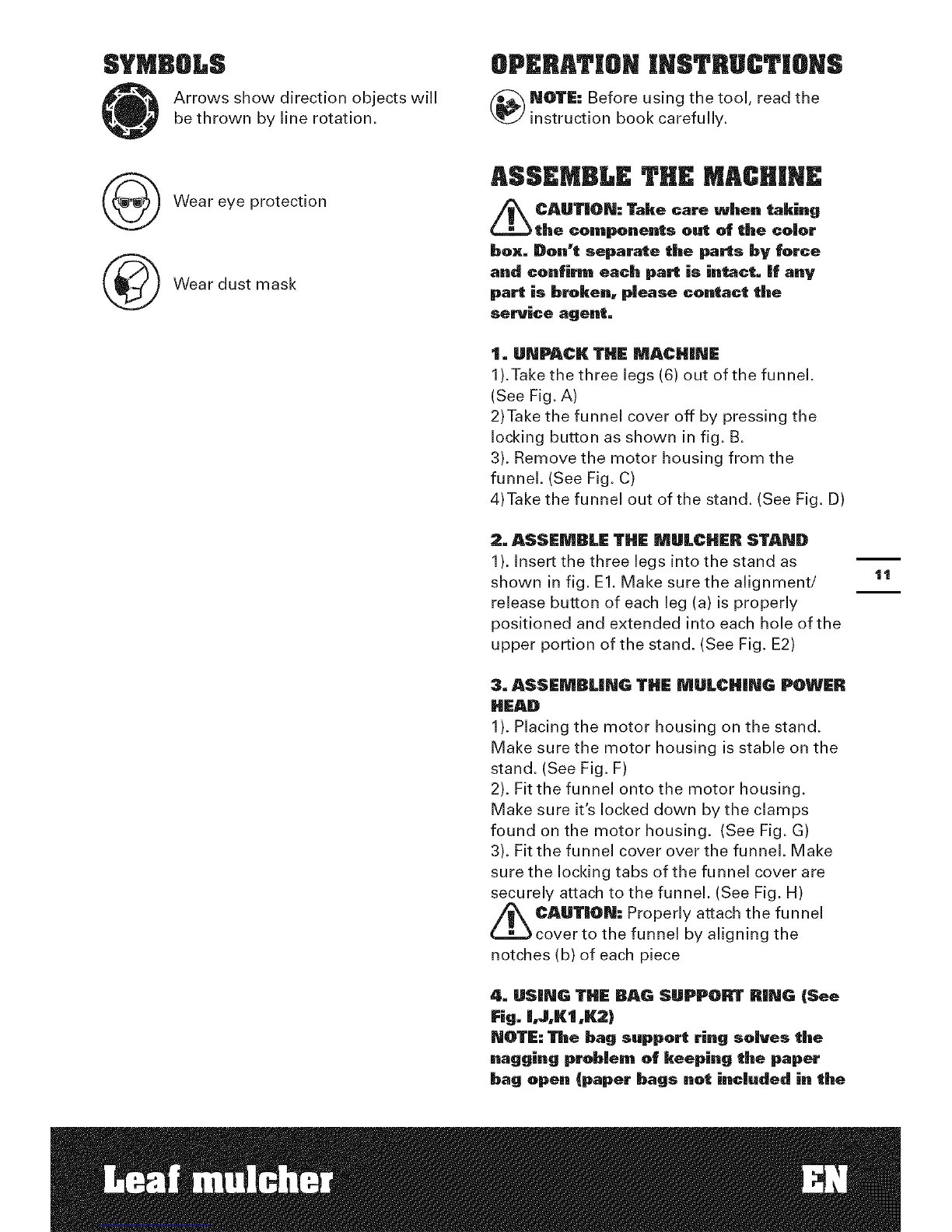

SYMBOLS
Arrows show direction objects will
be thrown by line rotation.
_ ear eye protection
Wear dust mask
OPERA?ION IHSTRUC?IONS
NOTE= Before using the tool, read the
instruction book carefully.
1. UNPACK THE UACHINE
1).Take the three legs (6) out of the funnel.
(See Fig. A)
2)Take the funnel cover off by pressing the
locking button as shown in fig. B.
3). Remove the motor housing from the
funnel. (See Fig. C)
4)Take the funnel out of the stand. (See Fig. D)
2. ASSEMBLE THE MULCHER STAND
1). Insert the three legs into the stand as
shown in fig. El. Make sure the alignment/
release button of each leg (a) is properly
positioned and extended into each hole of the
upper portion of the stand. (See Fig. E2)
3. ASSEMUUNG THE MULCHING POWER
HEAD
1). Placing the motor housing on the stand.
Make sure the motor housing is stable on the
stand. (See Fig. F)
2). Fit the funnel onto the motor housing.
Make sure it's locked down by the clamps
found on the motor housing. (See Fig. G)
3). Fit the funnel cover over the funnel. Make
sure the locking tabs of the funnel cover are
securely attach to the funnel. (See Fig. H)
_ AUTION: Properly attach the funnel
cover to the funnel by aligning the
notches (b) of each piece
4. USING THE UAG SUPPORT RING (See
Fig. I,J,K| ,K2)
NOTE: The bag support ring solwes the
nagging problem of keeping the paper
bag open (paper bags not included in the
