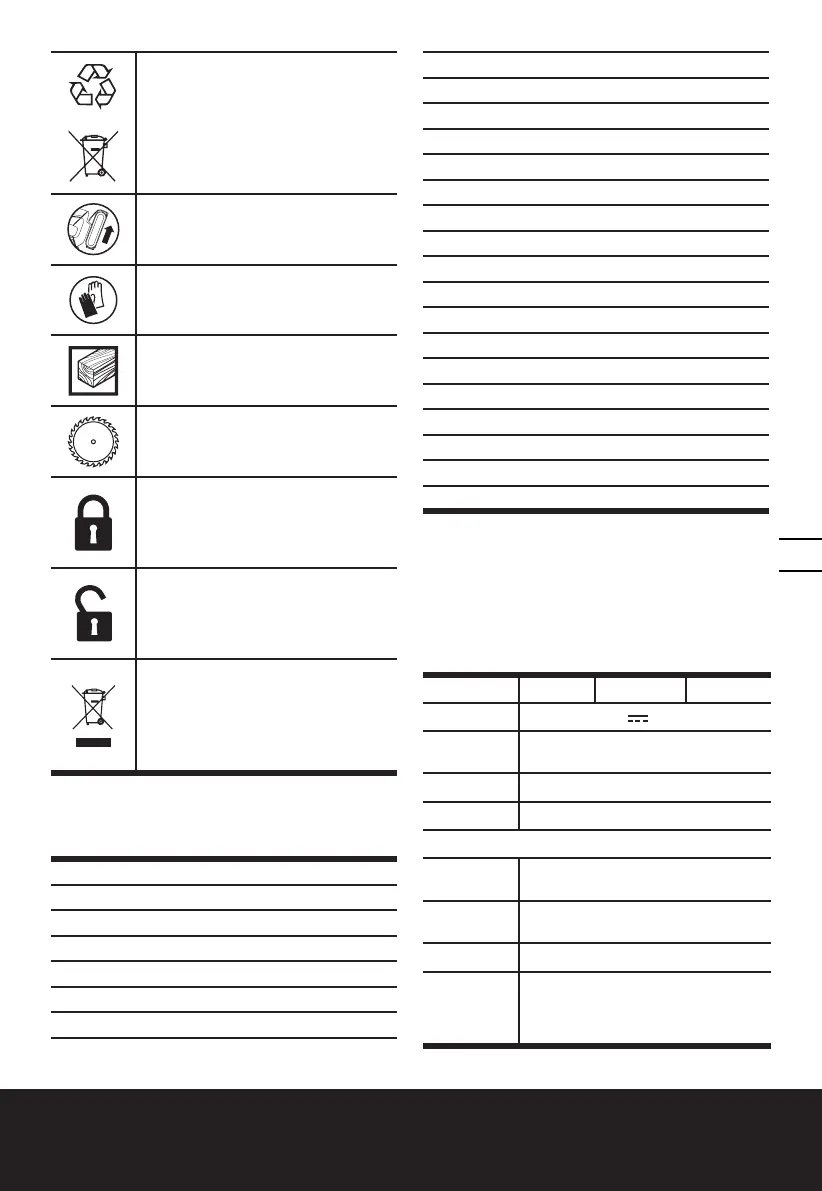

Cordless Circular Saw EN
11
Li-I on
Do not dispose of batteries, Return
exhausted batteries to your local
collection or recycling point.
Make sure the battery is removed
prior to changing accessories or
making any adjustments to the tool.
Wear protective gloves
Wood
Carbide tipped blade
Lock
Unlock
Waste electrical products must
not be disposed of with house-
hold waste. Please recycle where
facilities exist. Check with your local
authorities or retailer for recycling
advice.
COMPONENT LIST
1. SAFETY BUTTON
2. ON/OFF SWITCH
3. FRONT HAND GRIP
4. CUTTING MARK, 0°
5. CUTTING MARK,45°
6. MAIN-BASE PLATE
7. BASE PLATE BEVEL LOCK KNOB
8. BASE PLATE BEVEL ANGLE SCALE
9. HEX KEY
10. BATTERY PACK*
11. BATTERY PACK RELEASE BUTTON*
12. FIXED GUARD
13. DUST EXTRACTION OUTLET
14. LOWER GUARD LEVER
15. EXACTRACK
TM
SUB-BASE PLATE
16. SAW BLADE
17. OUTER FLANGE
18. BLADE BOLT
19. LOWER BLADE GUARD
20. SPINDLE
21. INNER FLANGE
22. CUTTING DEPTH SCALE (See Fig. E)
23. CUTTING DEPTH LOCK KNOB (See Fig. E)
24. SWITCH LEVER (See Fig. E)
25. SPINDLE LOCK BUTTON (See Fig. K2)
*Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type Designation WX530 WX530.1 WX530.9
(5-designation of machinery, representative of
saw)
WX530 WX530.1 WX530.9
Rated voltage 20 V Max**
No load
(rated) speed
4900/min
Blade size 165 mm
Arbor size 20 mm
Cutting capacity
Cutting
Depth at 45°
39 mm
Cutting
Depth at 90°
55 mm
Bevel capacity 0-50
0
Machine
weight
(without
battery)
2.3 kg
