CBCSM1 CSM1 Current Sensor Connecting Block
FEATURES

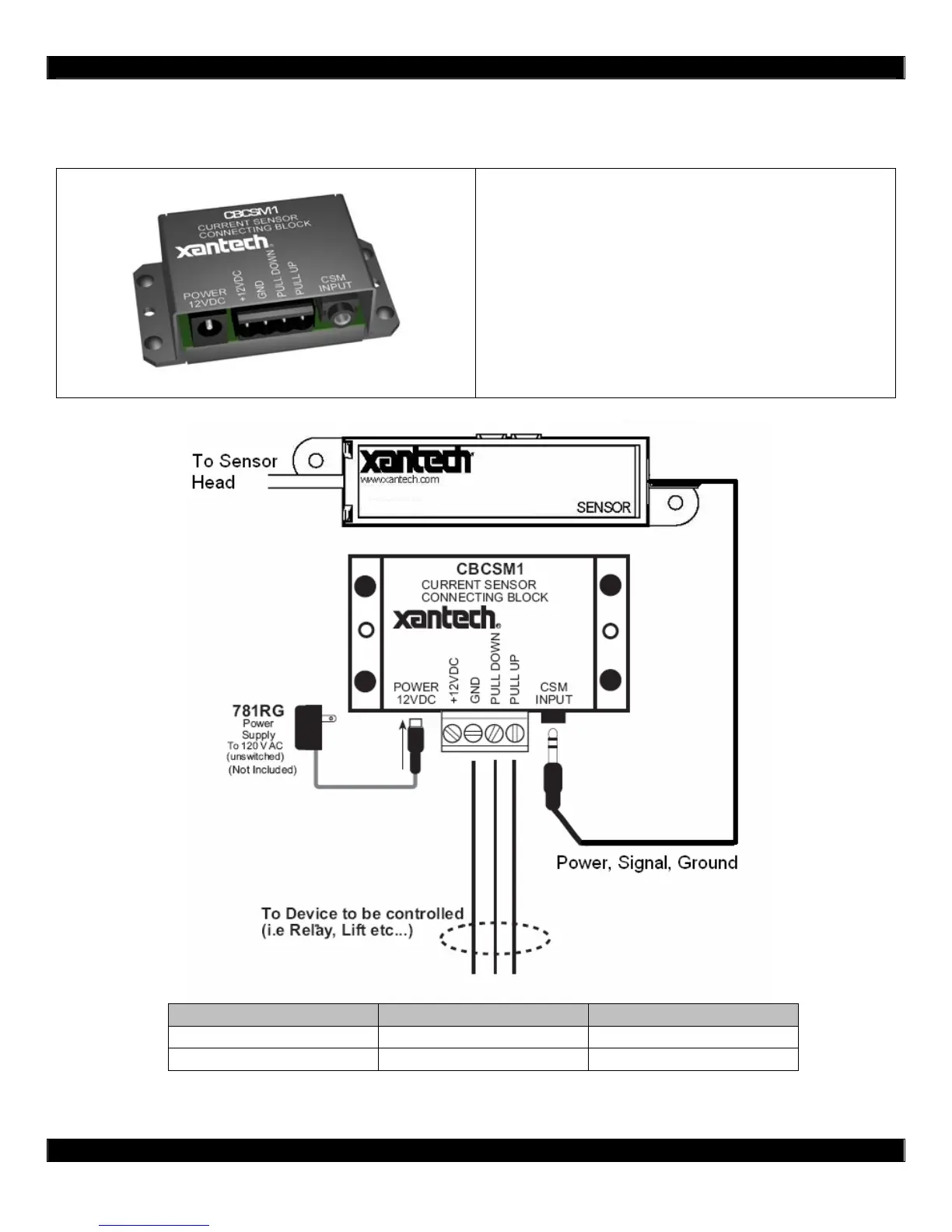

The CBCSM1 allows the Xantech CSM1 Current Sensor
to be used as a general purpose current sensor to sense
the power state of a component by detecting the
difference in current drawn by the component when it is
either ON or OFF and to generate a status signal that can
be used to control other equipment.
• Requires a CSM1 Current Sensor
• Requires a 781RG Power Supply
Sensor State Pull Up Voltage Pull Down Voltage
ON
+12 VDC (HIGH) +0 VDC (LOW)
OFF
+0 VDC (LOW) +12 VDC (HIGH)
