Xantrex PROwatt User Manual

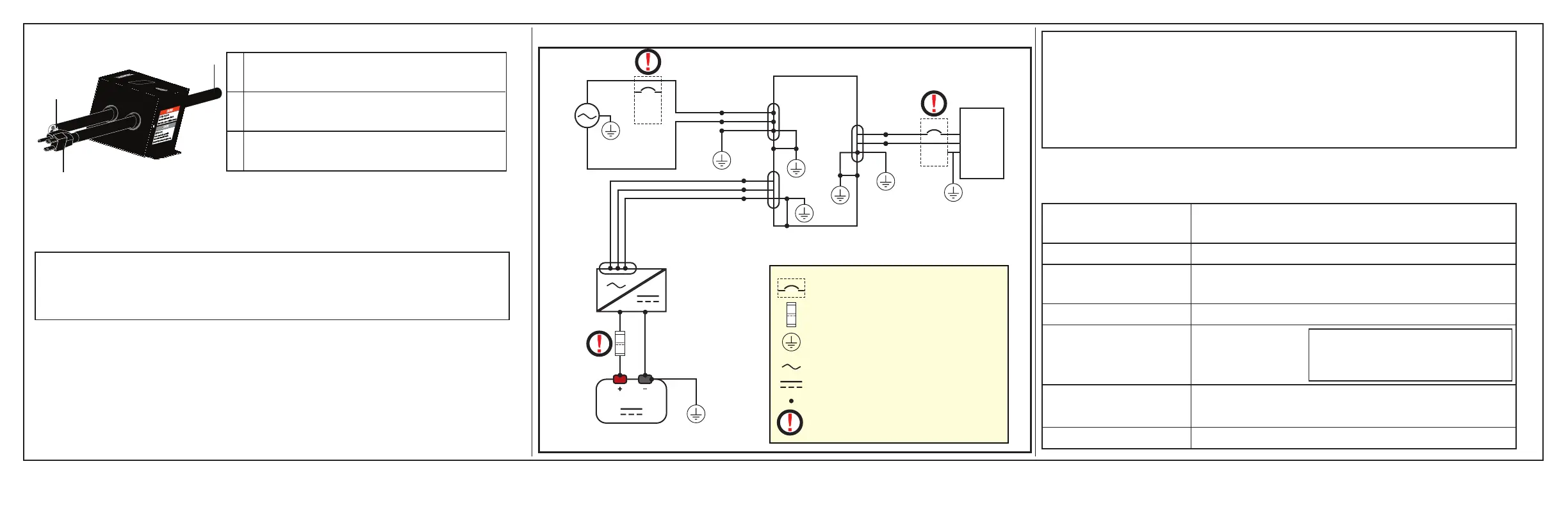

Figure 1 Features
TM
A
C INPUT
FROM INVE
RTER
AC INPUT
FROM UTILITY
A
C OUTPUT
TO LOAD
MODEL
FGA
AC INPUTS
AC OUTPUT
AUTOMATIC TRANSFER SWITCH
808-0915
120-260V, 50/60Hz, 15A MAX
120-260V, 50/60Hz, 15A MAX
3033614
UL1008
2
1
3
1 AC INPUT 1
CONNECTS to PROWATT SW INVERTER
2 AC INPUT 2
CONNECTS to an AC UTILITY SOURCE
3 AC OUTPUT
CONNECTS to LOAD
Installation/Operation
NOTE
n Use a qualified installer or technician/electrician. Consult your RV/motor
home/vessel dealer for guidance.
n Use stranded 14 AWG min. copper (CU) wiring only for AC connections.
1. Disconnect or turn off all power sources prior to installation.
2. Connect the AC Output (loads) cable to an input branch circuit such as a 15A
maximum circuit-protected load sub-panel in your RV or motor home/vessel.
3. Connect the AC Input 1 cable to your PROwatt SW inverter only.
4. Connect the AC Input 2 cable to a 15A maximum circuit-protected mains supply
output branch circuit such as a utility sub-panel in your RV or motor
home/vessel.
5. Turn on all power sources.
Figure 2 Connection Diagram
L
N
G
L
N
G
L
N
G
1
2
3
4
5
1
Main / Shore Power
with AC Breaker Panel
2
PROwatt SW Auto
Transfer Switch
3
Load Supply with
AC Breaker Panel
4
PROwatt SW
Inverter
5
House Battery
Ground
(PE)
AC
DC
Connection
Required
DC Fuse
AC Circuit
Breaker
SPECIFIC CIRCUIT BREAKER MANUFACTURER AND TYPE LISTING
When the transfer switch is protected by a circuit breaker (of a specific manufacturer, type,
and ampere rating), determine the circuit breaker’s compatibility by making sure it is
suitable for use in circuits capable of delivering the short-circuit current at the maximum
voltage stated below:
•Short Circuit Current (RMS Symmetrical Amperes X 1000) : 10
•Voltage (Volts AC Maximum): 240
•Rating (Amperes): 15
Specifications
NOTE: Specifications are subject to change without notice.
AC input voltage and
frequency
120 VAC
60 Hz
AC input current 15 A (max)
AC output voltage and
frequency
120 VAC
60 Hz
AC output current 15 A (max)
Transfer time:
Utility AC to Inverter
Inverter to Utility AC
<120ms
<20ms
NOTE: Transfer to inverter is
initiated when the utility AC voltage
is less than 80 VAC.
Dimensions (L×W×H) 96×75×70 mm
3
25
/
32
×2
30
/
32
×2
24
/
32
in.
Weight 0.64 kg (1.4 lbs.)
2 ©2019 975-0588-01-01 Rev B
November 2019
