(A-4)Remove the stickers of the double-sided tape.

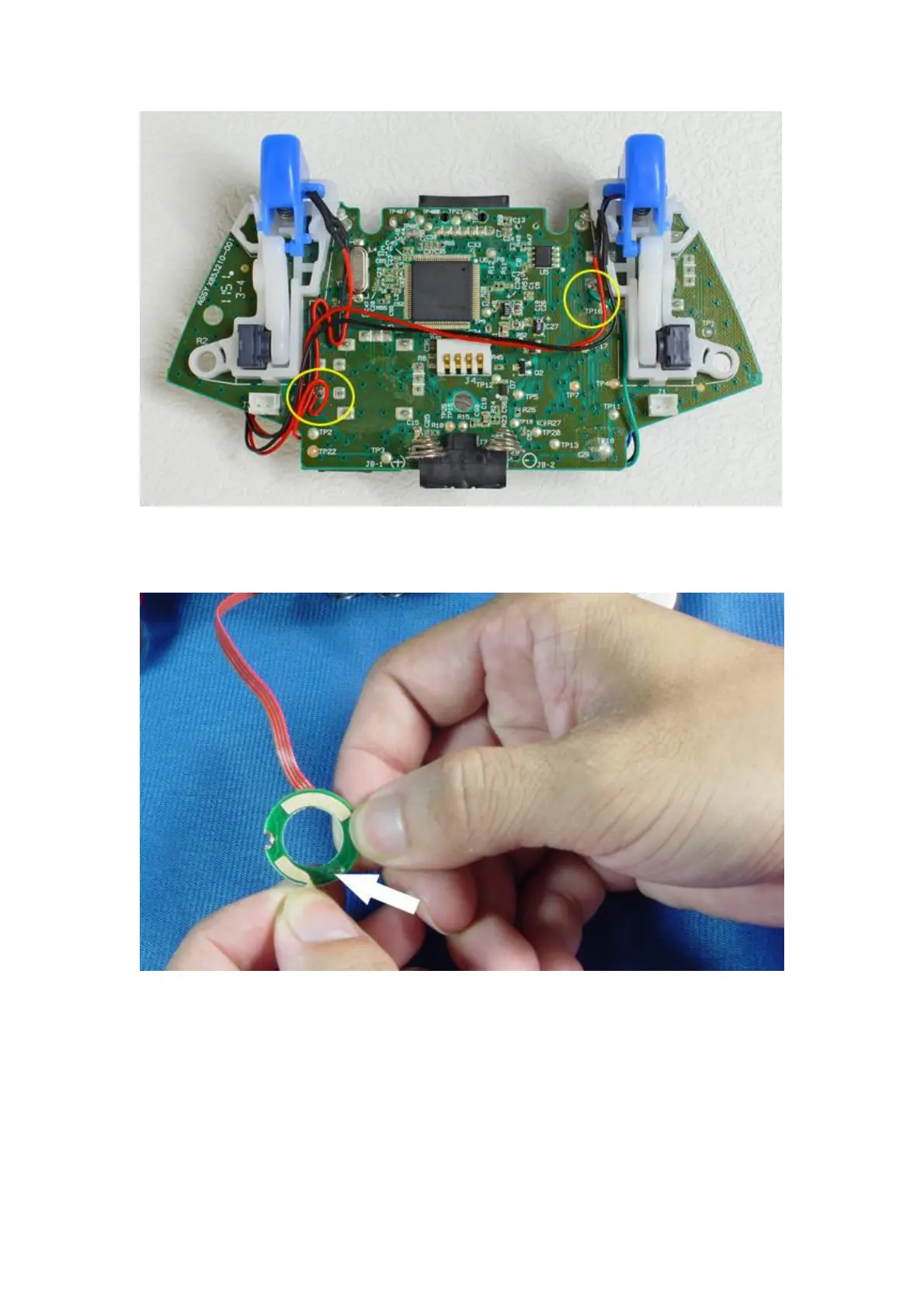

(A-5)Stick the 2 round PCB to the arrow indicated area and solder up the 4 points (red
circle indicated)
