** One of PDU can supply over 12 Targets. EX: 32 Targets need 3 PDU.
Note:
) Connect up to 32 Targets for Each Target System.
) Only one Control unit can be connected for Each Target System.
) Max 2 M cable length between targets or need to add PDU.
) Max 20 M for total cable length or need to add PDU.
) Power Input for Target system : DC 9~24V
(Suggestion DC 24V 5A for 12 targets)
** If end of Targets not go up at the same time that maybe low power
supply need to add PDU and Power.
PDU: Power Distribution Unit
XCORTECH
XTS105 Auto Target System

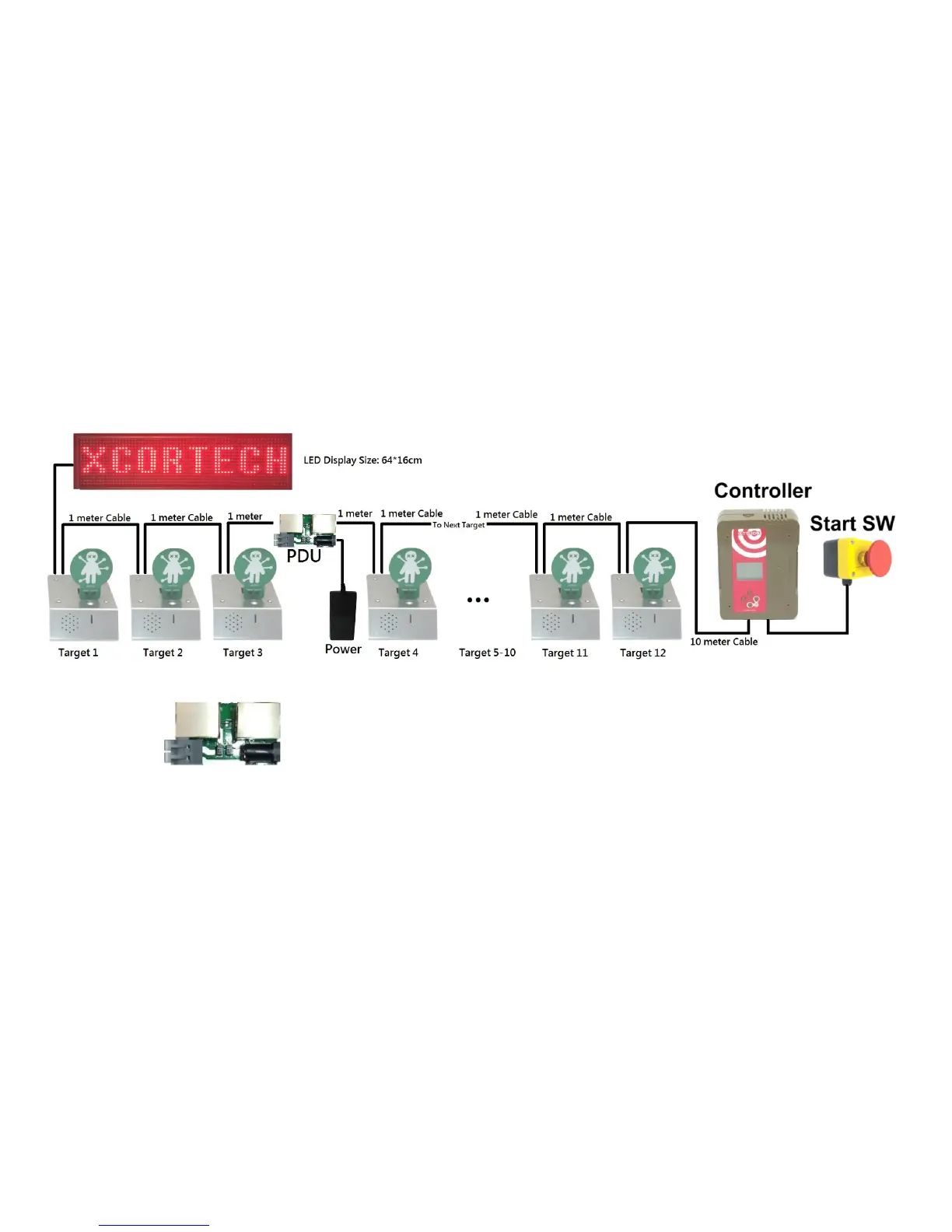

12 Target System connection
