Composite Video 0S 304 0S 303 Two HDSDI Video
In only loop through
75 Ohm
0S 304
1-14 Vdc+
2-Ground
3-Ground
4-14 Vdc+
1S 303
1-28 Vdc+
2-Ground
3-14 Vdc+
2B 302
1-14 Vdc+
2-Ground
0B 304
1-Ground
2-14Vdc+
3-Video signal
4-Video gnd.
2B 303
1-28 Vdc+
2-Ground
3-14Vdc+

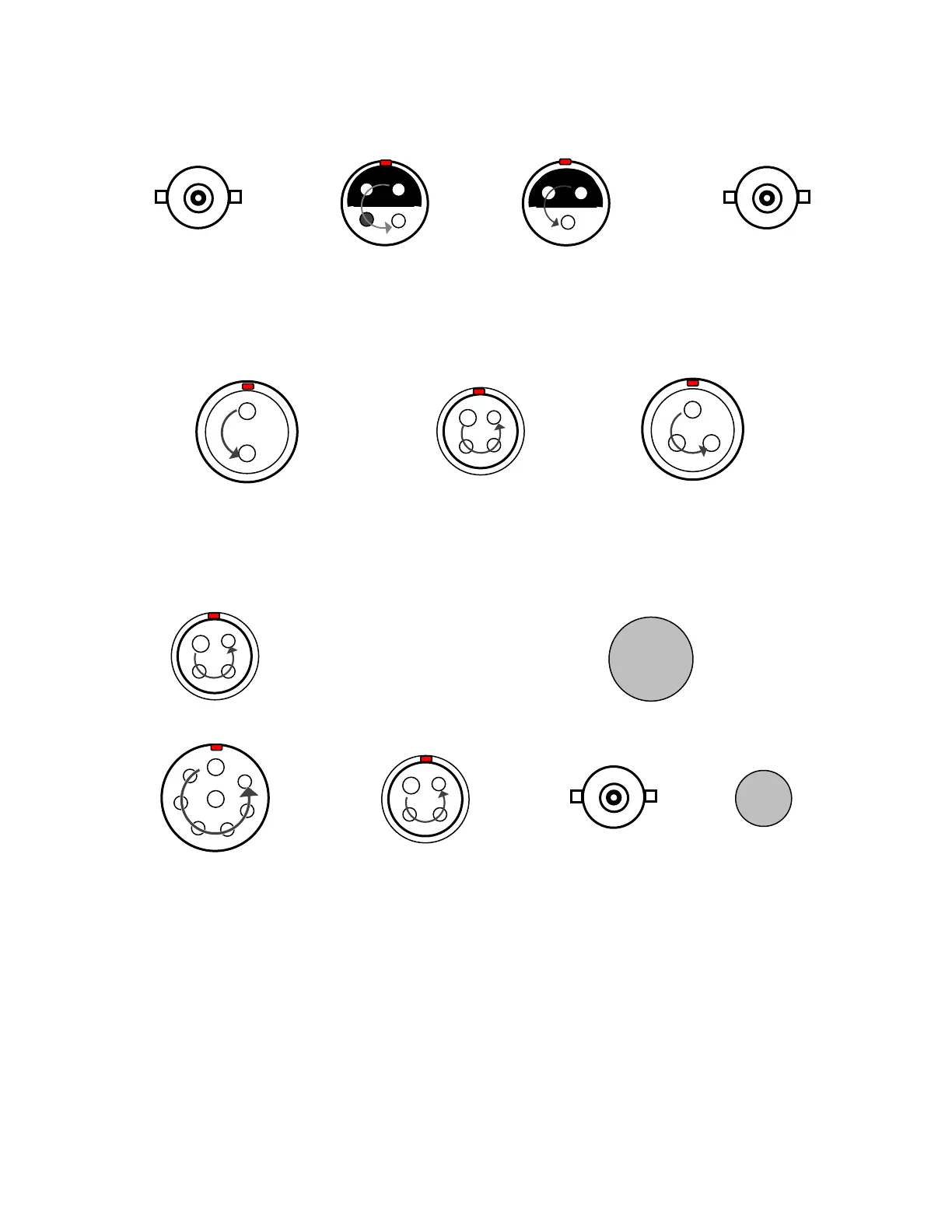

Upper Camera Platform /Lower electronics housing connectors
Because our sleds are completely customizable, some connectors and placements can vary.
Camera platform rear view
Camera platform left side view
Camera platform right/left side
view
0B 304
1-Ground
2-14 Vdc+
3-Video signal
4-Video gnd
9mm tapped plugged hole for
0B Lemo X3
Often used for 2 pin Tally
connector
Lower electronics housing front view
1B 308
1-Power gnd.
2-14 Vdc+
3-Video signal
4-Video gnd.
5, 6, 7, 8 not connected
0B 304
1-Ground
2-14Vdc+
3-Video signal
4-Video gnd.
Two HDSDI video
loop through
75 Ohm
0.375” hole
With plug X2
Often used for 2 pin tally
Connector and 2
nd
HD line
0B/0S connectors have a 2 amp maximum output.
1B/1S connectors have a 3 amp maximum output.
2B 303 connector has a 17 amp maximum output.
2B 302 connector has a 30 amp maximum output.
Use only 75 Ohm 1.4Ghtz bnc connectors or higher on the HD video signals. It can be the difference
between a signal to the monitor or no signal. Retire those old analogue video cables to make sure
they are not used with HD video signal.
0S 304
1-14 Vdc+
2-Ground
3-Ground
4-14 Vdc+
1S 303
1-28 Vdc+
2-Ground
3-14 Vdc+
