The internal cable and connector are designed to spin and be removed. We changed from a fixed
connector design to make it field serviceable. If the cable slides out the bayonet end it will pop back into
the bayonet mount. Later designs have an internal retaining ring preventing the cable from sliding out.
To assure maximum integrity in the center post, there are no slots or grooves cut into the inner or
outer posts. It’s possible to spin the outer post around the inner post, uncoiling the inner-coiled cable
when connected to the LEH & UCP. Eventually this would make telescoping and compressing difficult.
Be cautious in trying not to spin your inner or outer tube more than 520 degrees in any one direction.
Damage to internal conductors may occur if repeated spinning of the cable persists in a single direction.
There are no serviceable components inside the post. However, the post cable can be easily
removed if need be. Be extremely cautious not to bend or break the protruding connector pins when
removing/inserting the post. If a pin is damaged do not try to engage it into the UCP/LEH mating
connector.
Changing over to a super post can be easily done in 5 minutes. When cleaning a post, use a soft
cloth and light duty cleaner. Do not wipe with a solvent that may remove the ink on the inner post.

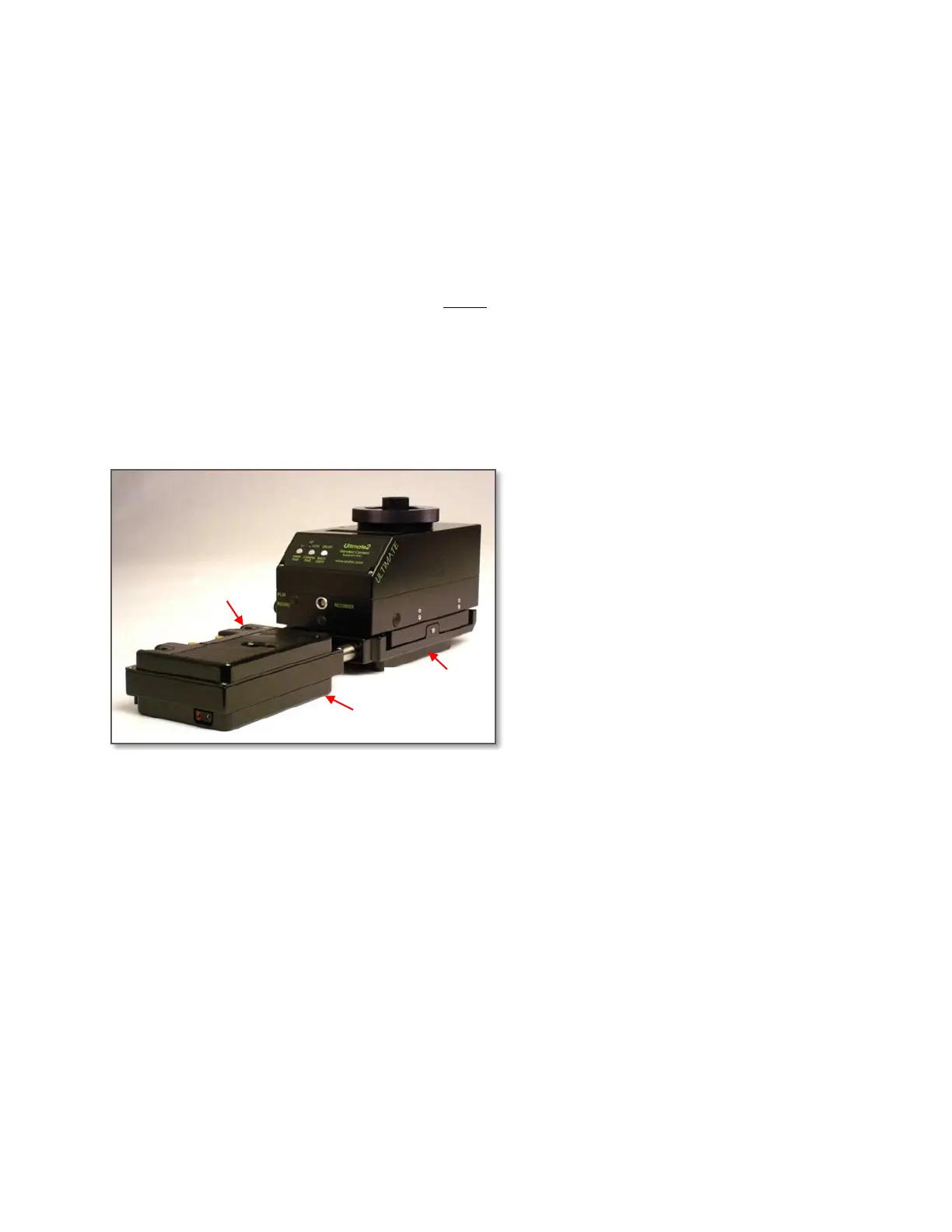

Ultimate 2 Lower Electronics Housing (LEH)
Here is what this Ultimate 2 has to offer:
Battery Management System (BMS)
Microprocessor controlled system
that monitors all batteries plugged
into the LEH, draws power from 1, 2
or 3 of those battery packs. When
you change batteries you change all
batteries at once. All batteries
plugged in are monitored and
selected by the computer to provide
both 12 & 24 Vdc when selected
based on power demand and
batteries ability to deliver power.
The BMS displays the individual
voltage of each battery plugged into
the system in 12 Vdc mode and
combined 12 and 24Vdc display in
24Vdc mode.
Single Power on/off pushbutton. With power “ON” LED indicator.
Single 12/24 pushbutton power selector.
User can power the system while using up to three 14 volt battery packs.
Or a combination of 1 or 2 14 volt battery packs and a single 24 volt pack.
Or a single 24 volt battery pack.
This allows you the largest variation of battery combinations.
User selectable “LO” battery indicator for 12 and 24 cameras. Blinking super bright amber LED.
On/Off control of the LCD backlight.
Correctly wired for the most demanding power situations, up to 500 watts can be distributed.
Video distribution amplifier for composite video and loop through for up to two HDSDI video lines.
Reverse polarity protected.
Short circuit protected.
On screen text warnings of power failures.
Signal noise filtering for video and power.
Left-right and fore-aft fine trim balance adjustments.
Telescoping battery plates up to 4.5 inches.
Your choice of Anton Bauer, PAG, or IDX V mount battery plates.
