July 2019
4-64
Xerox® B205/B215 Multifunction Printer Service Manual
REP 8.2, REP 8.3
Initial Release
Repairs / Adjustments
REP 8.2 Control Panel PWB (B205)
Parts List on PL 8.1
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Control Panel, RE
P 8.1.
3. Remove the Control Panel PWB, Figure 1:
a. Remove four screws.
b. Release the latches and remove the PWB.

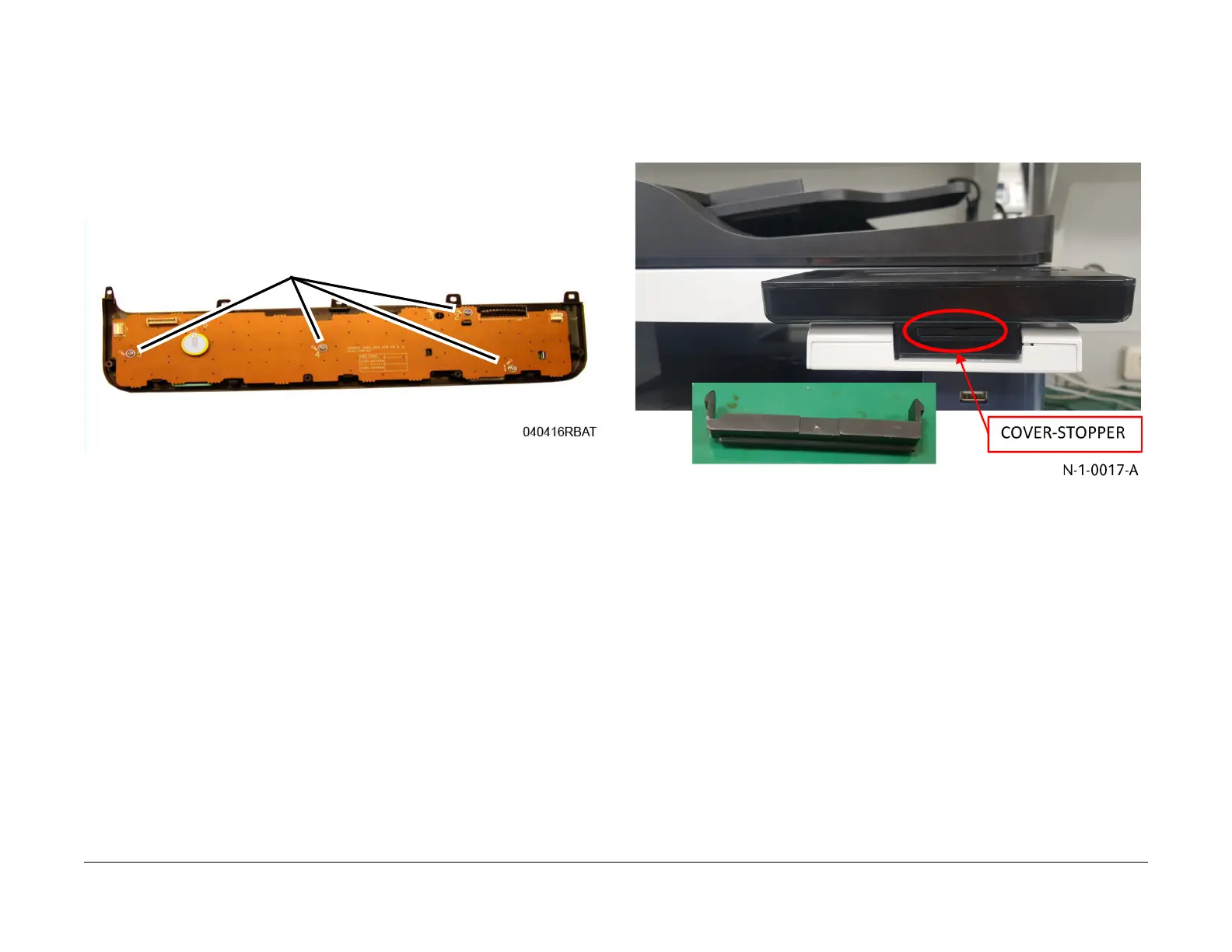

Figure 1 Control Panel PWB removal
Replacement
The replacement is the reverse of the removal procedure.
REP 8.3 Control Panel (B215)
Parts List on PL 8.2
Removal
1. Switch off the printer, then disconnect the power cord.
2. Remove the Cover-Stopper, F
igure 1.
Figure 1 Cover-Stopper removal
