Xerox ColorQube 9303 Service Manual

November 2015
5-53
Xerox® ColorQube® 9303 Family
PL 12.205
Parts Lists

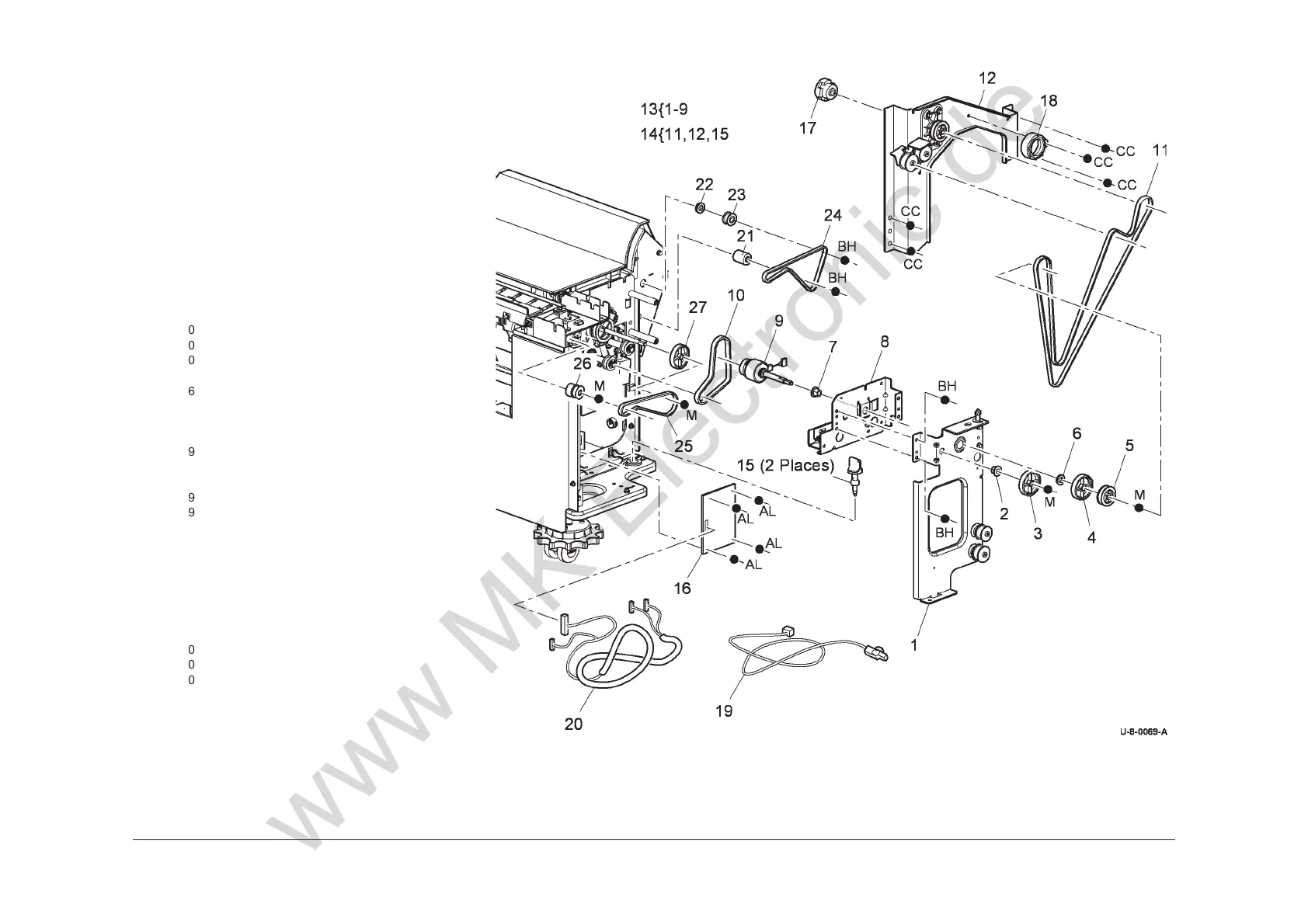

PL 12.205 Tri-Folder Drives Module
Item Part Description
1
– Drive coupling assembly bracket
(P/O PL 12.205 Item 13)
2 – Bearing (P/O PL 12.205 Item 13)
3 – Feed/exit roll drive gear (40T) (P/O
PL 12.205 Item 13)
4 – Gear (40T) (Black) (P/O PL
12.205 Item 13)
5 – Driven pulley (P/O PL 12.205 Item
13)
6 – Bearing (P/O PL 12.205 Item 13)
7 – Bearing (P/O PL 12.205 Item 13)
8 – Idler assembly bracket (P/O PL
12.205 Item 13)
9 – Drive clutch (CL12-269) (P/O PL
12.205 Item 13)
10 – Crease roll belt (Not spared)
11 023E30780 Coupler drive belt (REP 12.68-171)
12 007K14460 Install kit drive assembly
13 005K12690 Drive coupling assembly (REP
12.69-171)
14 675K53640 Tri-Folder install kit (REP 12.68-
171)
15 – Thumb screw (P/O PL 12.205 Item
14)
16 960K24000 Tri-folder PWB (REP 12.80-171)
17 – Drive coupler (Not spared)
18 – Align gauge coupler (Not spared)
19 962K49592 Bin 2 tray harness (REP 12.81-171)
20 962K49571 Bookletmaker PWB to Tri-folder
PWB harness (PJ602)
21 – Drive belt tensioner pulley (Not
spared)
22 – Feed roller bearing (Not spared)
23 – Feed roll pulley (Not spared) (REP
12.70-171)
24 – Feed roll belt (Not spared) (REP
12.70-171)
25 023E23370 Feed roll drive belt
26 020E39921 Pulley gear (19T/20T) (BM)
27 020E39930 Pulley (38T)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
