Xerox ColorQube 9303 Service Manual

November 2015
5-55
Xerox® ColorQube® 9303 Family
PL 12.215
Parts Lists

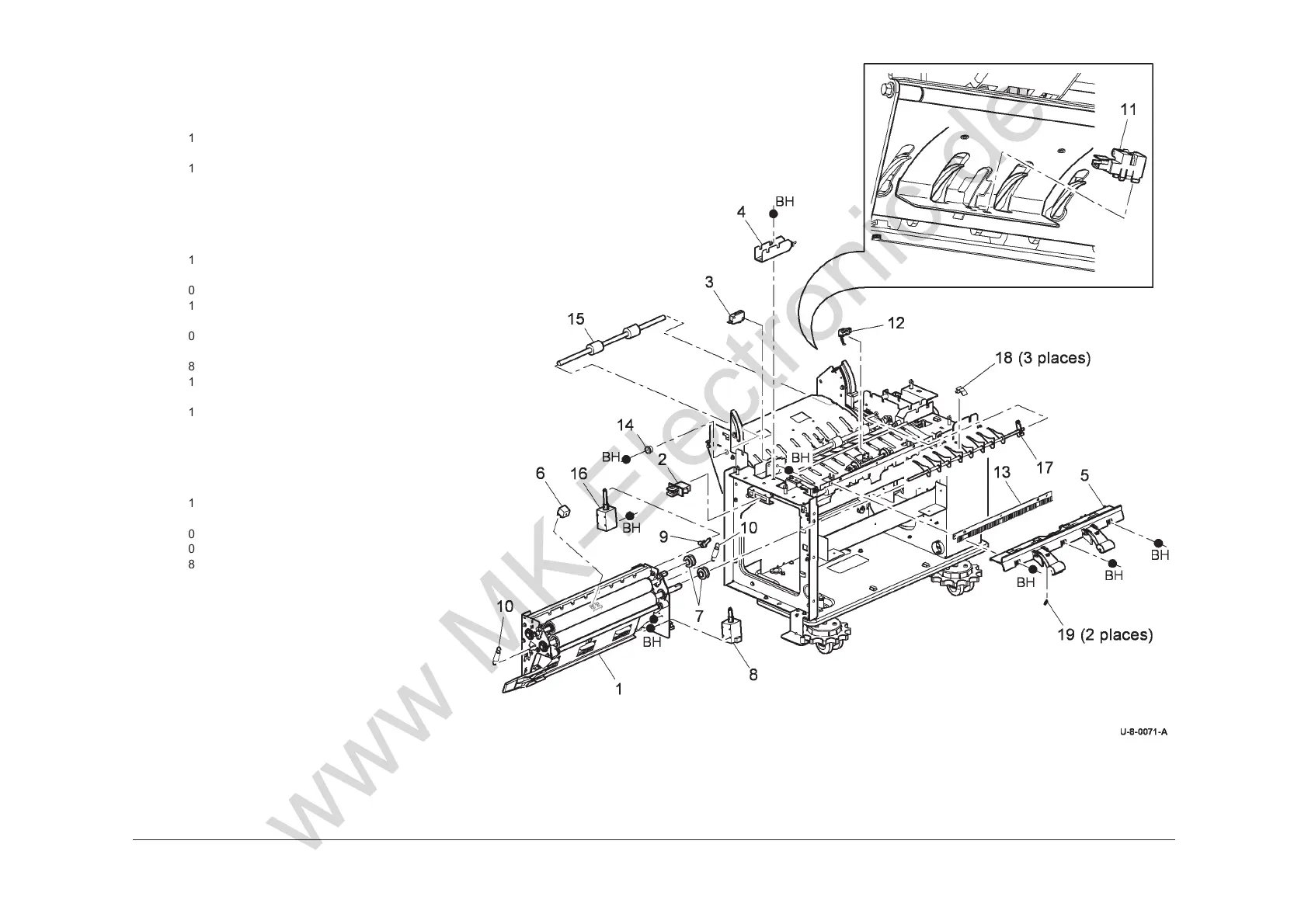

PL 12.215 Tri-Folder Main Drives
A
ssembly
Item Part Description
1
– Roller assembly (Not spared) (REP
12.74-171)
2 110E19840 Front door interlock switch (S12-
209) (REP 12.77-171)
3 110E19831 Top cover interlock switch (S 12-
210) (REP 12.77-171)
4 – Top access cover docking catch
(Not spared)
5 – Pressing and stacking assembly
(Not spared)
6 130E11861 Assist gate sensor (Q12-165)
(REP 12.78-171)
7 020E38480 Centerfold pulley (REP 12.74-171)
8 121K44660 Assist gate solenoid (SOL12-268)
(REP 12.71-171)
9 011E13832 Centerfold entry gate lever (REP
12.74-171)
10 809E44040 Crease roll spring (REP 12.72-171)
11 130K74920 Tri folder entry sensor (Q12-164)
(REP 12.78-171)
12 130K74051 Tri folder exit sensor (Q12-166)
(REP 12.79-171)
13 – Static eliminator (Not spared)
14 – Feed roller bearing (Not spared)
15 – Feed roller (Not spared) (REP
12.70-171)
16 121K44650 Tri folder diverter solenoid (SOL12-
267) (REP 12.74-171)
17 050E23180 Diverter gate
18 050E28950 Diverter gate spring clip
19 809E95080 Nip spring
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
