Xerox ColorQube 9303 Service Manual

November 2015
5-71
Xerox® ColorQube® 9303 Family
PL 62.15
Parts Lists

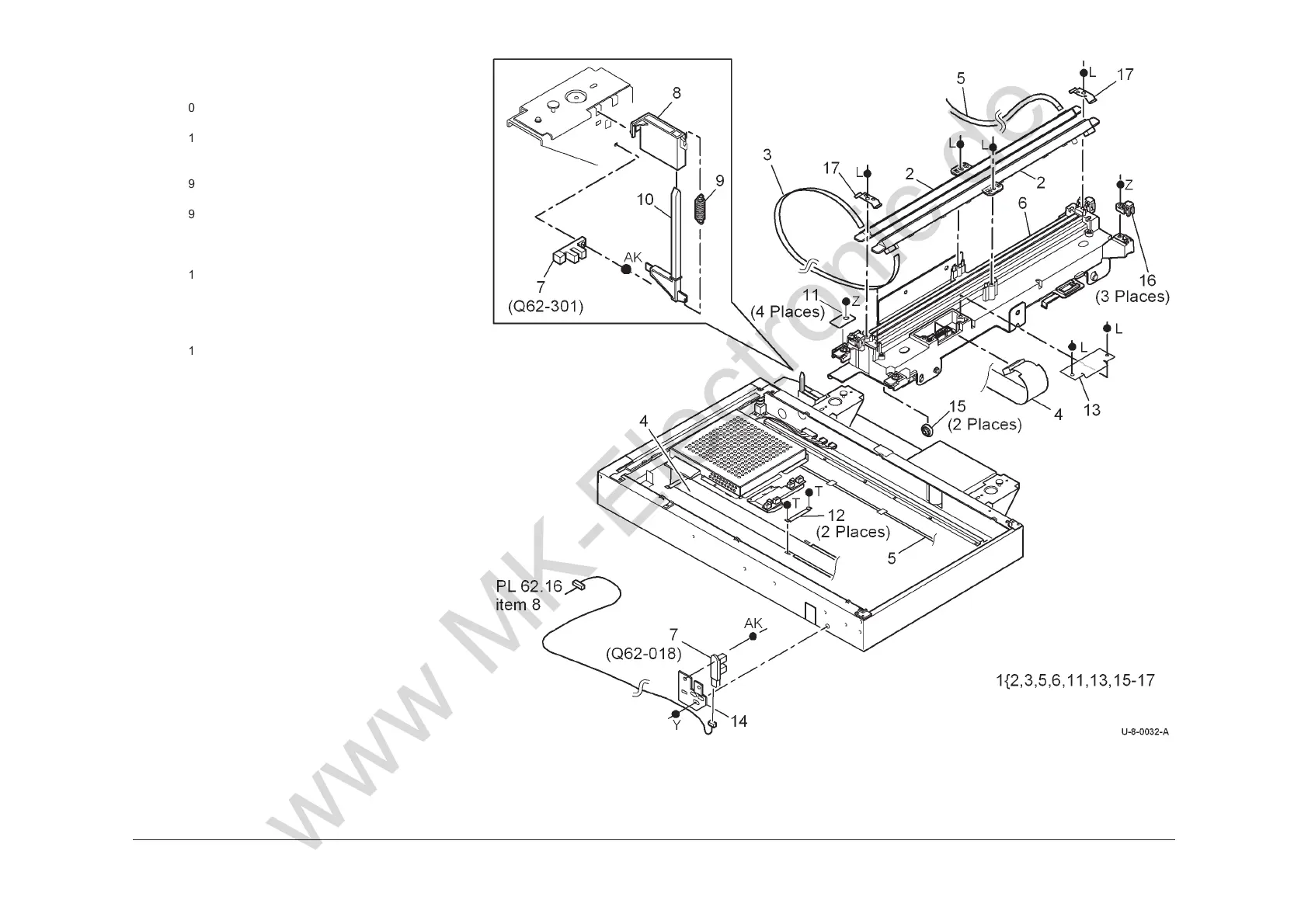

PL 62.15 Electrical Components (1 of
2
)
Item Part Description
1
062K28311 Scan carriage assembly (REP 62.5,
ADJ 62.2)
2 122E03431 LED exposure lamp (REP 62.10)
3 – Inline ribbon harness (P/O PL 62.15
Item 1)
4 962K50450 Scan carriage ribbon cable (PJ928)
(REP 62.13)
5 962K26830 LED lamp ribbon harness (PJ926,
CN1) (REP 62.11)
6 – Scan carriage (P/O PL 62.15 Item
1)
7 130K75130 Carriage home sensor (Q62-018)
(REP 62.4), Angle sensor (Q62-
301)
8 – Actuator support (Not spared)
9 – Actuator spring (Not spared)
10 110K14010 Input module angle sensor actuator
(REP 62.9)
11 – Cable clamp (P/O PL 62.15 Item 1)
12 – Harness retainer (Not spared)
13 – Connector cover (P/O PL 62.15
Item 1)
14 – Sensor bracket (Not spared)
15 – Lower skid (P/O PL 62.15 Item 6)
(See NOTE)
16 – Upper skid (P/O PL 62.15 Item 6)
17 – Clip (Not spared)
NOTE: Refer to ADJ 62.1 for the optics cleaning procedure.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
