Xerox ColorQube 9303 Service Manual

November 2015
5-77
Xerox® ColorQube® 9303 Family
PL 73.16
Parts Lists

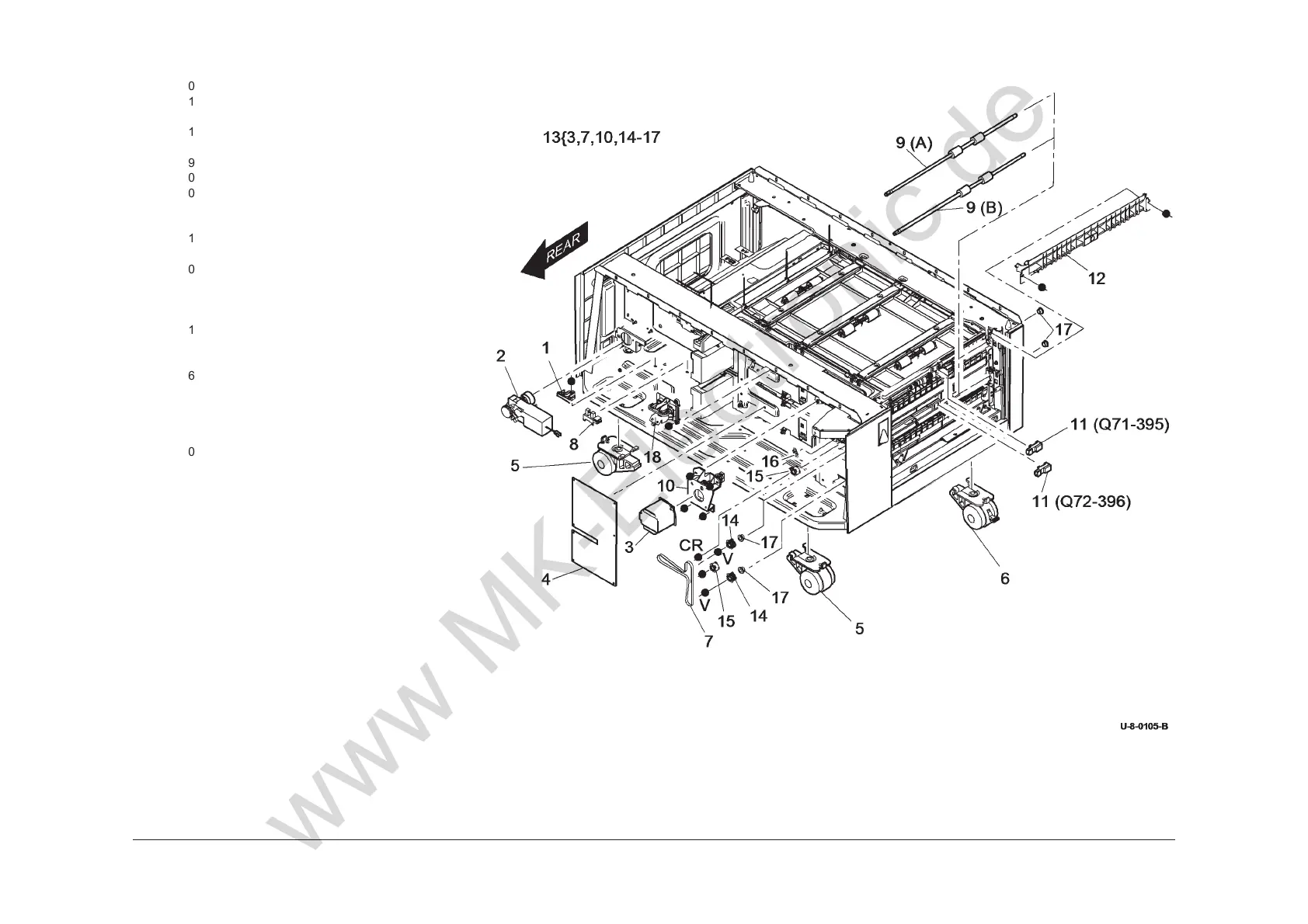

PL 73.16 3 Tray Module
Item Part Description
1
003E71520 Latch stop (See NOTE)
2 127K62350 Tray 3 elevate motor (MOT 73-002)
(REP 73.2)
3 127K53792 3 Tray transport motor (MOT70-
025) (REP 82.1)
4 960K52111 3 Tray module PWB (REP 70.1)
5 017K04222 Rear caster
6 017K04232 Front caster (Brake)
7 – Drive belt (P/O PL 73.16 Item 13)
(REP 82.2)
8 130E18220 Tray 3 home sensor (Q73-303)
(REP 73.5)
9 059K50851 Takeaway roll 1 (A) / Takeaway roll
2 (B)
10 – Transport motor bracket (P/O PL
73.16 Item 13)
11 130E11610 TAR sensor 1 (Q 71-395),TAR
sensor 2 (Q72-396)
12 – Lower guide (Not spared)
13 604K55421 TAR Drives kit
14 – Pulley (P/O PL 73.16 Item 13)
15 – Idler pulley (P/O PL 73.16 Item 13)
16 – Spring (P/O PL 73.16 Item 13)
17 – Bearing (P/O PL 73.16 Item 13)
18 003K20701 HT & main harness latch
NOTE: The Latch stop is also supplied as part of tray 3
assembly kit PL 31.11 Item 31.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
