Xerox DocuColor 2240 Service Manual

09/03
4-111
DC 3535/2240/1632, WC M24
REP 12.6
Repairs and Adjustments
Initial issue

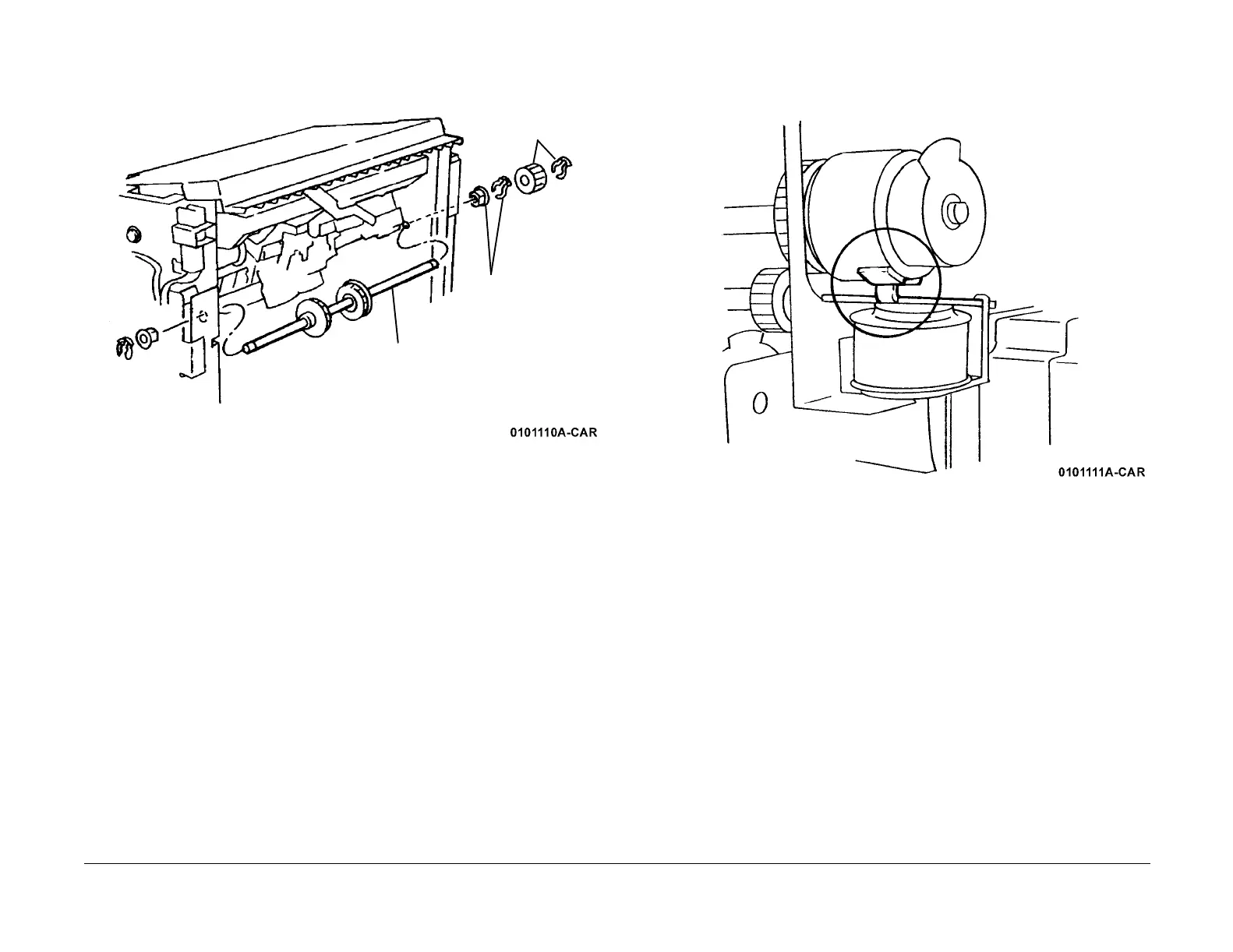

8. Remove Eject Shaft (Figure 7).
Figure 7 Removing Eject Shaft
Replacement
1. When replacing Feed Roll or Eject Shaft, replace them simultaneously.
2. When installing the Clutch, be sure to insert the Pawl into Clutch grooves (Figure 8).
Figure 8 Inserting Pawl into Clutch Grooves
1
Remove
Clip and
Gear
2
Remove Clip
Bearing on
both sides
3
Remove
Eject Shaft
