Xerox Phaser 3100MFP - Page 37

Repairs and Adjustments
Phaser 3100 MFP 04/08 4-9

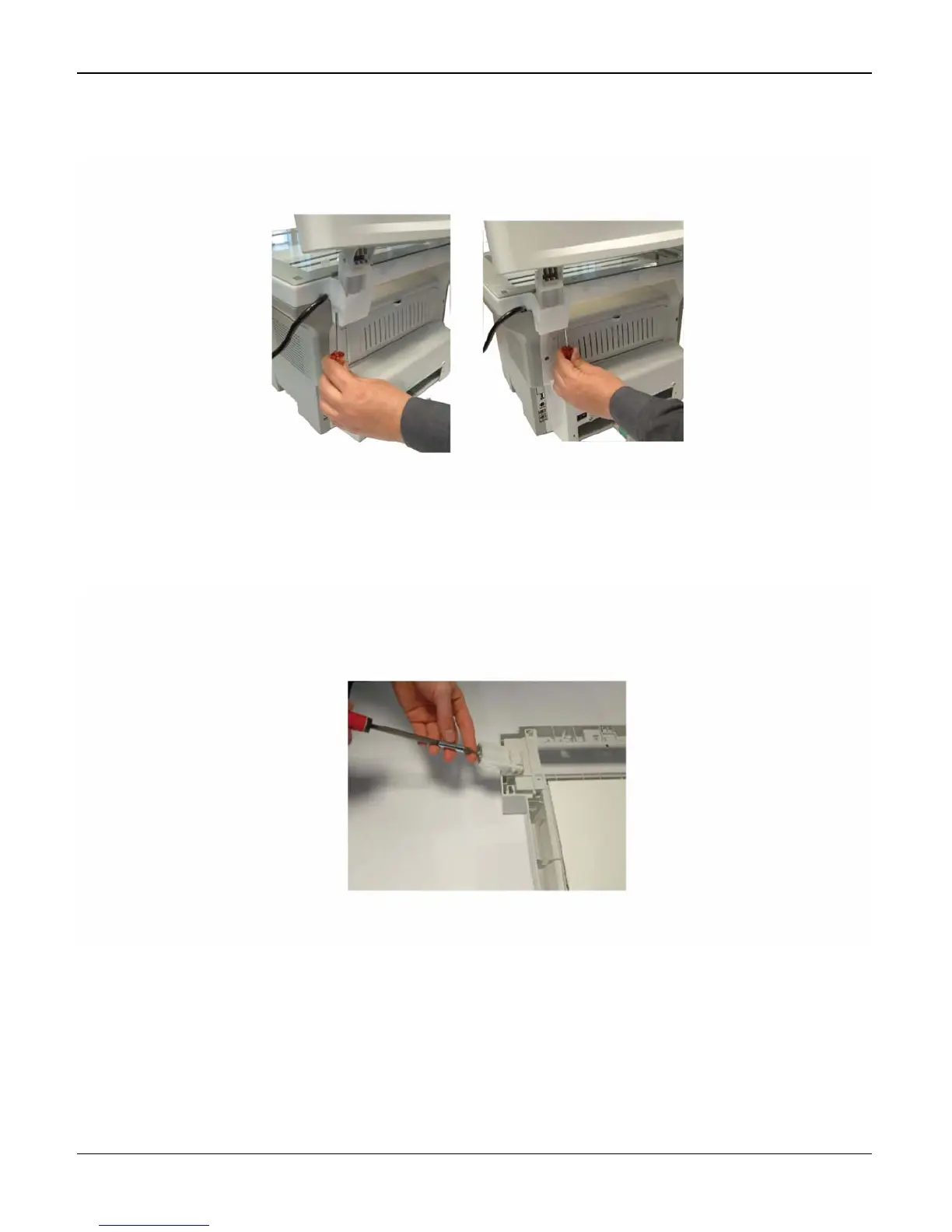

7. Insert a flat screwdriver in each slot of the two ADF cover hinges, Figure 8.
Figure 8
8. Lift and remove the ADF cover, do not forget the mounting screws of the hinges, Figure 9.
Figure 9
Replacement
1. Replacement is the reverse of the removal procedure.
