Repairs and Adjustments
Phaser 3100 MFP 04/08 4-27
Replacement
ADF Feed Guide
1. Replacement is the reverse of the removal procedure.
Paper Deflector

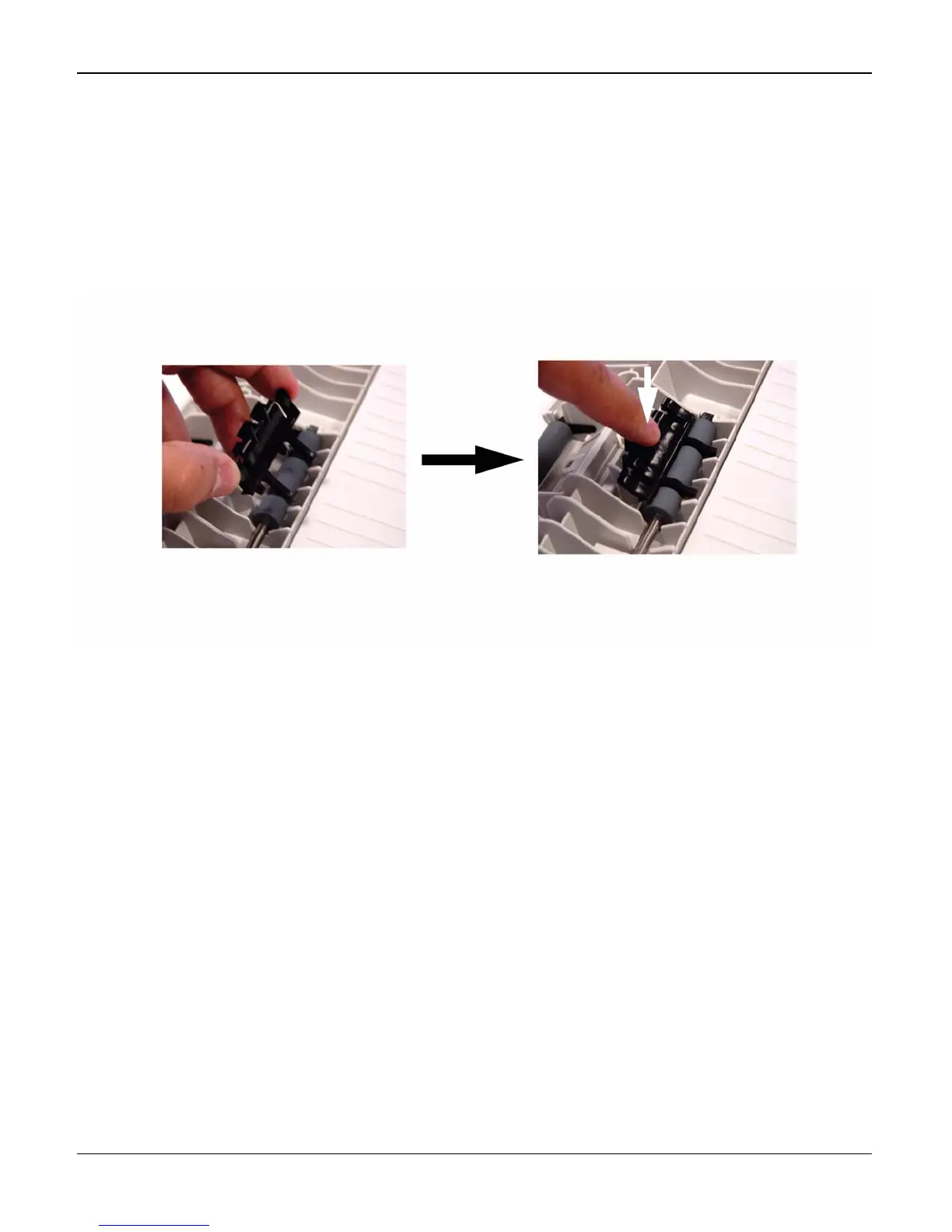

2. Position the paper deflector on the registration roller and press to clip it in place, Figure 3.
Figure 3
Registration Roller
3. Replacement is the reverse of the removal procedure.
