Repairs and Adjustments
Phaser 3100 MFP 04/08 4-57
Friction Pad

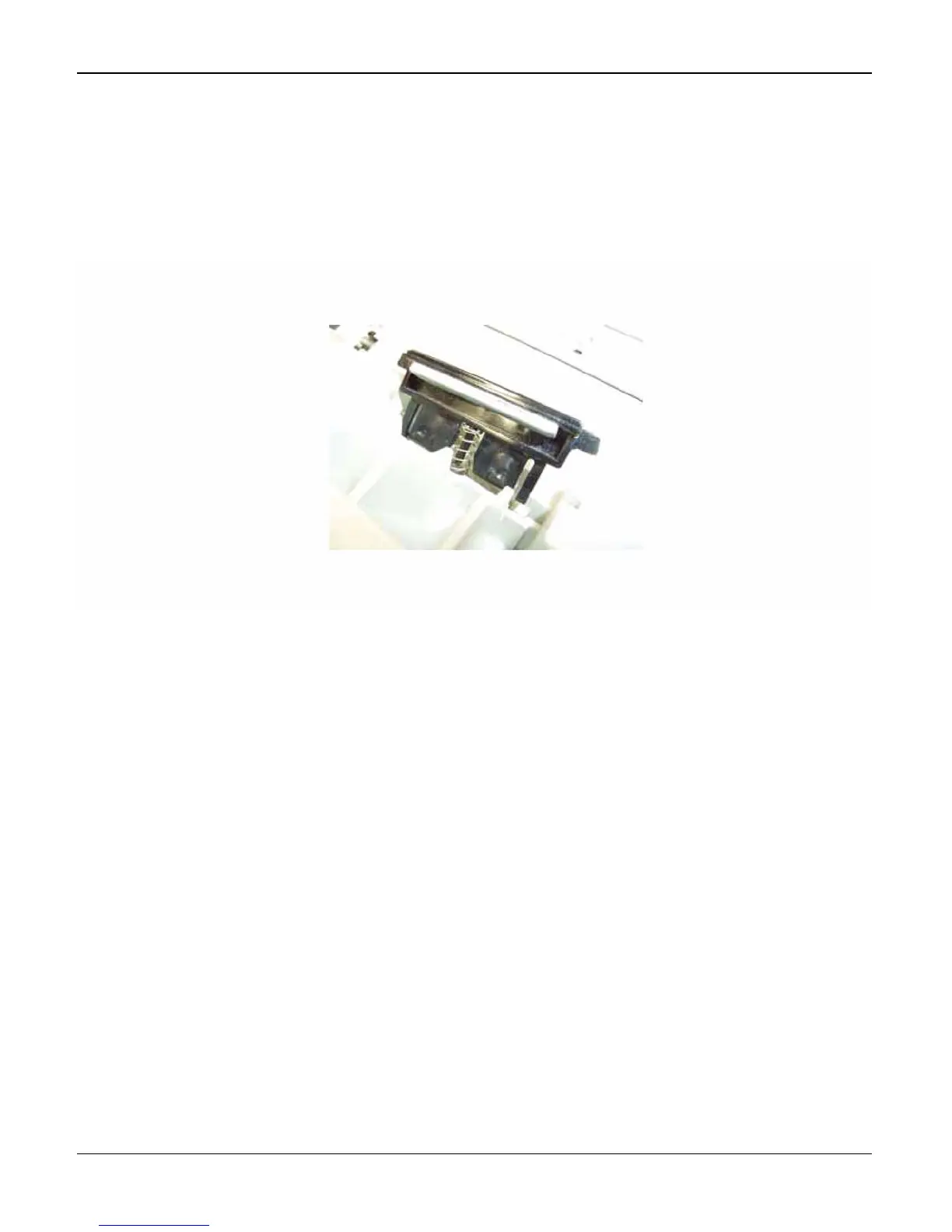

6. Release 2 hooks from below, Figure 4.
CAUTION
When releasing the hooks take care not to lose the spring.
Figure 4
Replacement
1. Replacement is the reverse of the removal procedure.
