Repairs and Adjustments
Phaser 3100 MFP 04/08 4-69
Replacement
1. Replacement is the reverse of the removal procedure.
CAUTION
When re-assembling, be careful not to damage the stripper fingers.

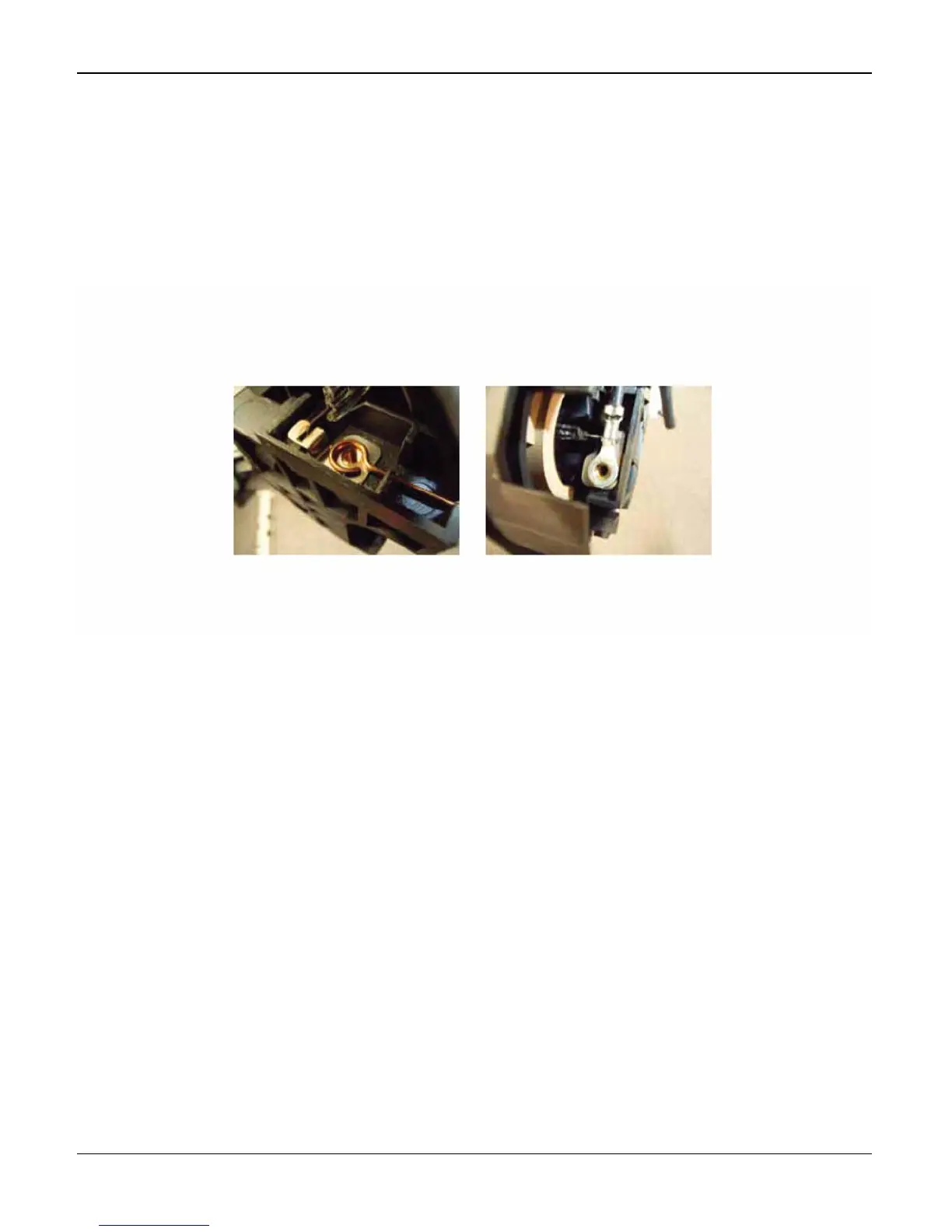

2. When reassembling, be careful to set the fusing lamp on the frame first, then set the termi-
nals, Figure 5.
Figure 5
