Xerox VersaLink B7025 Service Manual

April 2017
5-129
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 90.20
Parts Lists
Launch Issue

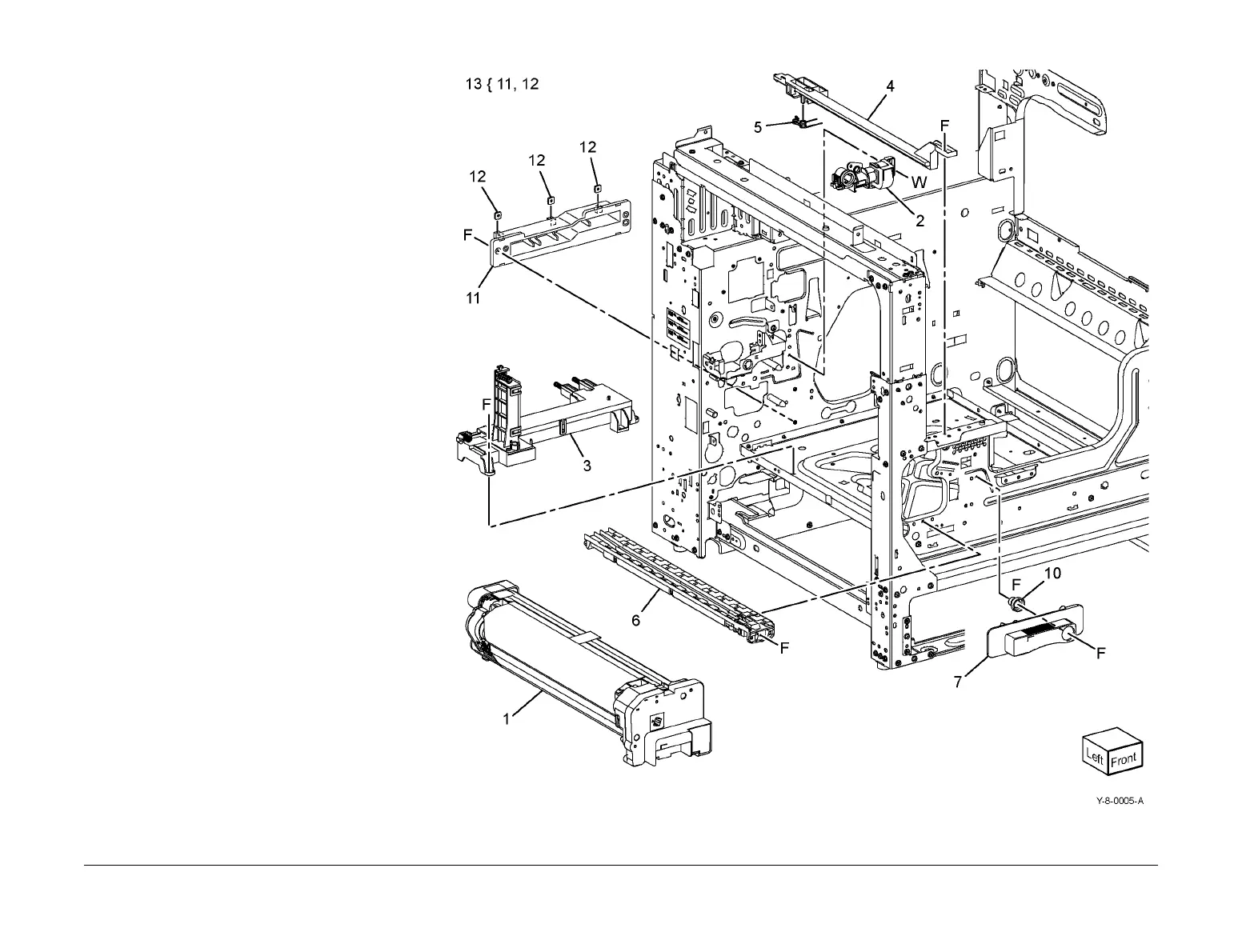

PL 90.20 Xerographic Components
Item Part Description
1 113R00779 Drum cartridge (REP 90.4)
2 052K13870 Reclaim pipe assembly (REP 90.5)
3 848K94940 AC housing assembly (REP 90.6)
4 – CRU upper guide (Not Spared)
5 – Conductor (Not Spared)
6 – Lower guide assembly (Not
Spared)
7 803E27170 CRU handle
8 – Not used
9 – Not used
10 013E38891 Handle bearing
11 – HV conductor housing (P/O PL
90.20 Item 13)
12 – Plate nut (P/O PL 90.20 Item 13)
13 604K96920 HV housing assembly

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
