Xerox VersaLink B7025 Service Manual

April 2017
4-50
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 10.2
Launch Issue
Repairs and Adjustments
REP 10.2 Exit 2 Roll
Parts List on PL 10.22
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Disengage the hooks, then remove the paper exit 1 weight assembly, (1), Figure 1.
NOTE: Take note of the orientation of the paper guides (2).

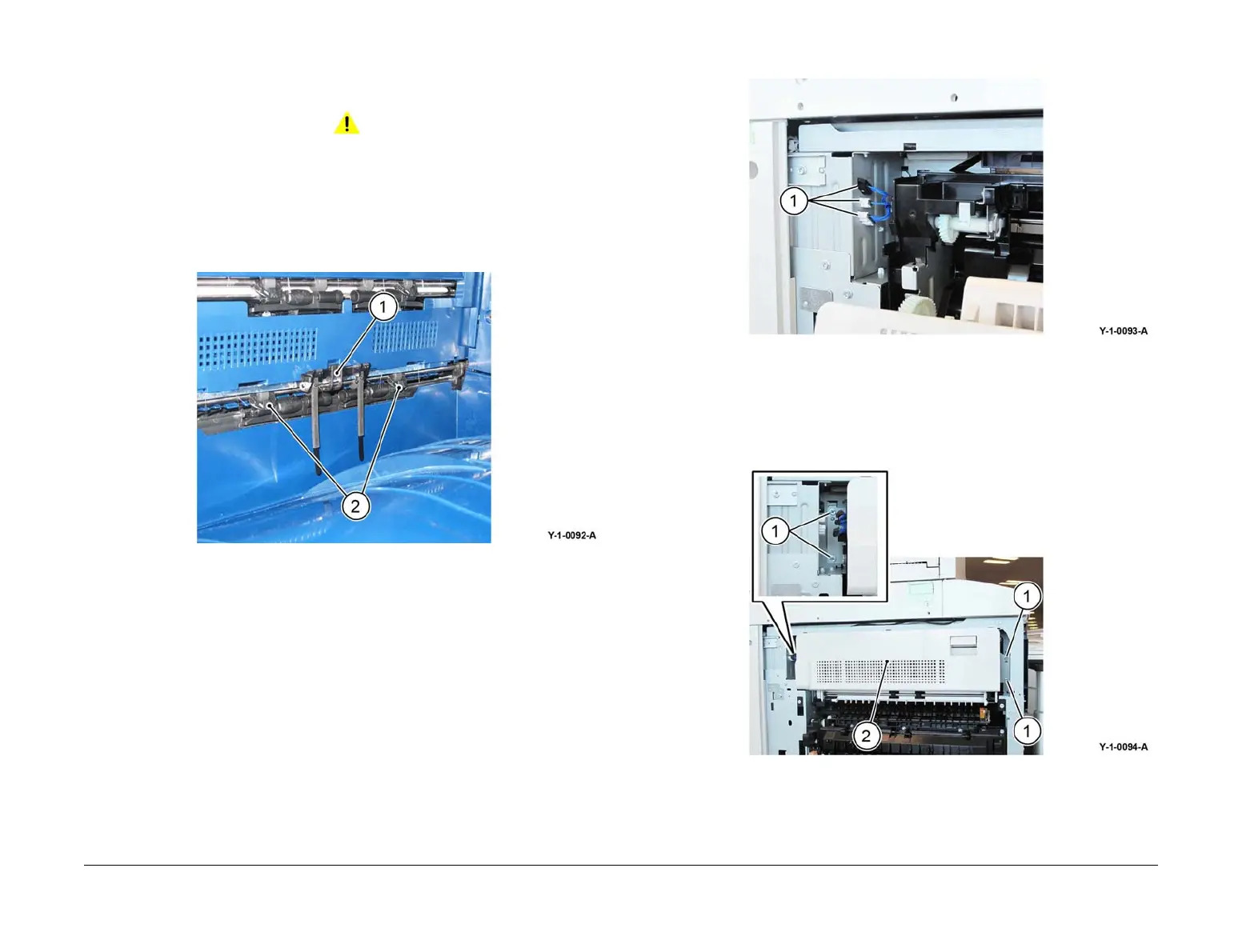

Figure 1 Weight assembly removal
2. Open the front cover.
3. Open the L/H cover.
4. Remove the pillar left cover, PL 28.05 Item 13.
5. Open the exit 2 transport assembly.
6. Remove the LH top cover, PL 28.05 Item 14.
7. Disconnect three connectors (1), Figure 2.
Figure 2 Connectors
8. Close the exit 2 transport assembly.
9. Remove the exit 2 transport assembly, Figure 3:
a. Remove four screws (1).
b. Remove the exit 2 transport assembly (2).
Figure 3 Transport assembly removal
