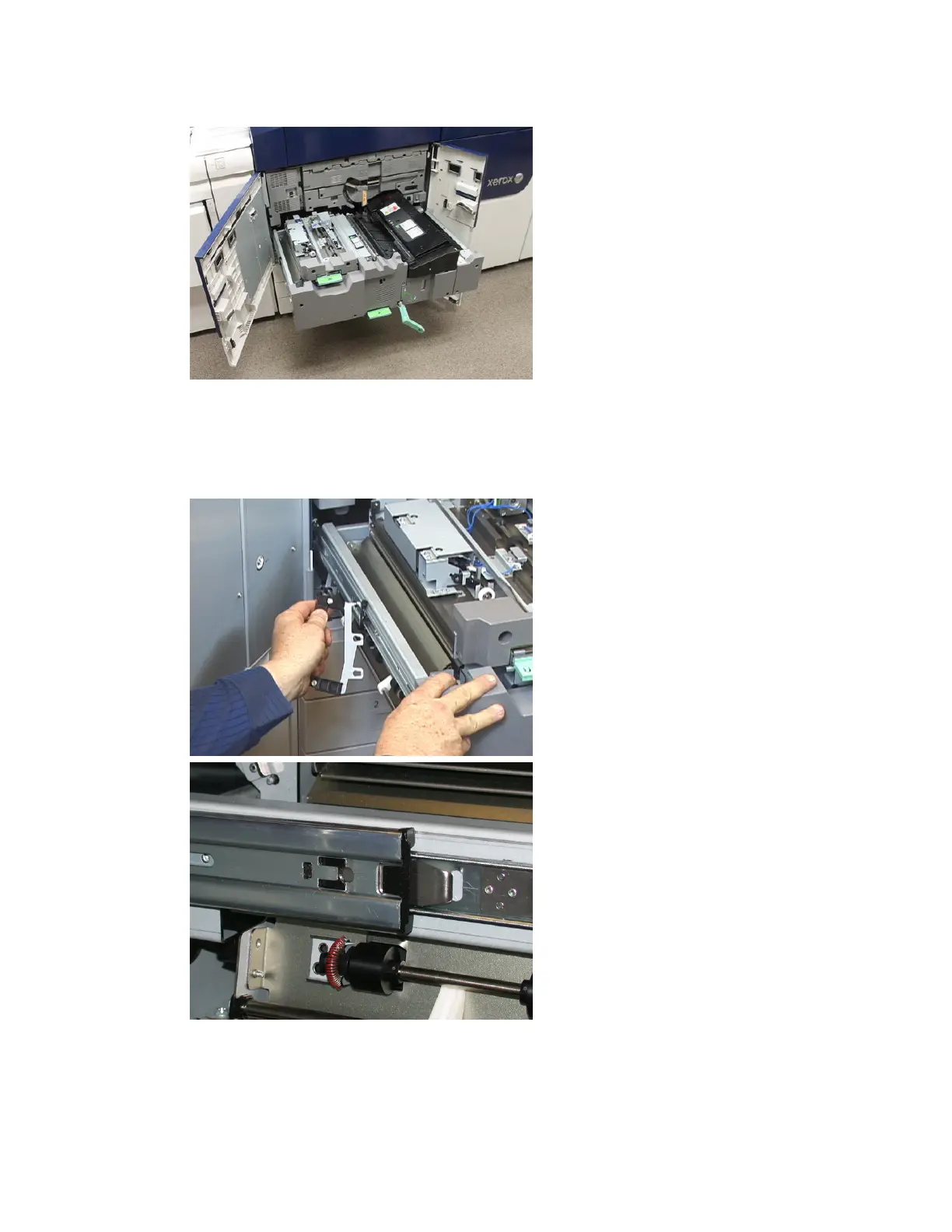

3. Locate the green Handle (2) and rotate clockwise to the horizontal position to unlock
the Transfer Drawer.
4. When the Fuser has cooled, pull the Transfer Drawer out to the jam clearance position.
5. You will now need to pull the Transfer Drawer out to an extended position. While
gently pulling the drawer, use the pointed end of the Fuser Belt Module Handle to
push through the hole in the Transfer Drawer rail to release the tabs on each side of
the drawer.
