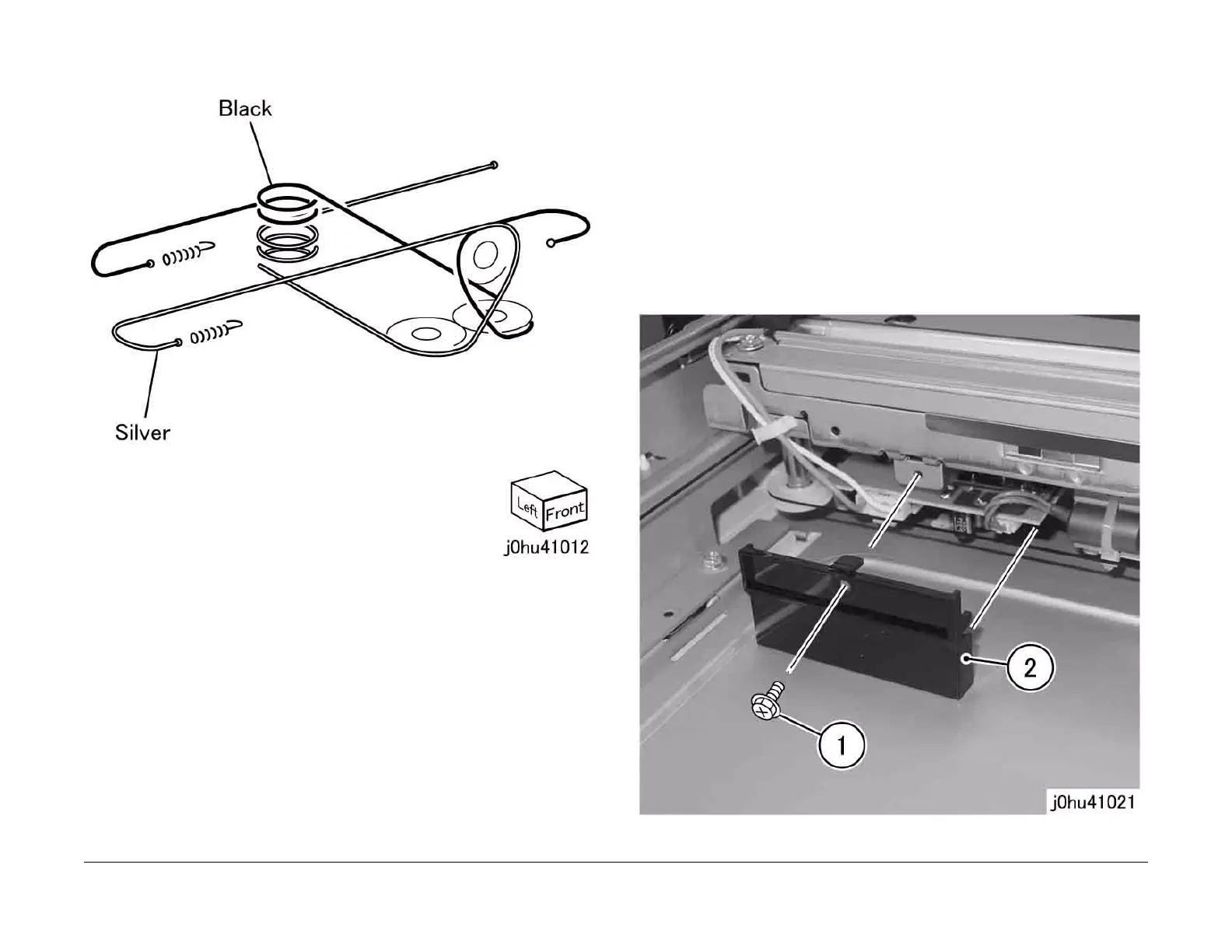

Figure 5 Cable Winding Schematic
REP 10.7.2 Inverter PWB
Parts List on PL 10.7
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the following parts:
• Platen Cover (PL 10.1)
• Control Panel (REP 8.3.1)
2. Remove the IIT Upper Cover (REP 10.2.1).
3. Remove the Inverter PWB Bracket 2 (Figure 1).
1 Remove the screw.
2 Remove the Inverter PWB Bracket 2.
Figure 1
