Xerox WorkCentre 5225

February, 2008
5-13
WorkCentre 5225, 5230
PL 2.6
Parts List
Launch Version

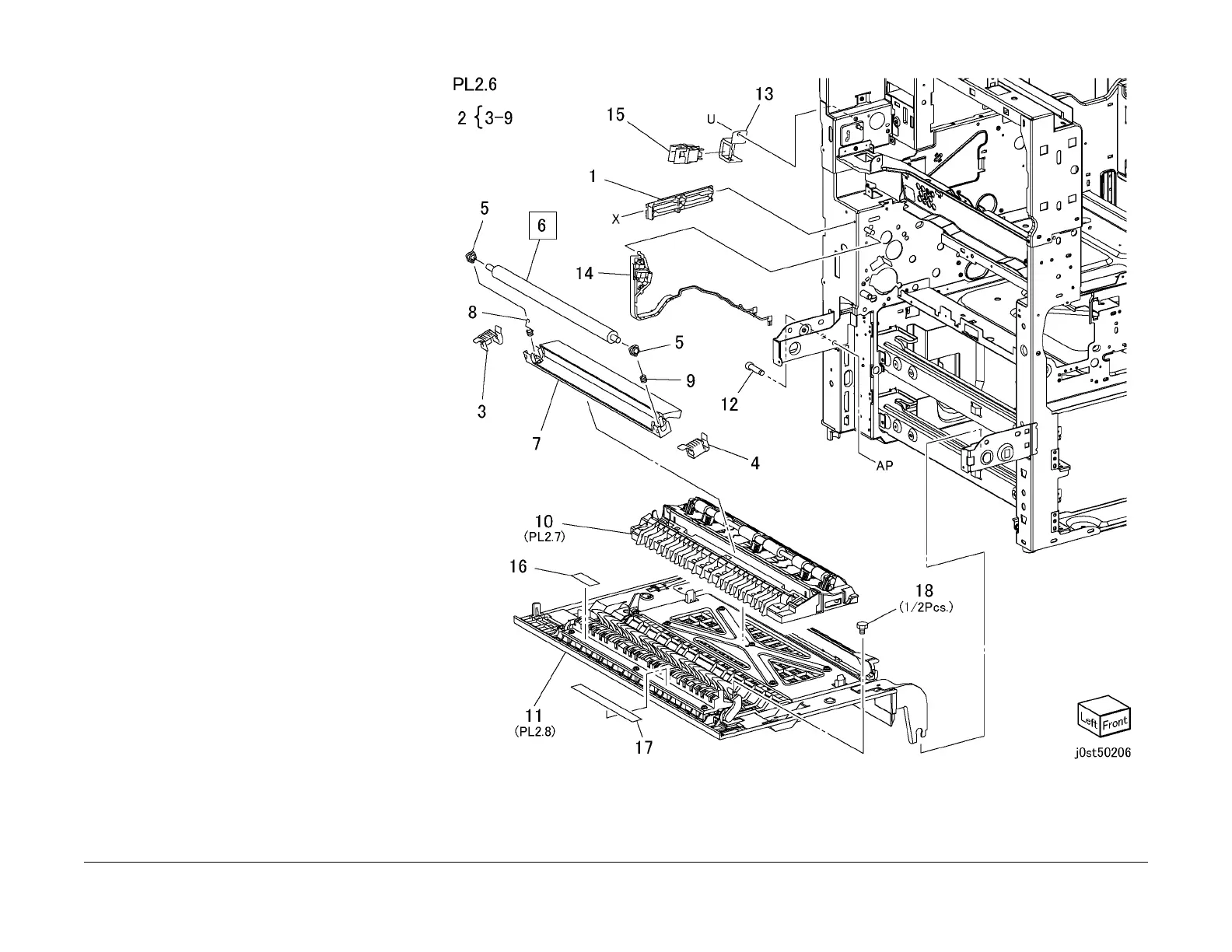

PL 2.6 Transfer Cover Assembly
Item Part Description
1 012K94341 Link Assembly
2 802K81270 BTR Roll Assembly
3 – Lever (Rear) (P/O PL 2.6 Item 2)
4 – Lever (Front) (P/O PL 2.6 Item 2)
5 – Bearing (P/O PL 2.6 Item 2)
6 – BTR Roll (P/O PL 2.6 Item 2) (REP
2.6.1)
7 – Housing (P/O PL 2.6 Item 2)
8 – Spring (P/O PL 2.6 Item 2)
9 – Spring (P/O PL 2.6 Item 2)
10 054K24055 L/H Upper Chute Assembly
11 802K88890 L/H Upper Cover Assembly
12 – Stud (Not Spared)
13 – Bracket (Not Spared)
14 802K49240 Wire Assembly
15 110E94770 L/H Cover Inter Lock Switch
16 – Label 220V (Not Spared)
17 – Label 110V (Not Spared)
18 – Screw (Not Spared)
