Assembly Instruction
Instructions For Use
1
2
3
4
5
CAUTION:
* Before using the chair, check to ensure that all bolts are fully tightened.
* Lubricate all parts and tighten all bolts every 6 months or whenever needed.

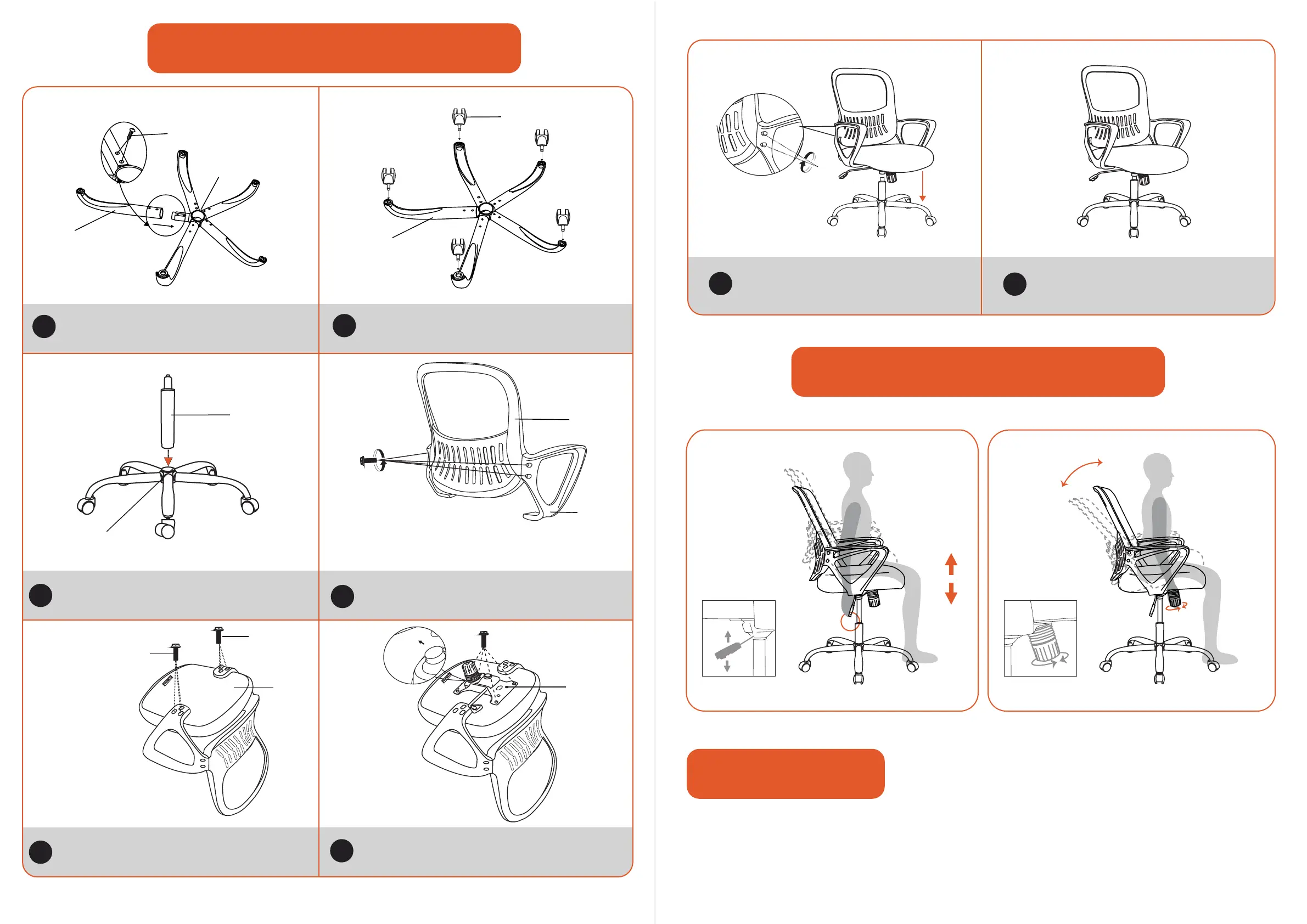

Turn the Base (F) upside down, insert the Legs (G)*5 into the Base
one by one. Use Wrench (M), secure both with Bolts (K)*10.
Press Casters (H)*5 into the holes at the end of Legs (G)*5.
7
Using Wrench (M), 100% tighten the previously installed
Bolts (I)*4 on the Armrests (C)x1Lx1R. Align the hole on
Mechanism (D) with Gas Lift (E), and press the Chair down
until it is fully secured.
8
Finish the installation.
Insert the Gas Lift (E) into the Base (F).
Using Wrench (M), install Armrests (C)x1Lx1R to both sides of the
Backrest (A) with Bolts (I)*4.
NOTE:
1.Bolts (I) are only tightened 50%.
2.Armrests (C)x1Lx1R are marked with "L" (Left) and "R" (Right) to show
which side they should be installed.
NOTE:
The Seat (B) is marked with "FRONT",
please make sure the installation
direction is correct.
NOTE:
Make sure the “FRONT” direction of
Mechanism (D) and Seat (B) are the same.
Turn the Seat (B) upside down . Using Wrench (M), install
Armrests (C)x1Lx1R to the Seat with Bolts (J)*6.
6
Using Wrench (M), attach Mechanism (D)
to the Seat (B) with Bolts (L)*4.
(K)* 2
(I)* 4
(J)* 3
(J)* 3
(L)* 4
(D)
(B)
50%
100%
(G)
(E)
(A)
(C)
(G)
(F)
(H)
(F)
