Xray T2 User Manual

6
305050
305002
930508
305082
930120
305050
305082
966080
963030
930138
305040
305002
305050
FACTORY PREASSEMBLED
GREASE
966080
C 8
963030
ST 3x8
930138
BA 3x8
930508
BB 5x8
930120
B 2.4
BALL DIFFERENTIAL
305150
305150
305112
305131
970100
981212
902305
309319
(included in Last Aid Bag)
305131
305150
305121
FRONT MULTI-DIFF
NOT INCLUDED IN US KITS
30 5002 ALU BALL DIFF. WITH LABYRINTH COVERS™
30 5040 SCREW FOR EXTERNAL DIFF ADJUSTMENT - HUDY SPRING STEEL
30 5050 DIFF PULLEY 34T WITH LABYRINTH DUST COVERS
30 5082 DIFF WASHER 17x23x1 (2)
30 5102 XRAY MULTI-DIFF™ T1FK'05, T2
30 5112 MULTI-DIFF MAIN AXLE T1FK‘05, T2
30 5121 MULTI-DIFF LOCKING AXLE - HUDY SPRING STEEL
30 5131 INNER DRIVESHAFT ADAPTER - HUDY SPRING STEEL (2)
30 5150 TIMING BELT PULLEY 34T
30 9319 UNIVERSAL SET OF PLASTIC SHIMS (included in Last Aid Bag)
90 2305 HEX SCREW SH M3x5 (10)
93 0120 CARBIDE BALL 2.4 MM (12)
93 0138 CARBIDE BALL-BEARING AXIAL F3-8 3x8x3.5
93 0508 BALL-BEARING MR85ZZ 5x8x2.5 (2)
96 3030 CONE WASHER ST 3x8x0.5 (10)
96 6080 CH-CLIP 8 (10)
97 0100 O-RING 10x1.5 (10)
98 1212 PIN 2x11.8 (10)

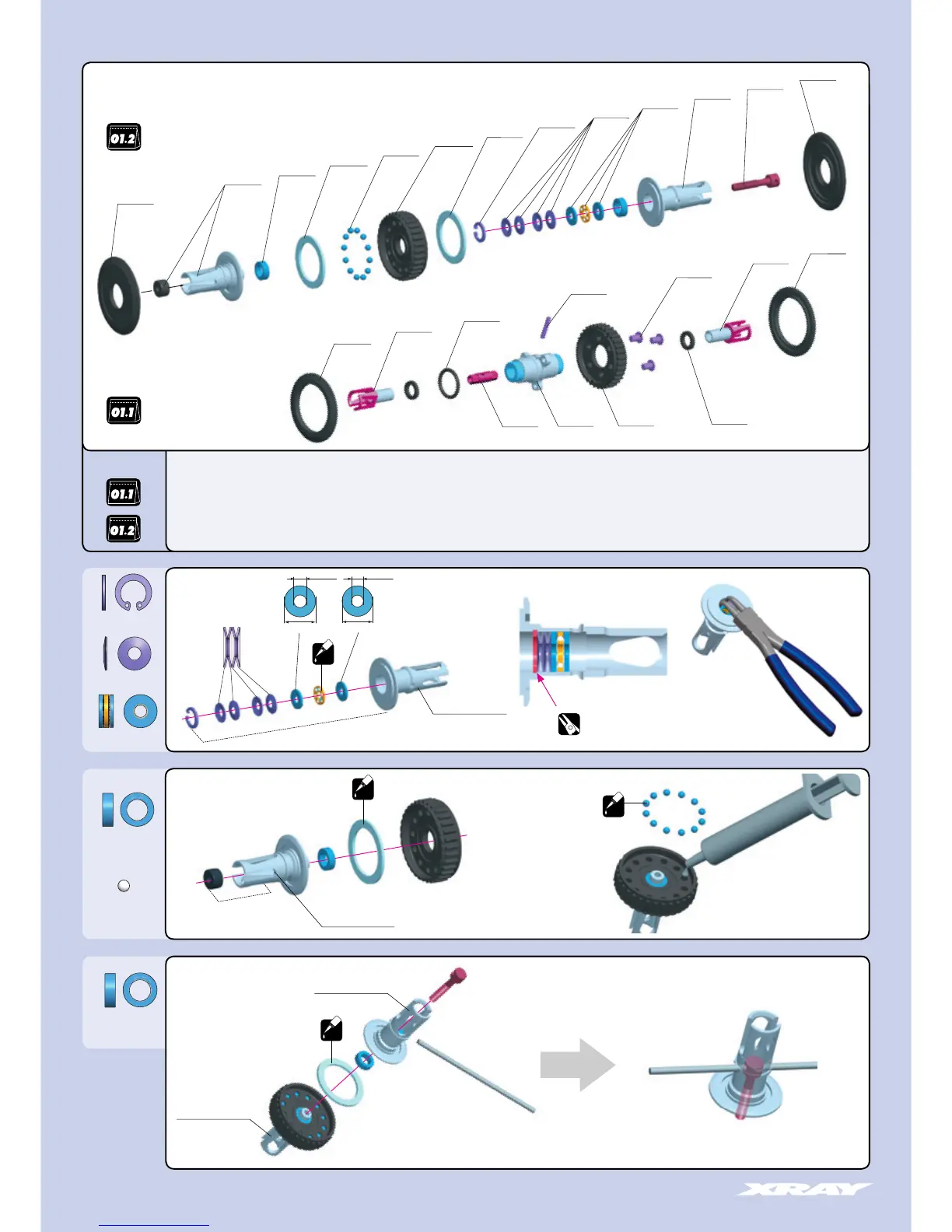

1. BALL DIFFERENTIAL & FRONT MULTI-DIFF ™
8.0 mm
3.2 mm
7.8 mm
3.0 mm
FACTORY PREASSEMBLED
LONG DIFF SHAFT
SHORT DIFF SHAFT
BAG
930508
BB 5x8
SHORT DIFF SHAFT
LONG DIFF SHAFT
CUTAWAY VIEW
GR
GR
GR
GR
Insert CH-clip into the groove with nose pliers
CUTAWAY VIEW
