930508
BB 5x8x2.5
930120
B 2.4
941014
BB 10x15x4
DIFF GREASE
(HUDY #106211)
Square shape orientation on TOP side.
Round shape orientation on BOTTOM side.
NOTE ORIENTATION
2.0mm
THREAD LOCK
DIFF GREASE
(HUDY #106211)
CUTAWAY
VIEW
2.0mm
DIFF GREASE
(HUDY #106211)
BEARING OIL
(HUDY #106230)
OIL
2.4mm carbide balls (12x)
DIFF GREASE
(HUDY #106211)
NOTE ORIENTATION
9

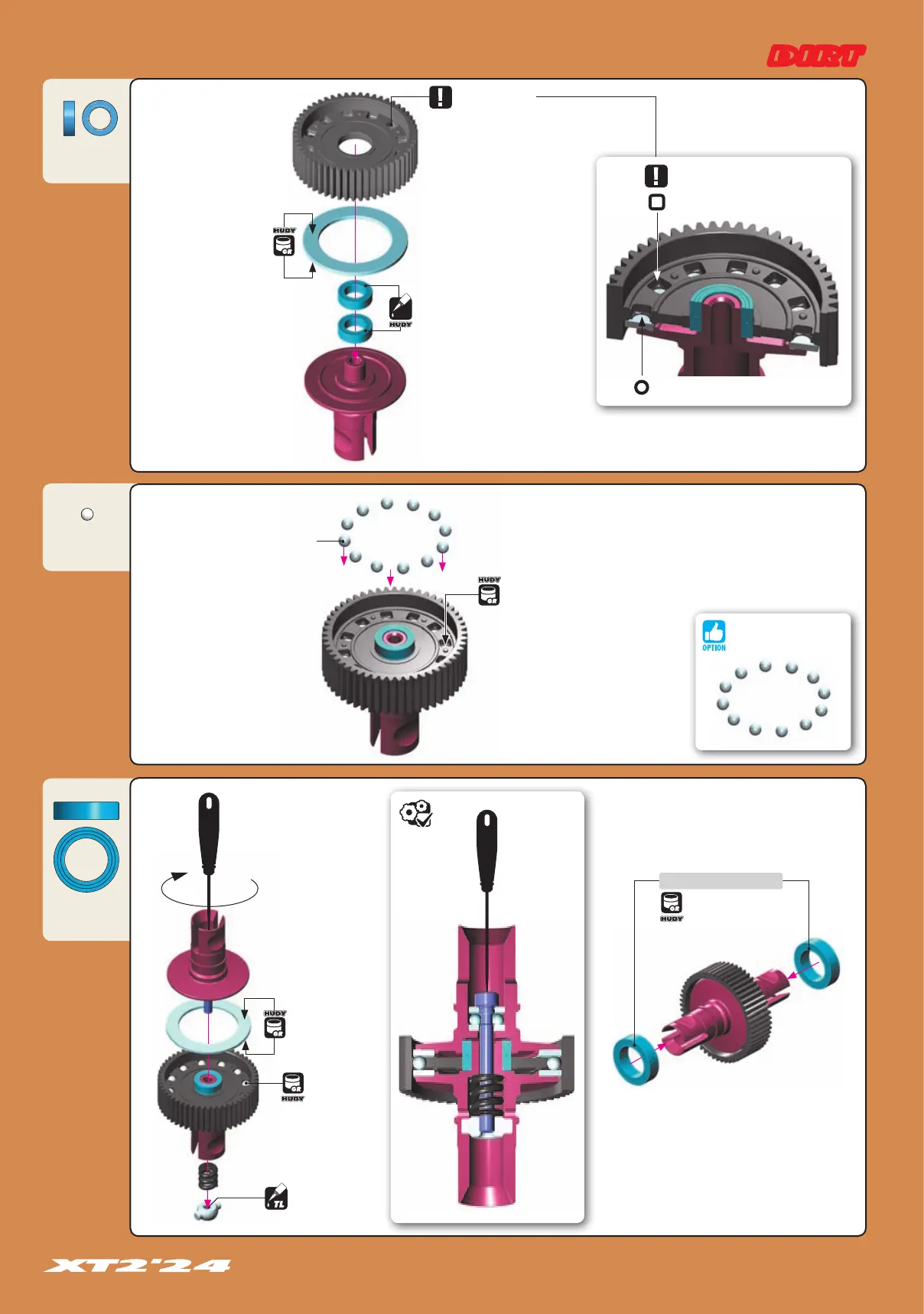

1. BALL DIFFERENTIAL
DIRT
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
#930220
CERAMIC BALL 2.4MM (12)
2x
12x
2x
