REMOTE
GROUND
+ 12 V
YELLOW LED
LOW IMPEDANCE
ORANGE LED
THERMAL PROTECT
RED LED
POWER ON
ONE TWO
ONE TWO
-20 -10 0 +10 +20
FAN
PLENUM
SPEAKER OUTPUT TERMINALS: THE 302AIS2-CHANNEL AMPLIFI-
ER WITH TWO SETS OF SPEAKER TERMINALS. THE “PASSIVE” TERMI-
NALS ARE NOT FUNCTIONAL UNLESS AN RM MODULE IS INSTALLED.
REMOTE SWITCHED 12 VOLTS
16 GAUGE OR LARGER
GROUND – 8 GAUGE OR LARGER
POWER
– 8 GAUGE OR LARGER
AMPLIFIER GAIN CONTROLS:
TURN CLOCKWISE TO INCREASE GAIN
XTANT TECHNOLOGIES 7676 SOUTH 46TH STREET PHOENIX, ARIZONA 85040 PHONE: 888.449.8268 FAX 602.431.8600
OUTPUTS
INPUTS
+ – + –
+ – + –
PASSIVE SPEAKERSMAIN SPEAKERS
CHAN 1
CHAN 2
PASSIVE SPEAKER ATTENUATION / RM MODULE PORT THE RM 4, 8,12 &
16
RESISTOR MODULES MAY BE INDIVIDUALLY INSERTED INTO THE RM MODULE
PORT TO ACTIVATE THE
“PASSIVE SPEAKER TERMINALS”. THE AMOUNT OF SERIES
RESISTANCE
, ADDED BY THE MODULE, WILL DECREASE THE LEVEL OF THE
SPEAKERS
(CONNECTED TO THE “PASSIVE TERMINALS”) BY -4, -8, -12 OR -16
dB.
THE “PASSIVE TERMINALS” ARE CONNECTED, IN PARALLEL, VIA THE RM MOD-
ULE TO THE MAIN SPEAKER TERMINALS.
AMPLIFIER ACCESSORY PORTS
LINE OUTPUT ACCESSORY PORT
CM 24X,PQM-1, LFQ-45,
CM 12HP & CM 12LP
LFQ-45, CM 12HP
& CM 12LP
ONLY
LFQ-45, CM 12HP
& CM 12LP
ONLY
BRIDGED
CONNECTION
WARNING: ADD A 50
AMP FUSE AT THE POSITIVE
TERMINAL OF THE BATTERY.
IF MULTIPLE AMPS ARE
BEING USED, THE FUSE
VALUE SHOULD EQUAL THE
COMBINED TOTAL DEMAND
OF ALL AMPLIFIERS IN THE
SYSTEM
INSTALLER’S
REFERENCE
..............
XTANT 302A
..............
CAUTION: SHARP EDGES
BE CAREFUL WHEN HANDLING TOP
AND BOTTOM METAL
.
CAUTION: THE
302a IS NOT FUSE PROTECTED!
FOR SAFTEY, AN OUTBOARD 50 AMP FUSE MAY BE ADDED CLOSE TO THE
AMPLIFIER
. A 50 AMP FUSE MUST BE INSTALLED IN-LINE WITH THE POWER
WIRE AT THE BATTERY.
INSTALLATION/ADJUSTMENT SEQUENCE
REMOVE AMPLIFIER COVER. DO NOT REMOVE PROTECTIVE COVER-
ING UNTIL INSTALLATION IS COMPLETE.
TEMPORARILY MOUNT AMPLIFIER. T
HE AMPLIFIER IS DESIGNED TO
BE ANCHORED THROUGH THE FOUR HOLES LOCATED ON THE CIRCUIT
BOARD
/BASE ASSEMBLY.
MARK WIRES FOR TERMINATION. D
ETERMINE WIRE LENGTHS FOR
POWER, GROUND, REMOTE, & SPEAKER CABLES. MARK FOR CUTTING/TER-
MINATION. REMOVE 302a. CUT AND TERMINATE ALL WIRES. CAUTION:
STRIPPING WIRES OVER THE CIRCUIT BOARD MAY CAUSE
PRODUCT FAILURE.
① BALANCED INPUTS: MAKE ALL INITIAL ADJUSTMENTS AT YOUR WORK
BENCH
. TO SELECT “BALANCED INPUT” FOR OEM INTEGRATION OR INDUC-
TIVE NOISE CANCELLATION, MOVE THE JUMPER, LOCATED ABOVE AND TO THE
LEFT OF THE
RCA INPUT CONNECTORS TO THE “ENABLE” POSITION.
② INPUT GAIN: THE INPUT GAIN IS FACTORY PRESET AT +10dB AND WILL
WORK WITH AN INPUT SIGNAL OF
300MV TO 1 VOLT. TO INCREASE THE GAIN,
MOVE THE JUMPER TO THE +20 dB POSITION. TO DECREASE INPUT GAIN,
PLACE JUMPER IN THE 0, -10, OR -20 dB POSITION.
➂ INSTALL ACCESSORY MODULES. AT YOUR BENCH, ADJUST
CROSSOVER MODE JUMPERS AND CHANGE CROSSOVER FREQUENCY
SIP’S .
REMOVE PORT JUMPERS AND INSTALL MODULE(S) – OBSERVE “KEY” ON CON-
NECTOR FOR PROPER FIT. ADJUST PQM-1 OR LFQ 45 EQ MODULES AFTER
AMP IS MOUNTED
.
➃ MOUNT THE AMPLIFIER AND CONNECT SPEAKERS. TWO
PAIRS OF SPEAKER TERMINALS ARE PROVIDED
. THE ATTENUATION FUNCTION OF
THE TERMINALS LABELED
⑤ “PASSIVE” IS ONLY ACTIVATED WHEN XTANT’S “PAS-
SIVE ATTENUATION BOARDS” – RM 4, RM 8, RM 12 OR RM 16 ARE INSTALLED.
MAKE REMAINING CONNECTIONS. D
OUBLE CHECK ALL CONNEC-
TIONS! TURN ON AMPLIFIER. CHECK RED LED, IT SHOULD BE ON. IF ANY
OTHER ADJUSTMENTS NEED TO BE MADE
(CROSSOVER MODULES/INPUT GAIN
ADJUSTMENT
) THE ➅ “REMOTE TURN ON” JUMPER MAY BE USED TO TURN
THE AMP OFF
. MAKE ADJUSTMENTS AND PLACE JUMPER IN THE ENABLE POSI-
TION TO TURN THE AMP BACK ON.
➆ ADJUST OUTPUT GAIN TO SET SYSTEM LEVEL.
AFTER FINE TUNING THE SYSTEM,
REMOVE PROTECTIVE COVERING
AND SPRAY A LIGHT COATING OF
WD40
™
ON A SOFT CLOTH AND CLEAN COVER.
SERVICE JUMPER: REMOVING JUMPER WILL TURN-OFF
AMPLIFIER WHEN REMOTE TURN
-ON, GROUND AND +12
VOLT CABLES ARE CONNECTED TO AMPLIFIER. USE TO
SERVICE
/ADJUST AMPLIFIER WHEN IN USE.

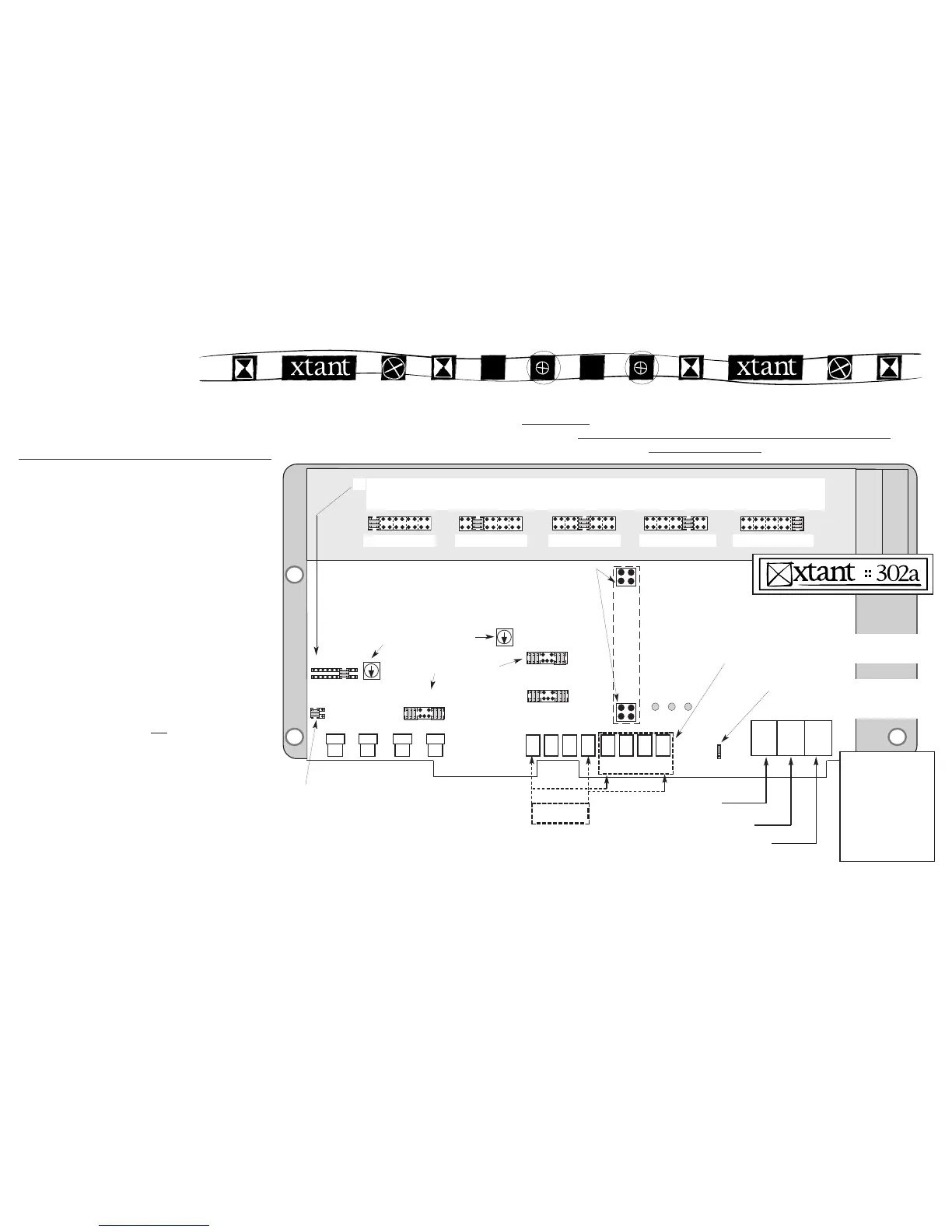

INPUT GAIN: TO ADJUST INPUT GAIN, MOVE JUMPER AND INSTALL IT IN THE LOCATION WHICH MATCHES YOUR INPUT SIGAL
LEVEL
. REFER TO THE ILLUSTRATION BELOW FOR PROPER JUMPER LOCATION / LEVEL SETTING.
NOTE: –20 dB = 10V – 17V IS ONLY TO BE USED WITH BALANCED INPUT FROM A BALANCED SOURCE. (IE: FOATING GROUNG OUTPUT)
–20 dB = 10V – 17V
–10 dB = 3V – 8V 0 dB = 1V – 3V +10 dB = 300mV–1V +20 dB = 100 – 300mV
BALANCED INPUT: TO ENABLE THE BALANCED LINE, PLACE
THE JUMPER ON THE LEFT AND CENTER SET OF PINS
. TO DIS-
ABLE, REMOVE JUMPER AND PLACE IT ON THE CENTER AND
RIGHT SET OF PINS
. OBSERVE THE LABELING ON THE CIRCUIT
BOARDS
.
①
②
➅
➂
➂
➆
⑤
➃
RM MODULE MUST BE
INSTALLED TO ACTIVATE
