Charging Time (H)
Notice:
1) The XTAR 4150mWh 1.5V Li-ion battery integrates an intelligent charge-discharge management chip. The voltage
curve depicted in this illustration is the summation of externally supplied voltage and the battery integrated
charging circuit’s voltage.
2) Specifically designed TC-CC-CV charging method for xtar 1.5V Li-ion batteries on L4. For the internal cell, trickle-
charge (TC): 2V-2.9V; constant-current stage (CC): 3V-4.1V; constant-voltage stage (CV): 4.1V-4.2V

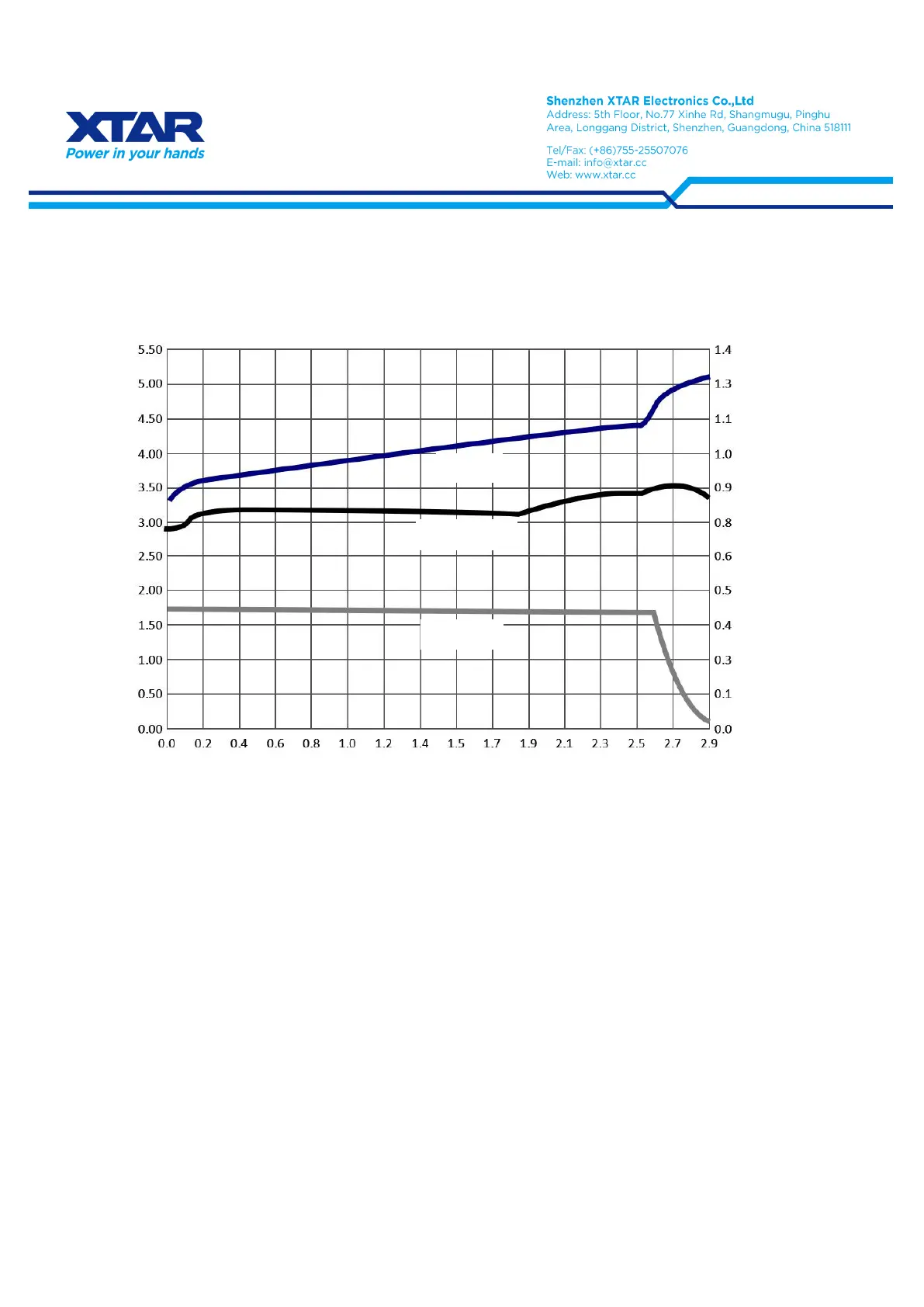

XTAR 1.5V 4150mWh Li-ion AA charge characteristics (500mA) - TC/CC/CV
Voltage(V)/Temp. (℃) reduced by 10 times
Current (A)
Voltage
Temperature
Current
