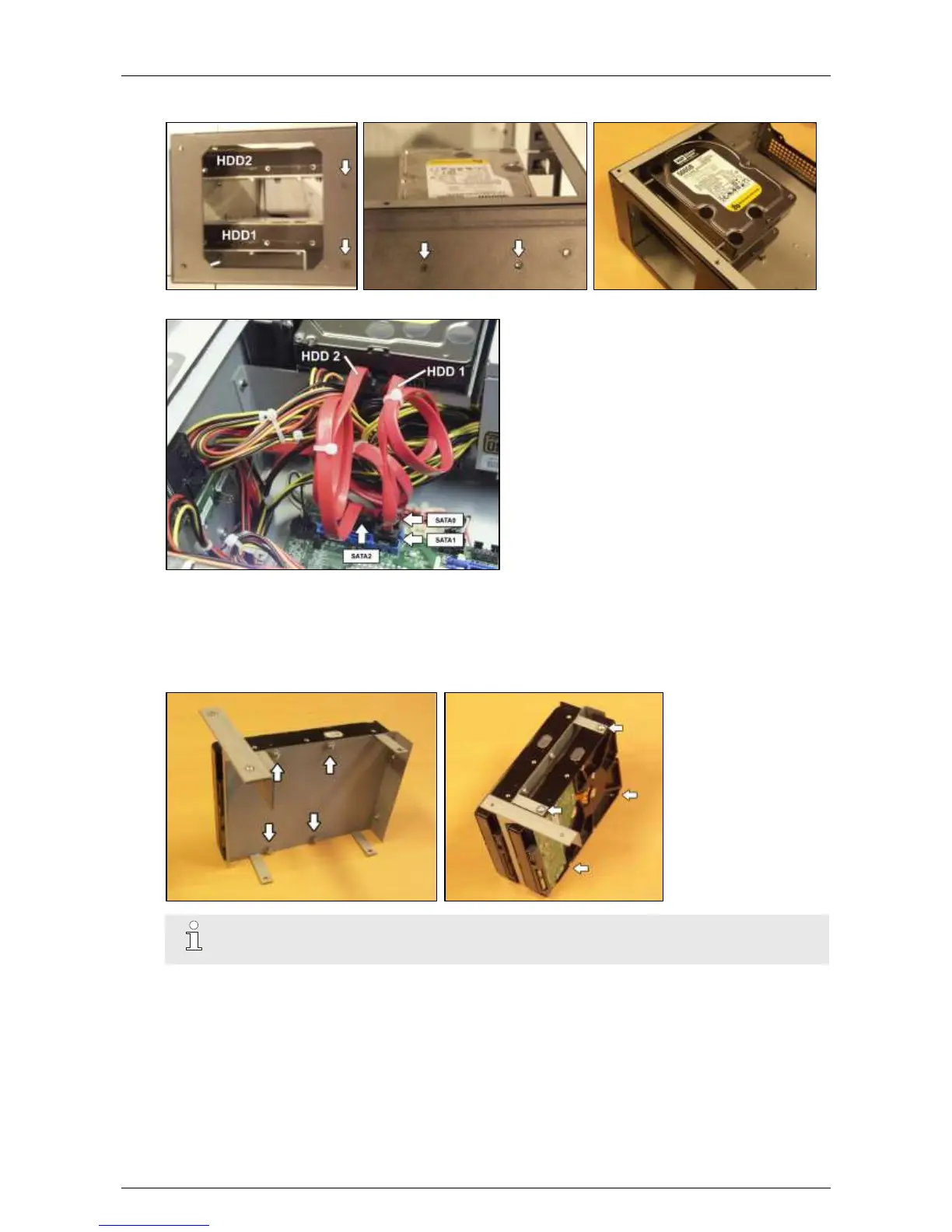

3. Fix the support to the casing with 4 screws (#17439080): 2 at the front, and 2 at the left side of the
casing.
4. Connect the disk to the SATA2 connector on the motherboard with the SATA cable (#1652087*).
5. For the power supply to the disk, connect the remaining SATA power connector on the power cable of
disk 1 (not the one on the tail end; that one is reserved for the D.O.M.) to the disk.
6. If you need to add more disks, continue with the next step.
If you do not need to add more disks, continue with step 12.
7. Fix the third disk on the top side of the support for disk 3 and 4. If necessary, fix the fourth disk on the
bottom side of the same support.
