(1) 1x XTRIG Rocs Pro upper triple clamp
(2) 1x XTRIG Rocs Pro lower triple clamp
(3) 1x XTRIG Pro steerer tube with eccentric adjustment
(4) 1x adjusting nut
(5) 1x locking bolt
(6.1)1x tapered roller bearing
(6.2) 1x bearing shell
(7) 2x bolts M8x20 AF=6
(8) 1x bolt M8x25 AF=10
(9) 8x bolts M8x40 AF=10
(10) 1x O-ring or 1x sealing ring, depending on model

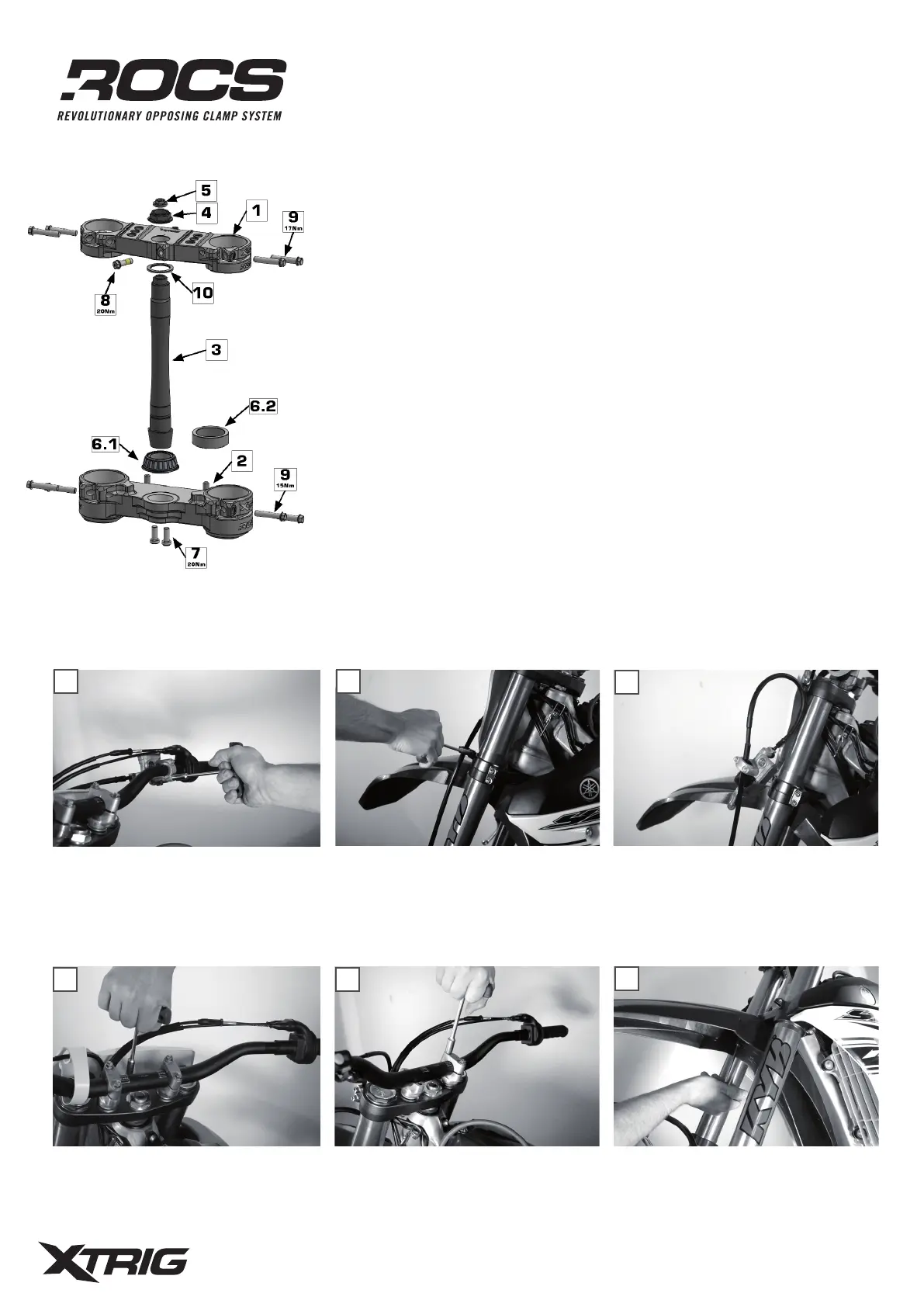

MOUNTING INSTRUCTIONS
Scope of Supply:
XTRIG ROCS PRO TRIPLE CLAMP MOUNTING INSTRUCTIONS
These instructions may differ in individual details depending on the model.
Basically, the installation of the triple clamp is described and the adjustment of
the offset is shown.
PREPARATIONS:
Support the cleaned motorcycle on the frame so that the front wheel is raised.
REMOVING THE FACTORY TRIPLE CLAMP:
Dismantle start number plate depending on
model
Dismantle brake line guide.
Dismantle handlebars and any fastening
such as cable ties
Mount brake pump on brake line
Dismantle fender
Dismantle brake pump
1. 2.
3.
5.4.
6.
