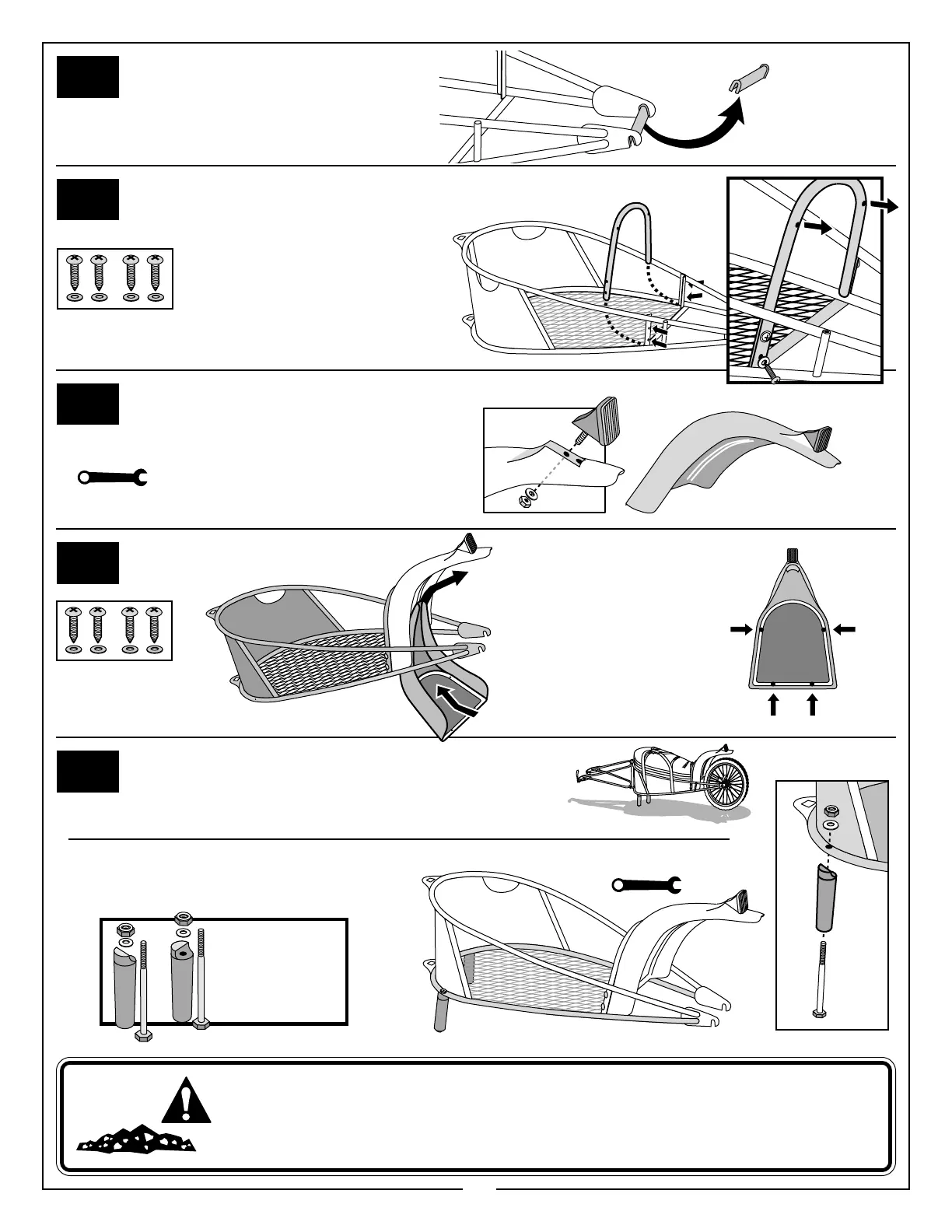

Attach parking feet to the trailer basket.
The parking feet enable the trailer to stand alone when
separated from the bike.
L
R
Attach the fender to
the basket.
5
3
Attach the hoop to the basket frame.
4
Attach the reflector to the fender.
• Insert the reflector bolt into the
hole in the fender.
• Attach a washer and a nut.
• Use a wrench to tighten the nut.
“L” = left
“R” = right
R
L
• Insert the fender from
below the frame.
• Align the holes in the
fender to the holes in
the hoop.
• Use a Phillips
screwdriver to tighten
the screws.
8mm
10 mm
2
ASSEMBLE THE TRAILER:
You could throw
it away, but it’s
really great for
holding
chopsticks!
There is a right foot and a left foot fitted to the frame.
Use a wrench to tighten the nuts.
OFF ROAD USERS:
When traversing deep gullies and large rocks, parking feet may come in contact
with obstacles on the trail. The feet are designed to be removed easily with a
10mm wrench, so take ‘em off if you expect to get radical.
• Align the two pairs of holes on
each side of the frame to the holes
in the hoop.
• Upper holes MUST face away from
trailer basket.
• Use a Phillips screwdriver to
tighten the screws.
Remove the spacer
from the trailer
dropouts.
