Yale CPA Series - Page 22

22

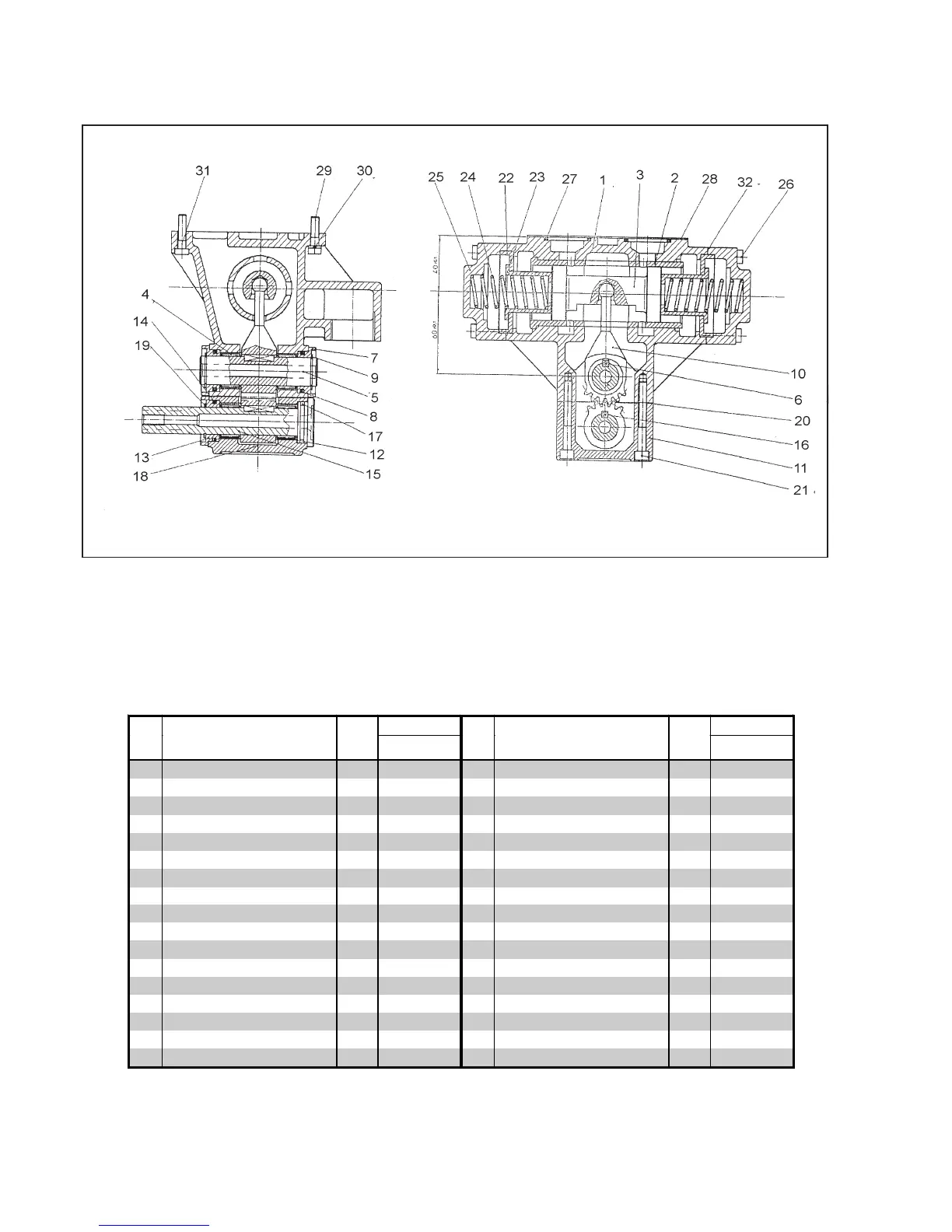

Fig. 23: Rope control
Yale-Part. No Yale-Part. No
No Description Qty.
for all units
Description Qty
for all units
Rope control unit 1 17 Square ring 1 00800064
1 Housing assy. 1 00800059 18 Control gear 1 00800068
2 Reversing bushing 1 00800060 19 Retaining ring 1 09129025
3 Reversing piston 1 00800061 20 Seal 1 00800069
4 Needle bearing 2 09153096 21 Screw 6 09102175
5 Shaft l 1 00800062 22 Centring ring 2 00800070
6 Key 1 09131025 23 Spring guide 2 00800071
7 Seal bushing 2 00800063 24 Spring 2 00800072
8 Square ring 2 00800064 25 Plug 2 00800073
9 Retaining ring 2 09129025 26 Screw 8 09102061
10 Toggle 1 00800065 27 O-Ring 2 09171171
11 Housing 1 00800066 28 Seal 1 00800074
12 Needle bearing 2 09153096 29 Lockwasher 3 09122031
13 Seal bushing 1 00800063 30 Screw 3 09102040
14 Square ring 1 00800064 31 Screw 3 09102169
15 Shaft II 1 00800067 32 Seal 2 00800075
16 Key 1 09131025
