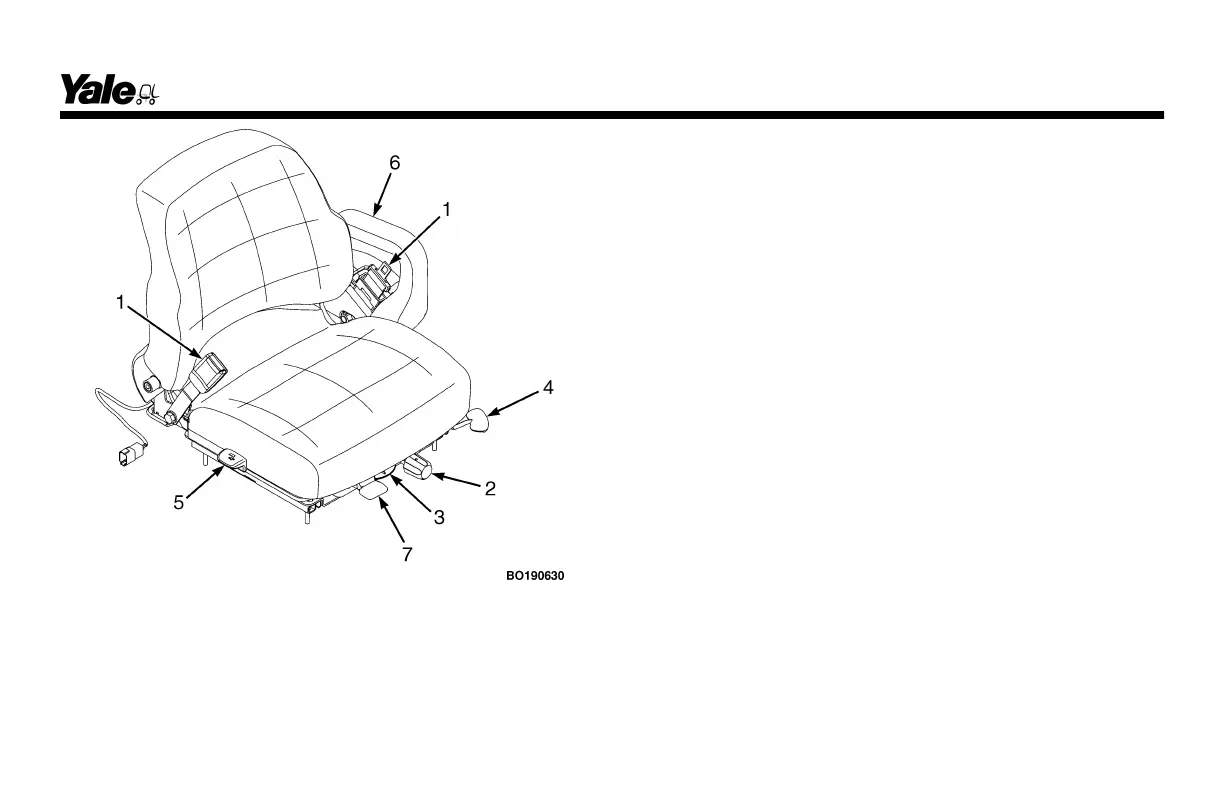

Figure 11. Seat Adjustment - Internal Suspension
Legend for Figure 11
1. SEAT BELT
2. WEIGHT ADJUSTMENT KNOB
3. RIDE POSITION INDICATOR
4. FORWARD/BACKWARD ADJUSTMENT LEVER
5. BACKREST ANGLE ADJUSTMENT LEVER
6. ARMREST
7. SWIVEL LATCH RELEASE LEVER
4. ADJUST SEAT - FULL SUSPENSION.
Seat Position Adjustment (Standard Seat)
• Fore and aft adjustment – it is recommended that the seat
be adjusted so that the thigh is horizontal to the ground so
that the best ergonomic position is achieved. See Fig-
ure 12.
Seat Position Adjustment (Swivel Seat)
• The seat swivels 12 degrees to the right to allow the oper-
ator a more ergonomic position when driving in reverse.
• The seat swivels 5 degrees to the left to allow an easier
exit of the truck.
• The neutral position is shown in Figure 12.
Operating Procedures
77
