53
SRM-420ES, SRM-420TES
T410S, B410S
T410TS, B410TS
CUTTER DRIVE SYSTEM
53

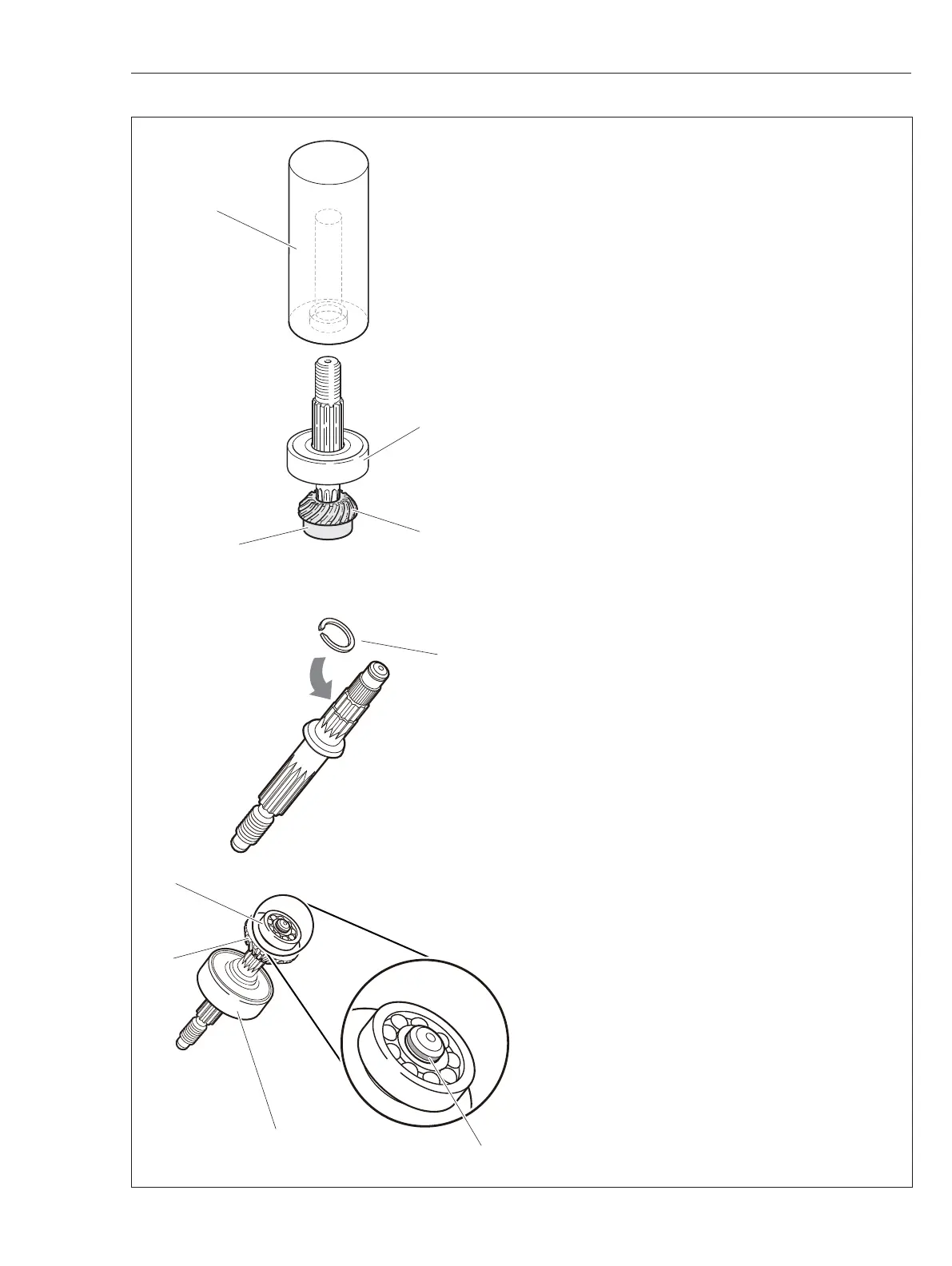

7-3 Replacing gears and PTO shaft (continued)
For SRM-420ES, T410S and B410S
5. Install a new ball bearing (M) to PTO shaft us-
ing oil seal tool 897714-24330 (F).
6. Install a new driven gear (N) to PTO shaft.
7. Insert PTO shaft in a new ball bearing (P) until
the end of shaft is fl ush with bearing.
For SRM-420TES, T410TS and B410TS
5. If retaining ring (L) is defective, replace with a
new one.
6. Install a new ball bearing (M) to PTO shaft us-
ing oil seal tool 897714-24330 (F).
7. Install a new driven gear (N) to PTO shaft.
8. Install a new ball bearing (P) to PTO shaft un-
til it becomes slightly lower than groove (Q) as
shown.
9. Install new retaining ring to the groove (Q).
L
N
M
P
F
Q
P
M
N
To Next Page
