YAMADA NDP-25 Series User Manual

15
1.7
1.71.7
1.7 NDP
NDPNDP
NDP-
--
-5
55
50
00
0 series
series series
series

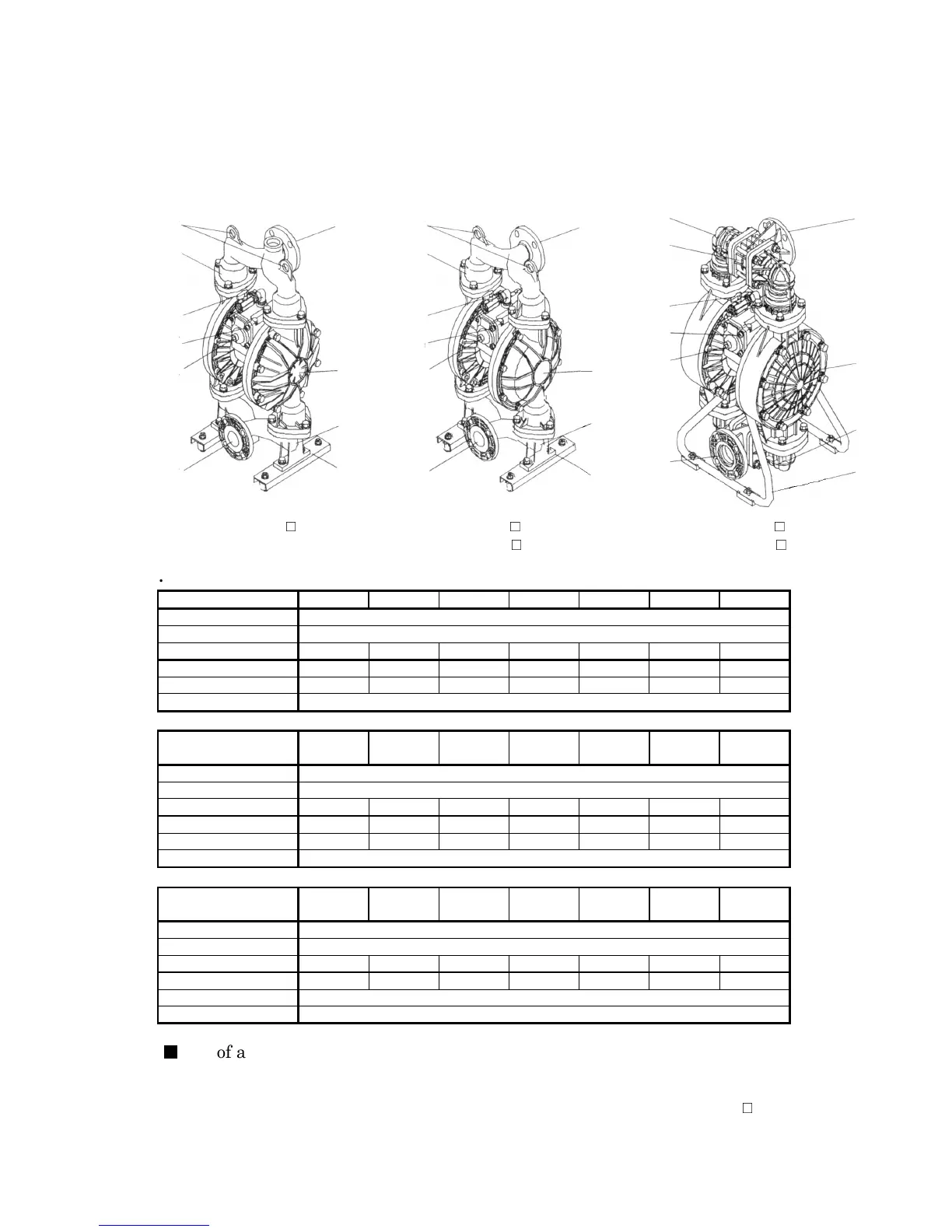

A: Air Valve F: Pump Base (Stand)
B: Reset Button G: Discharge Port
C: Out Manifold H: Intake Port
D: Out Chamber I: Lift Point
E: In Manifold J: Ground Connection Point
NDP-50BA □ NDP-50BS □ NDP-50BP □
NDP-50BF □ NDP-50BV □
•Aluminum type
Type BAC BAN BAE BAV BAT BAH BAS
Switching Portion ADC12
Fluid contact Portion ADC12
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat CR NBR EPDM FPM A5056 TPEE TPO
Center Disk A5056
•Stainless-steel type ([ ]: Cast iron type)
Type BSC
[BFC]
BSN
[BFN]
BSE
[BFE]
BSV
[BFV]
BST
[BFT]
BSH
[BFH]
BSS
[BFS]
Switching Portion ADC12
Fluid contact Portion SCS14 [FC250]
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat CR NBR EPDM FPM SUS316 TPEE TPO
Center Disk SUS316
•Polypropylene type ([ ]: Polyvinylidene fluoride type)
Type BPC BPN BPE
[BVE]
BPV
[BVV]
BPT
[BVT]
BPH BPS
[BVS]
Switching Portion ADC12
Fluid contact Portion PPG [PVDF]
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat PP [PTFE]
Center Disk PPG (SCS13) [PVDF(SCS13)]
■
■■
■ List of accessories
List of accessoriesList of accessories
List of accessories
•Operation Manual·························1
•Maintenance Manual·····················1
•Bolt············································4 (for securing the pump with the cushions, excluding BP □ type.)
A
B D
E
F
G
H
J
C
I
A
B
D
E
F
G
H
J
C
I
A
B D
E
F
G
H
J
C
I
