3-24

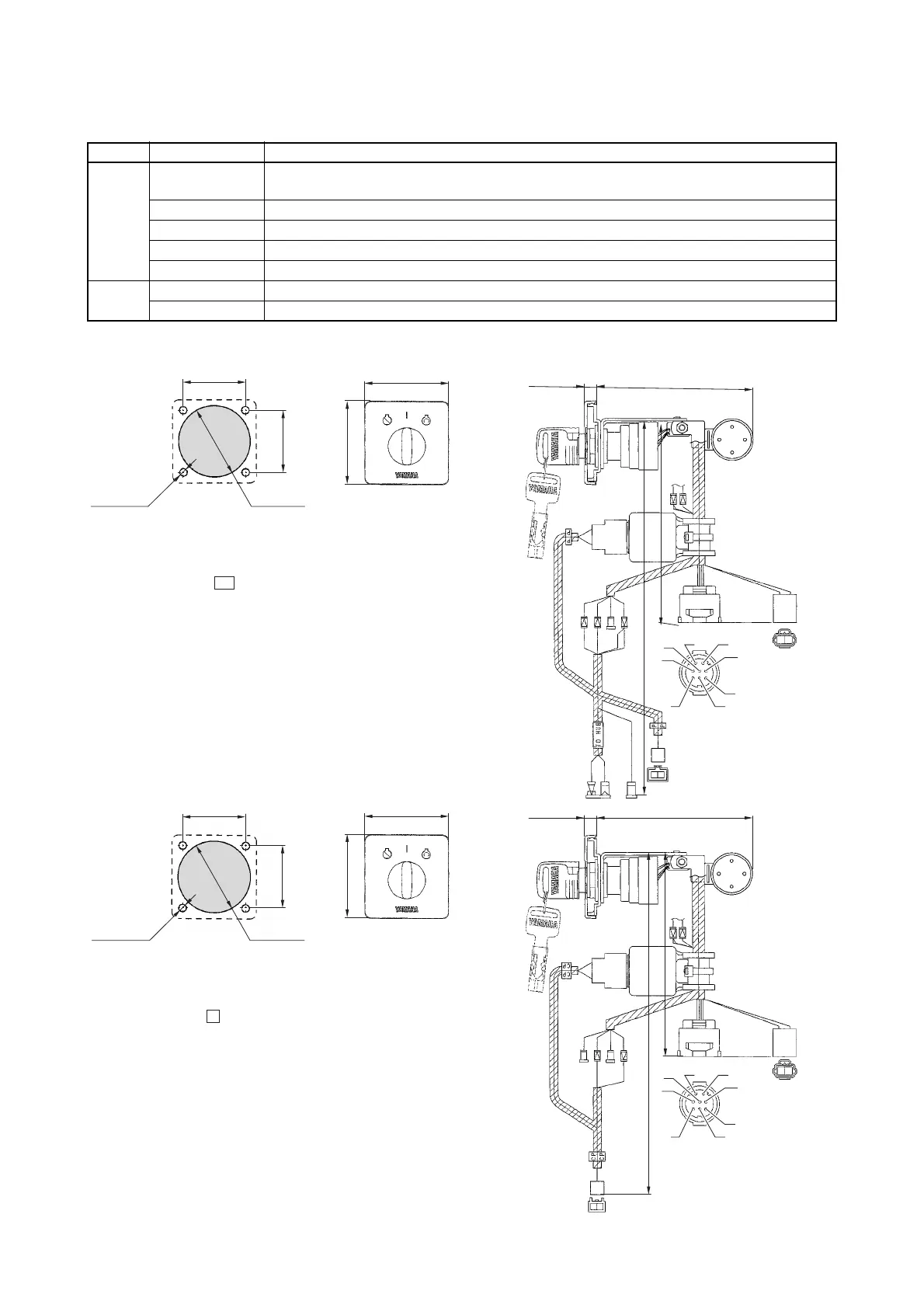

REMOTE SWITCH TYPES AND APPLICATIONS

QUAD IG SWITCH

Ref. No. Part No. Description

6X6-82570-M2

For Digital Network System (6Y9), Main station helm, Assembly for P, CP, CS and S as

below*

*6X6-82570-R2 For P engine

*6X6-82570-S2 For CP engine

*6X6-82570-T2 For CS engine

*6X6-82570-U2 For S engine

6X6-82570-J0 For Digital Network System (6Y9), 2nd station helm, P/CP engine

6X6-82570-K0 For Digital Network System (6Y9), 2nd station helm, CS/S engine

63 (2.48)

47 (1.85)

5.6 (0.22) 54 (2.13)

P/ CS SW PANEL

EX: P SW panel

(*1) CS SW panel has CS mark.

63 (2.48)

47 (1.85)

5.6 (0.22) 54 (2.13)

47 (1.85)

CP/ S SW PANEL

EX: CP SW panel

(*1) S SW panel has S mark.

mm (in.)

116.5 (4.59)9 (0.35)

140 (5.51)

665 (26.2)

(*1)

116.5 (4.59)

9 (0.35)

140 (5.51)

595 (23.4)

(*1)
